Built for Dependable Machinery Protection

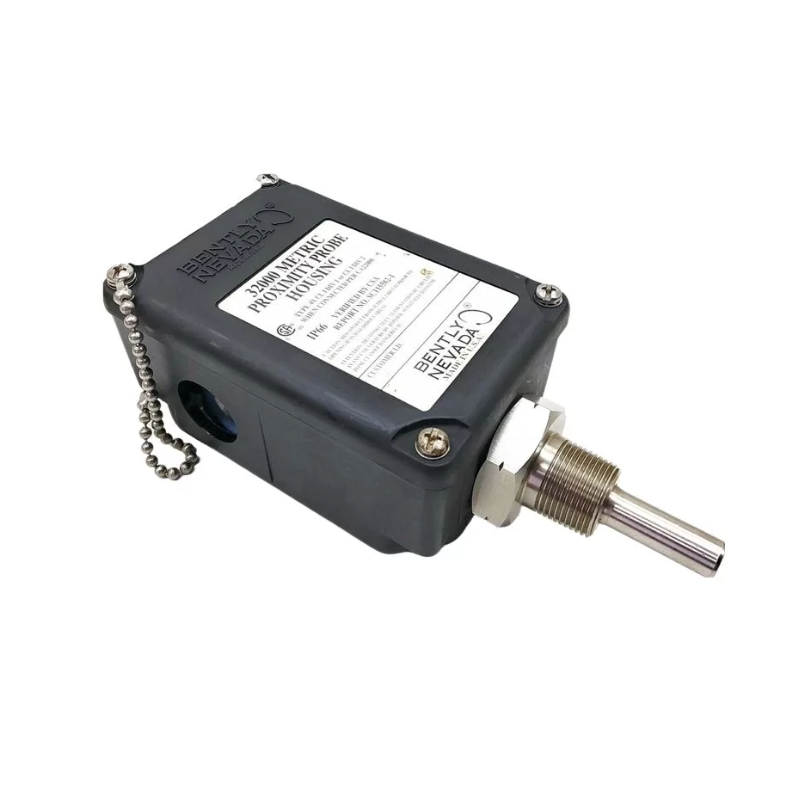

The Bently Nevada 32000-16-05-05-080-03-02 Proximity Probe Housing is engineered to provide secure installation and long-term protection for proximity probes used in rotating machinery monitoring systems. As part of the 32000 Metric Proximity Probe Housing Series, this assembly allows convenient external access for probe adjustment and replacement without disassembling the machine, helping reduce maintenance time and improve equipment availability.
This configuration includes a 3300 XL 8 mm proximity probe, a 0.5 m integral probe cable, a 50 mm standoff adapter, an 80 mm probe penetration, M20 conduit fitting with cable seal grip, and a 3/4-14 NPT mounting thread. Manufactured from glass-reinforced polyphenylene sulfide (PPS) and corrosion-resistant stainless steel components, it is designed for reliable operation in demanding industrial environments.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 32000-16-05-05-080-03-02 |
| Product Type | Proximity Probe Housing |
| Series | 32000 Metric Proximity Probe Housing |
| Installed Probe | 3300 XL 8 mm Proximity Probe |
| Probe Cable Length | 0.5 m (20 in) |
| Standoff Adapter Length | 50 mm |
| Probe Penetration | 80 mm |
| Fittings | Two plugs, one M20 fitting, one cable seal grip with grommets for armored probe cable |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-reinforced PPS with stainless steel components |
| Protection Rating | Type 4X / IP66 (properly assembled) |
| Operating Temperature | -51°C to +105°C |
| Approximate Dimensions | 320 × 91 × 91 mm |
| Approximate Weight | 1.2 kg |
