Reliable Eddy-Current Sensor for Advanced Machinery Monitoring

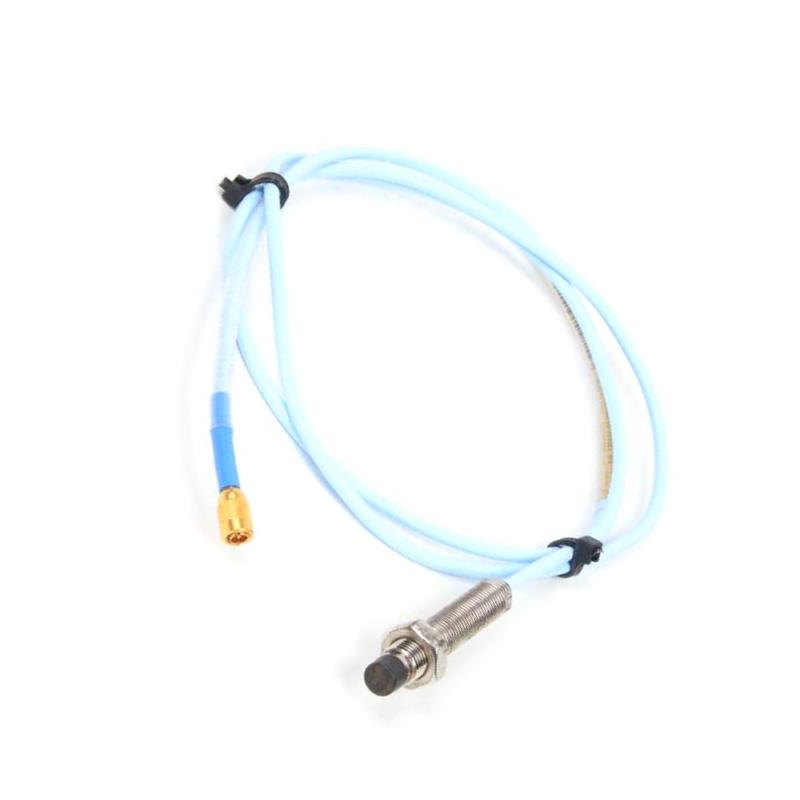

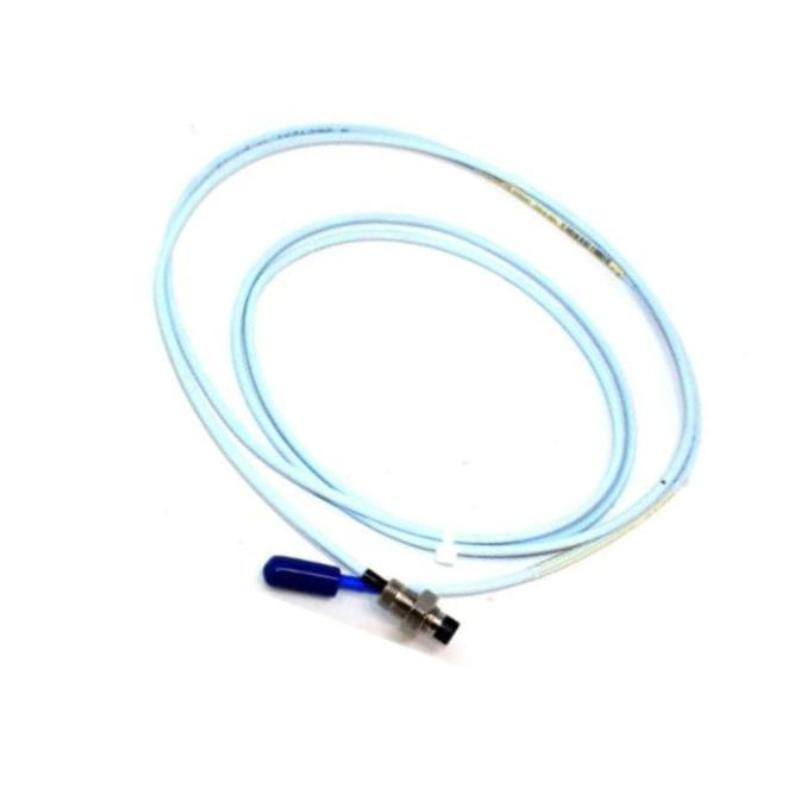

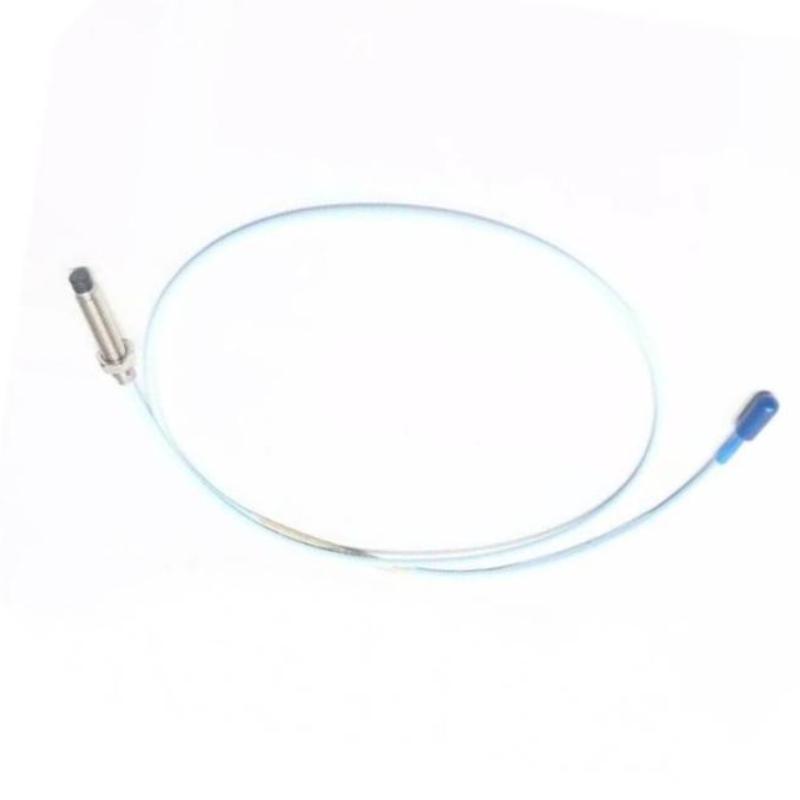

The Bently Nevada 330101-00-20-10-12-00 3300 XL 8 mm Proximity Probe is a precision non-contact displacement sensor designed for continuous monitoring of shaft vibration, radial displacement, axial position, and rotational behavior in critical rotating equipment. As a key component of the 3300 XL 8 mm Proximity Transducer System, this probe delivers stable measurement accuracy and dependable performance for machinery protection, condition monitoring, and predictive maintenance applications.
This configuration features an 8 mm sensing tip, 0.0-inch unthreaded length, 2.0-inch overall case length, 1.0 m (3.3 ft) cable, and a FluidLoc® cable with miniature coaxial ClickLoc™ connector. The design provides enhanced cable protection and reliable signal transmission, making it suitable for industrial environments where long-term monitoring accuracy is essential. The 3300 XL 8 mm system consists of the proximity probe, compatible extension cable, and Proximitor sensor for complete vibration and position measurement.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-20-10-12-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Probe Style | Standard Mount Probe |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 2.0 in |
| Cable Length | 1.0 m (3.3 ft) |
| Cable Type | FluidLoc® Cable |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel |
| Measurement Principle | Eddy Current Non-Contact Sensing |
| Linear Measurement Range | 2.0 mm (80 mils) nominal |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature Range | -52°C to +177°C |
| Approximate Dimensions | 255 × 8 × 8 mm |
| Approximate Weight | 0.32 kg |
