Precision Sensing for Critical Rotating Equipment

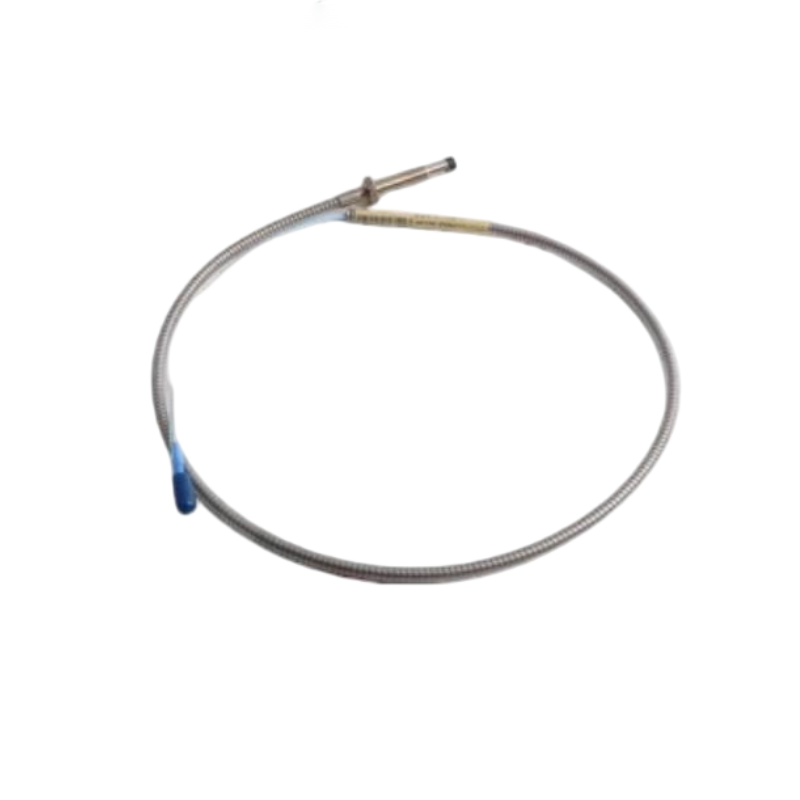

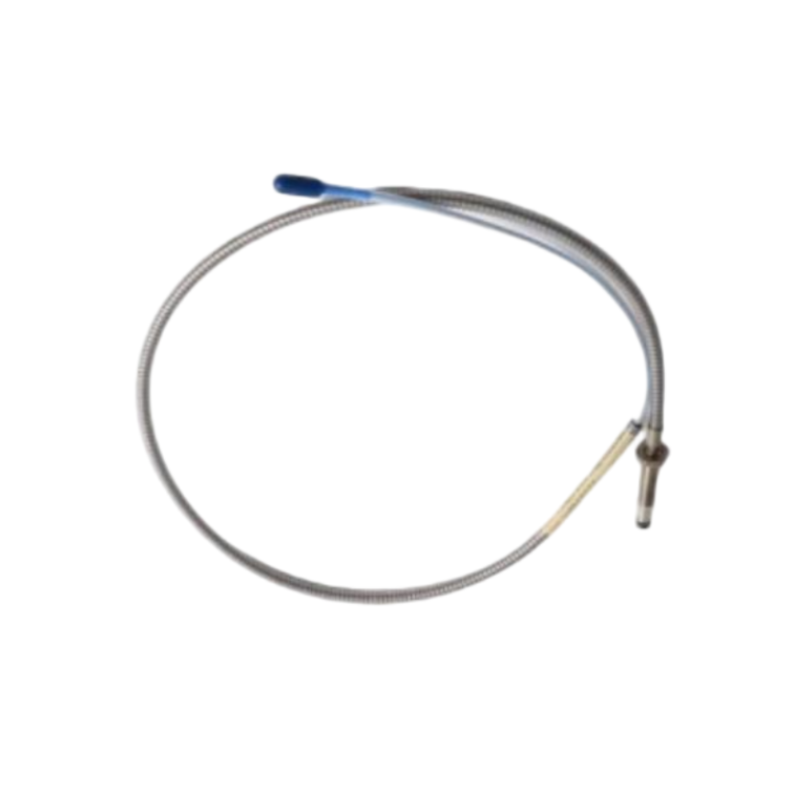

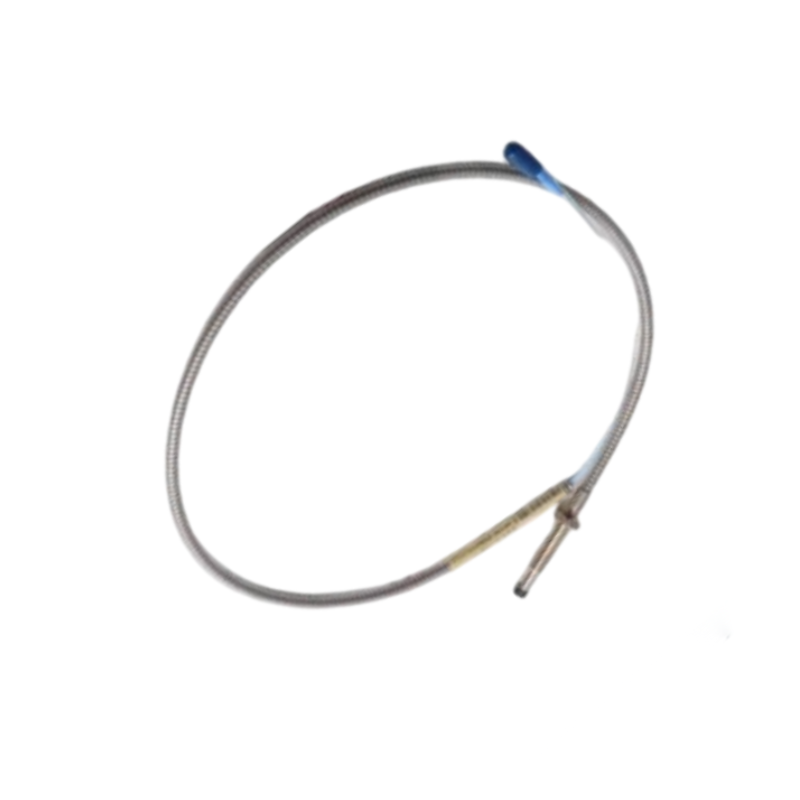

The Bently Nevada 330101-00-18-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact displacement sensor engineered for continuous monitoring of shaft vibration, axial position, shaft movement, and rotational speed in mission-critical rotating machinery. As part of the industry-proven 3300 XL 8 mm Proximity Transducer System, this probe delivers exceptional measurement accuracy, outstanding repeatability, and long-term reliability for machinery protection and predictive maintenance programs.
This configuration features a 0.0-inch unthreaded length, 1.8-inch overall case length, 1.0 m (3.3 ft) standard cable, a 3/8-24 UNF threaded body, a miniature coaxial ClickLoc™ connector, and CSA, ATEX, and IECEx approvals. Built with a stainless steel housing and PPS probe tip, it is designed to perform reliably in demanding industrial environments while integrating seamlessly with compatible 3300 XL extension cables and Proximitor® sensors.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-18-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.8 in |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Mounting Thread | 3/8-24 UNF |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Measurement Principle | Eddy Current, Non-Contact |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -51°C to +177°C |
| Approximate Dimensions | 245 × 8 × 8 mm |
| Approximate Weight | 0.32 kg |
