Engineered for Accurate Shaft Condition Monitoring

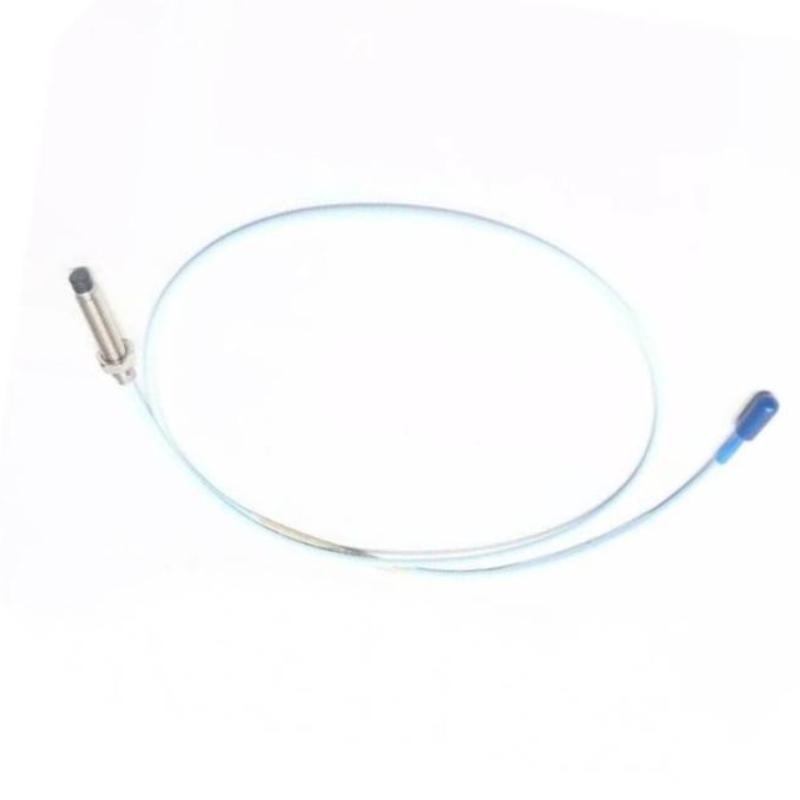

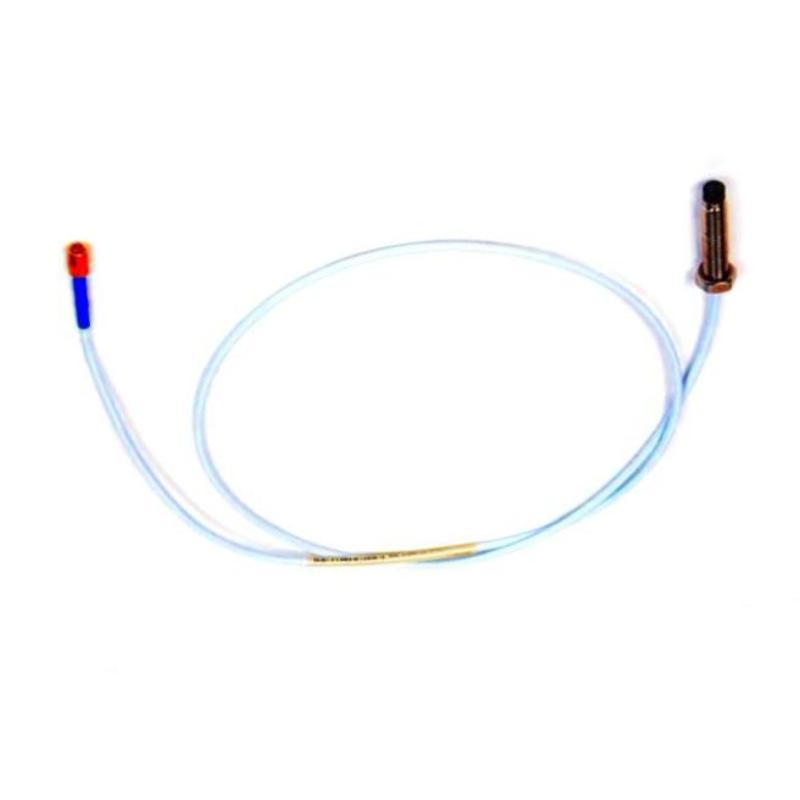

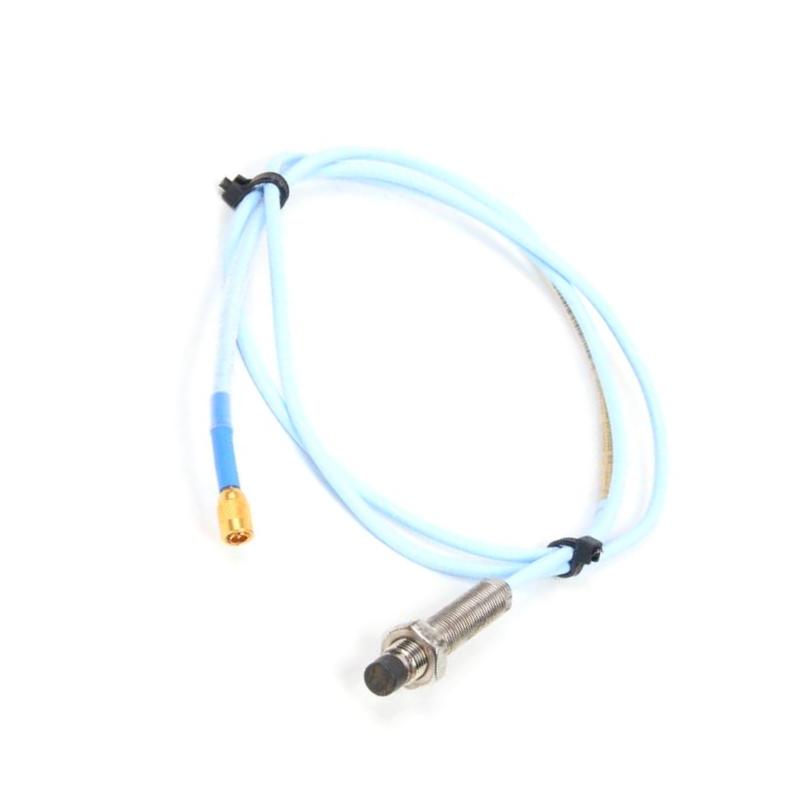

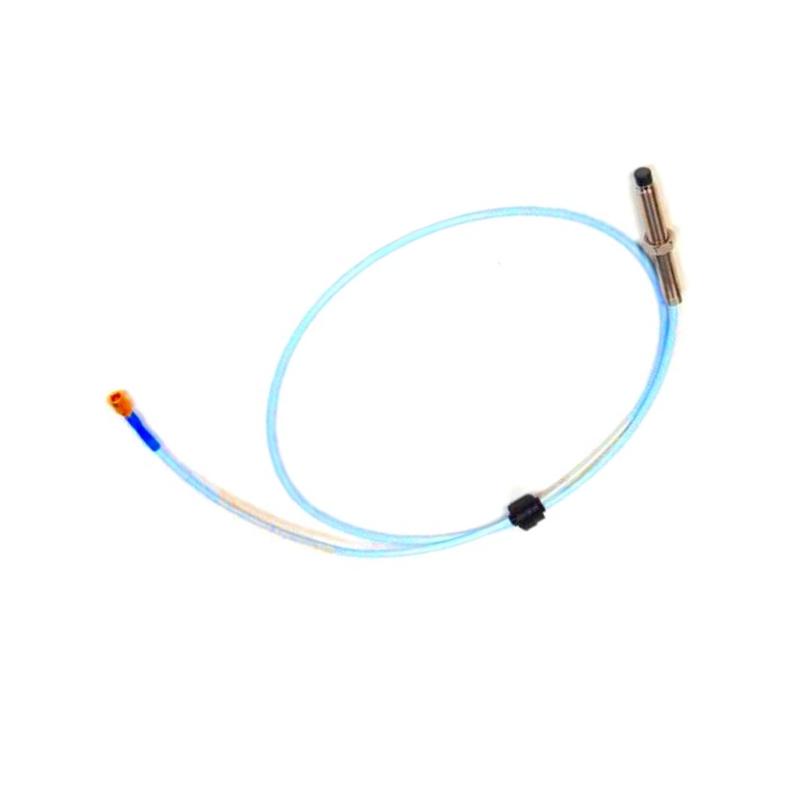

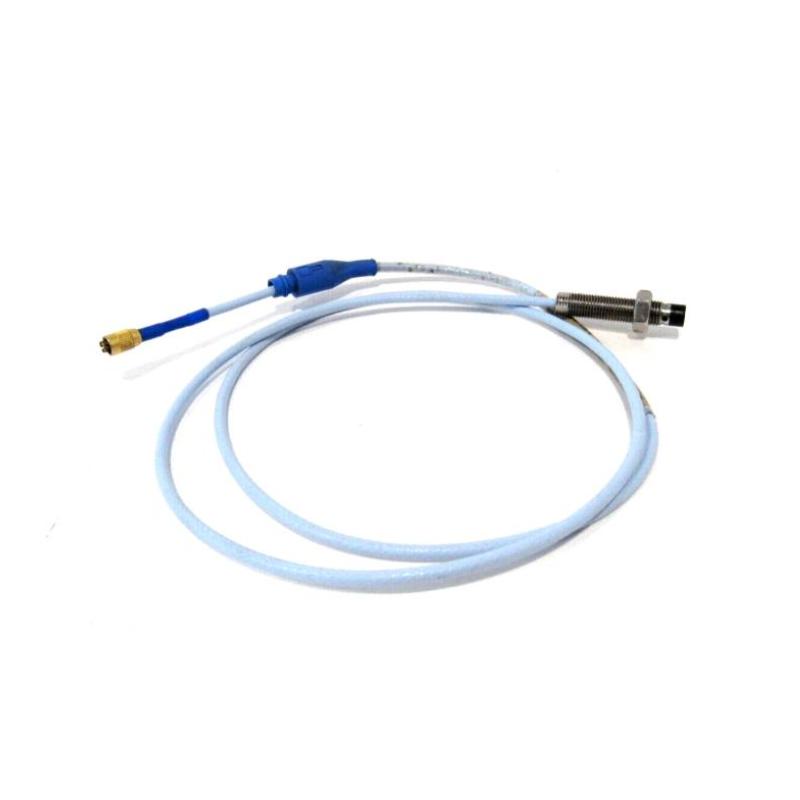

The Bently Nevada 330101-00-12-15-02-05 3300 XL 8 mm Proximity Probe is a premium non-contact displacement sensor developed for high-precision monitoring of shaft vibration, axial position, eccentricity, and rotational movement in critical industrial machinery. As an integral component of the 3300 XL 8 mm Proximity Transducer System, this probe provides outstanding measurement accuracy, long-term stability, and dependable performance for machinery protection and predictive maintenance programs.
This model features a 0.0-inch unthreaded length, 1.2-inch overall case length, 1.5 m (4.9 ft) standard cable, a 3/8-24 UNF threaded body, a miniature coaxial ClickLoc connector, and CSA, ATEX, and IECEx approvals. Its rugged stainless steel construction ensures reliable operation in demanding industrial environments while integrating seamlessly with compatible 3300 XL extension cables and Proximitor sensors.
Product Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-12-15-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.2 in |
| Total Cable Length | 1.5 m (4.9 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Mounting Thread | 3/8-24 UNF |
| Probe Material | Stainless Steel Housing with PPS Probe Tip |
| Measurement Principle | Eddy Current, Non-Contact |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -52°C to +177°C |
| Approximate Dimensions | 230 × 8 × 8 mm |
| Approximate Weight | 0.32 kg |
