Advanced Non-Contact Measurement for Industrial Machinery Reliability

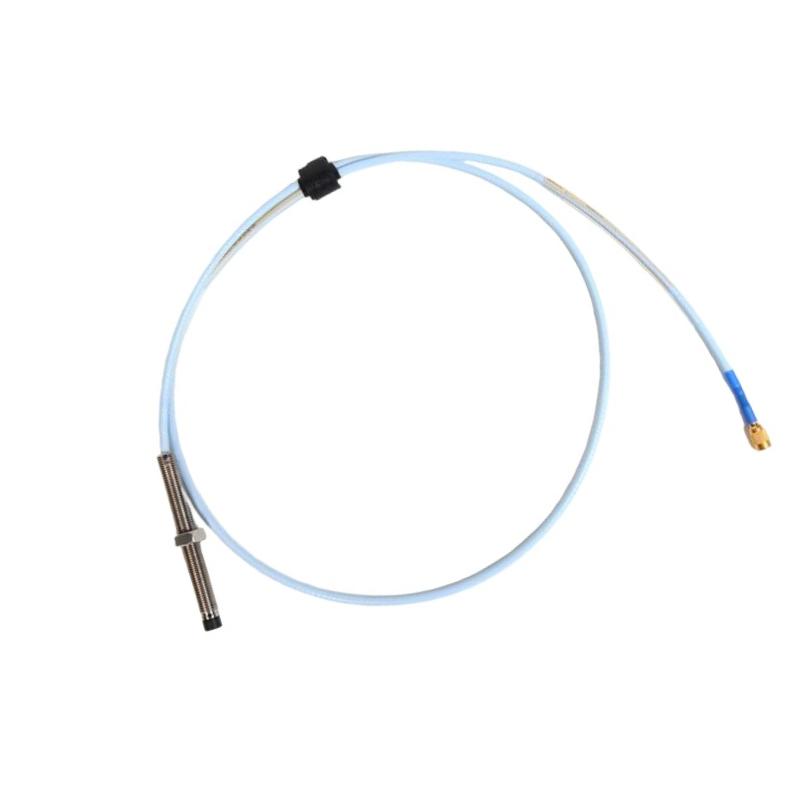

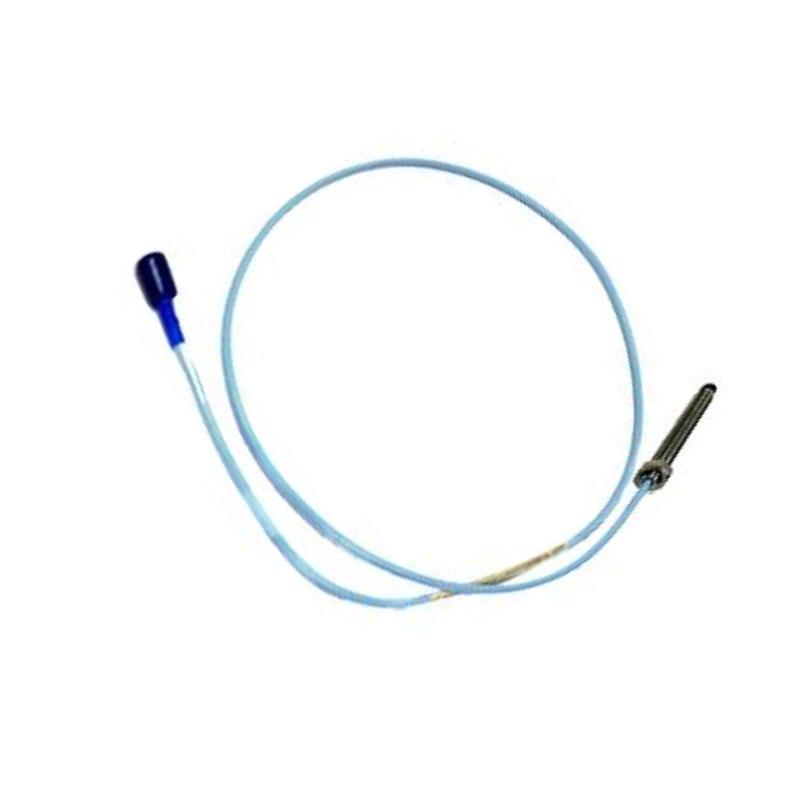

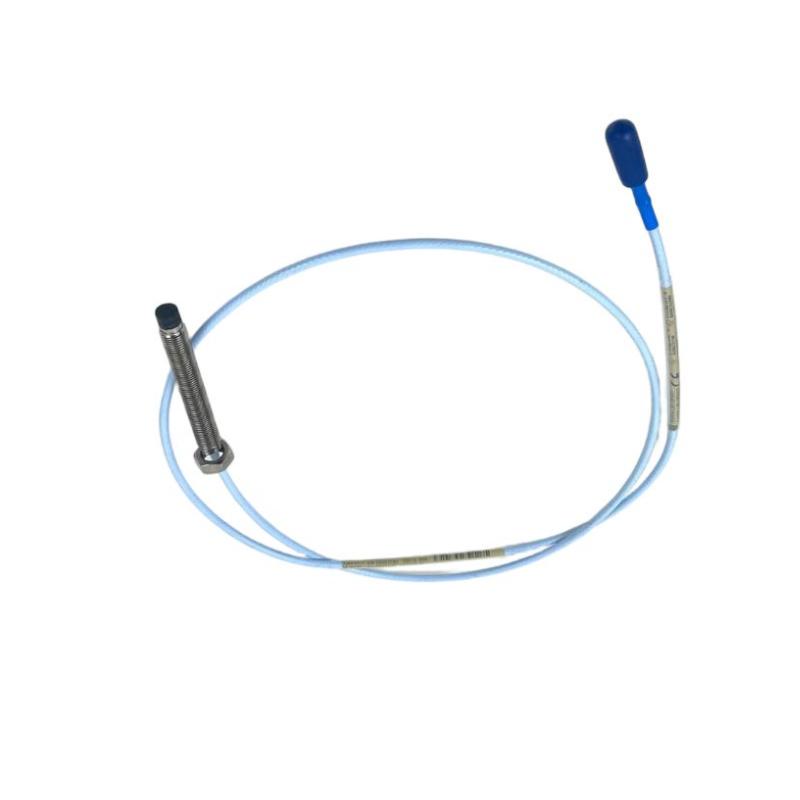

The Bently Nevada 330101-00-18-10-02-CN 3300 XL 8 mm Proximity Probe is a precision eddy-current displacement sensor designed for continuous monitoring of shaft vibration, radial movement, axial position, and rotational behavior in critical rotating equipment. As part of the widely applied 3300 XL 8 mm Proximity Transducer System, this probe provides stable measurement performance, excellent repeatability, and dependable operation for machinery protection and predictive maintenance applications.
This model configuration includes an 8 mm probe tip, 0.0-inch unthreaded length, 1.8-inch overall case length, 1.0 m (3.3 ft) standard cable, miniature coaxial ClickLoc™ connector, and a CN approval option for China-specific certifications. The probe uses a stainless steel case with a PPS probe tip and is designed for integration with compatible 3300 XL extension cables and Proximitor® sensors.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-18-10-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.8 in |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Mounting Thread | 3/8-24 UNF |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Linear Measurement Range | 2.0 mm (80 mils) nominal |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -51°C to +177°C |
| Approximate Dimensions | 245 × 8 × 8 mm |
| Approximate Weight | 0.323 kg |
