Precision Monitoring Component for Advanced Machinery Protection

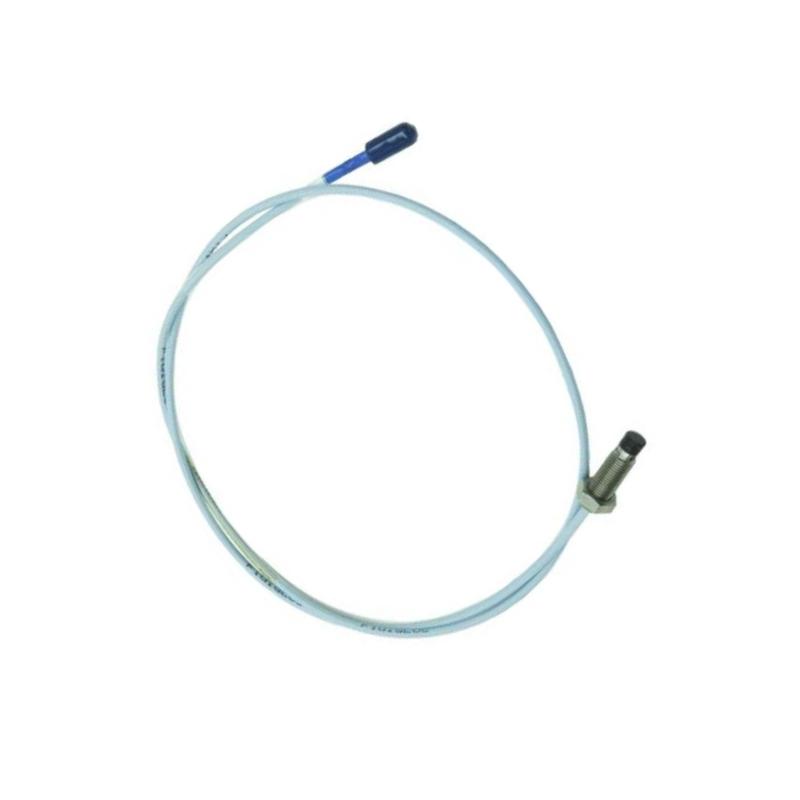

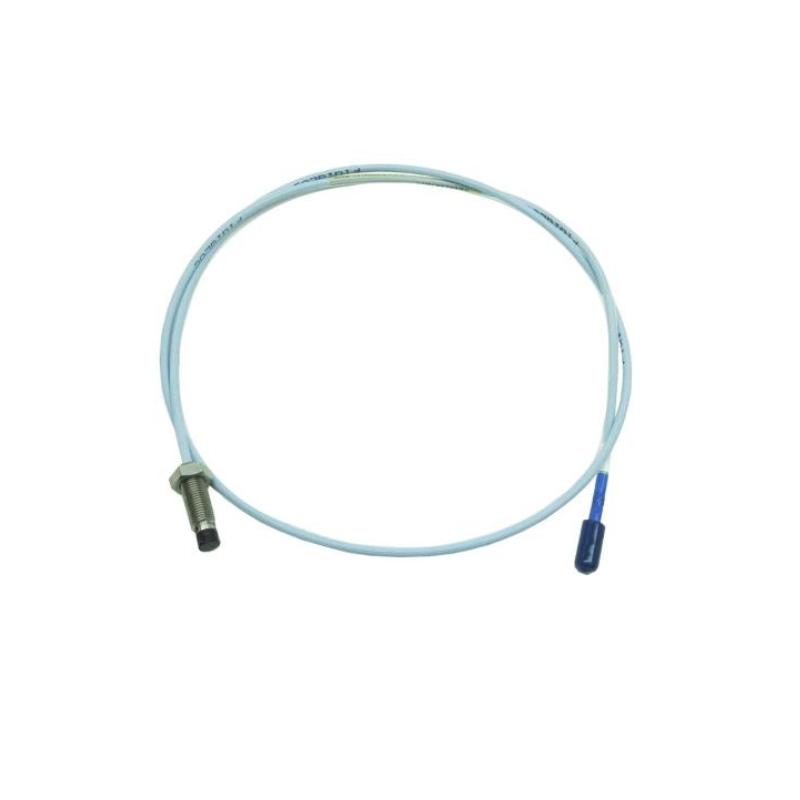

The Bently Nevada 330101-00-18-20-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy-current sensing device designed for continuous measurement of shaft vibration, radial displacement, and axial position in critical rotating machinery. As part of the trusted 3300 XL 8 mm Proximity Transducer System, this probe delivers reliable, repeatable measurement performance for industrial condition monitoring and machinery protection applications.
This configuration features an 8 mm sensing tip, 0.0-inch unthreaded length, 1.8-inch overall case length, 2.0 m (6.6 ft) standard cable, miniature coaxial ClickLoc™ connector, and CSA, ATEX, and IECEx approvals. The probe is manufactured with a durable stainless steel case and PPS sensing tip, providing stable operation in demanding industrial environments.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-18-20-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Probe Configuration | Standard Mount Probe |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.8 in |
| Total Cable Length | 2.0 m (6.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Mounting Thread | 3/8-24 UNF |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Measurement Principle | Eddy Current Non-Contact Sensing |
| Linear Measurement Range | 2.0 mm (80 mils) nominal |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -51°C to +177°C |
| Approximate Dimensions | 245 × 8 × 8 mm |
| Approximate Weight | 0.32 kg |
