High-Reliability Sensor for Precision Machinery Condition Monitoring

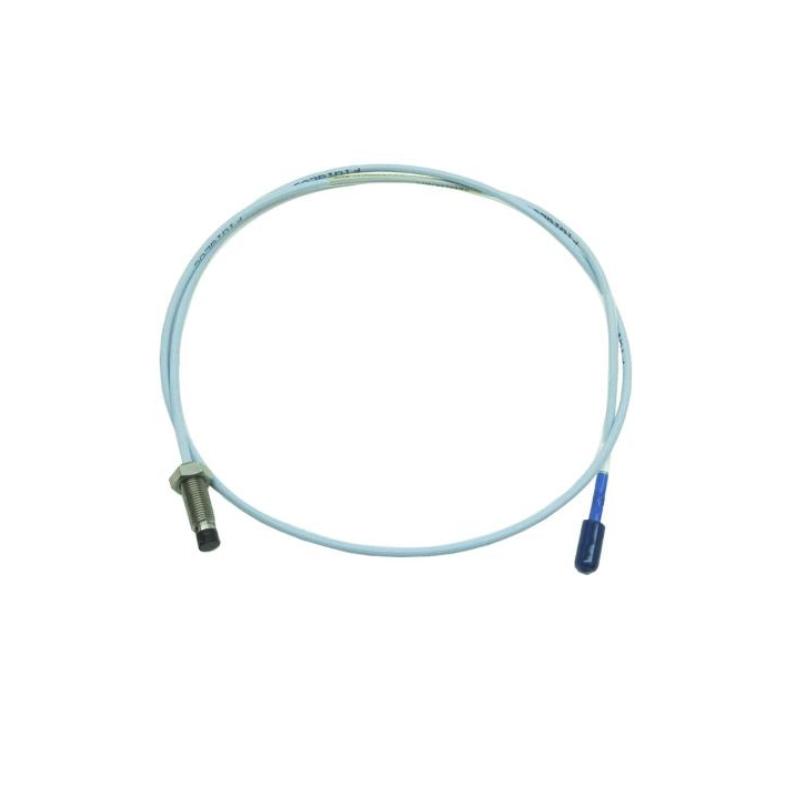

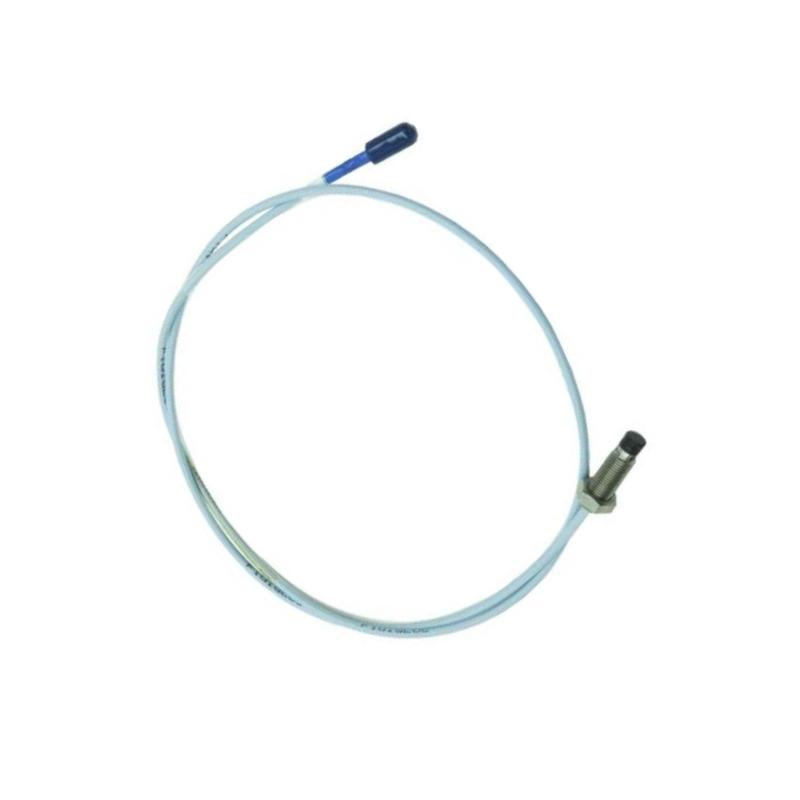

The Bently Nevada 330101-00-18-10-11-05 3300 XL 8 mm Proximity Probe is a precision non-contact displacement sensor designed for accurate measurement of shaft vibration, radial movement, axial position, and rotational dynamics in critical rotating machinery. As a core component of the 3300 XL 8 mm Proximity Transducer System, this probe combines advanced eddy-current sensing technology with robust mechanical construction to deliver stable performance in demanding industrial environments.
Configured with an 8 mm sensing tip, 1.8-inch overall case length, 1.0 m (3.3 ft) cable, miniature coaxial ClickLoc™ connector with FluidLoc® cable design, and multiple agency approvals, this model is optimized for applications requiring enhanced cable protection and dependable signal transmission. It works together with compatible 3300 XL extension cables and Proximitor® sensors to create a complete machinery monitoring solution.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-18-10-11-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Probe Style | Standard Mount Probe |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.8 in |
| Cable Length | 1.0 m (3.3 ft) |
| Cable Type | FluidLoc® Cable |
| Connector Type | Miniature Coaxial ClickLoc™ Connector with Protector |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature Range | Probe tip: up to approximately +218°C |
| Approximate Dimensions | 245 × 8 × 8 mm |
| Approximate Weight | 0.32 kg |
