Precision Engineered for Reliable Machine Protection

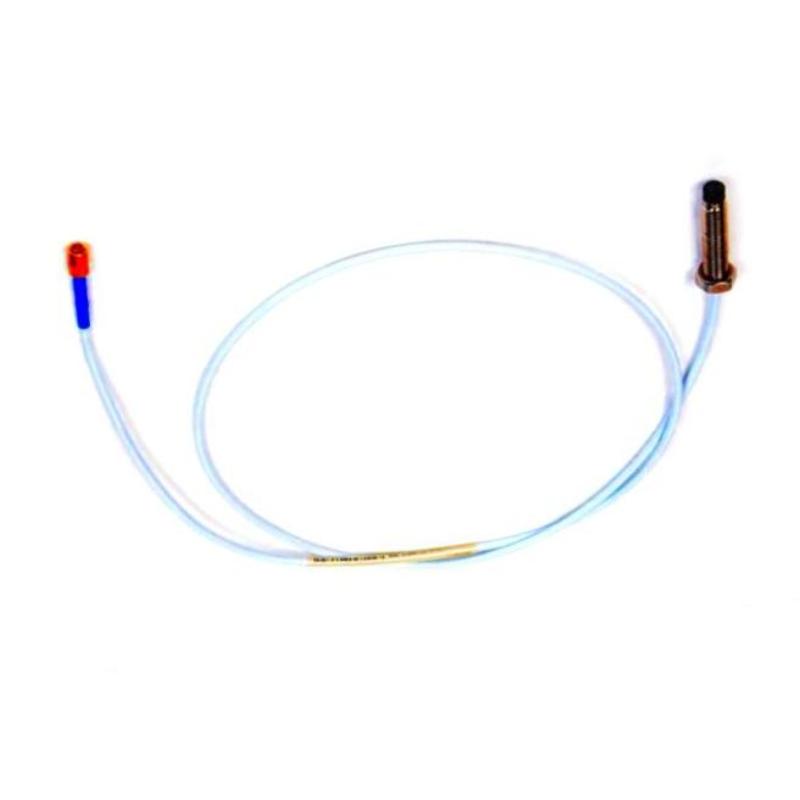

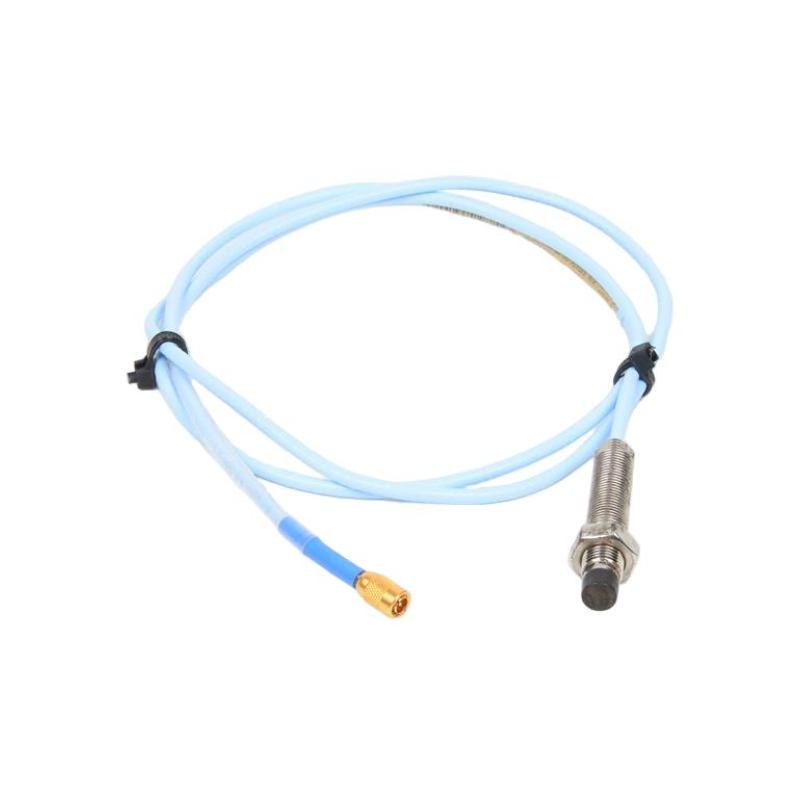

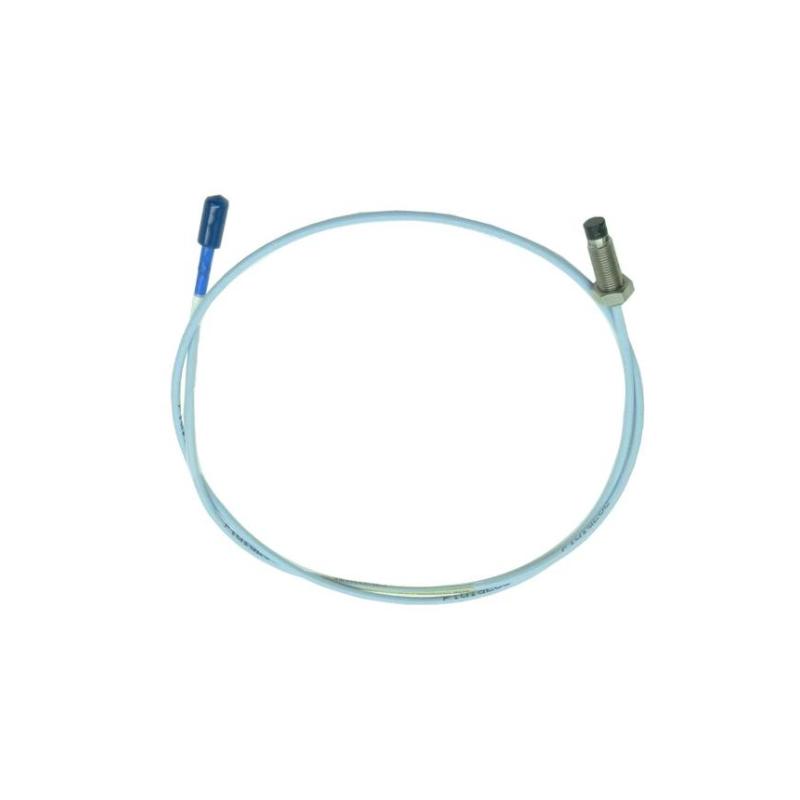

The Bently Nevada 330101-00-11-10-02-05 3300 XL 8 mm Proximity Probe is a high-accuracy non-contact displacement sensor designed for continuous monitoring of shaft vibration, axial position, eccentricity, and rotational speed in critical rotating equipment. As a key component of the 3300 XL 8 mm Proximity Transducer System, this probe delivers exceptional measurement stability, excellent linearity, and dependable long-term performance in demanding industrial applications.
This configuration features an 8 mm probe tip, 1.1-inch overall case length, 1.0 m (3.3 ft) standard cable, a 3/8-24 UNF threaded body, a miniature coaxial ClickLoc connector, and CSA, ATEX, and IECEx approvals. Designed for seamless integration with compatible 3300 XL extension cables and Proximitor® sensors, it offers a dependable solution for predictive maintenance and machinery protection systems.
Product Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-11-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.1 in |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Mounting Thread | 3/8-24 UNF |
| Probe Material | Stainless Steel Housing with PPS Probe Tip |
| Measurement Principle | Eddy Current, Non-Contact |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -52°C to +177°C |
| Approximate Dimensions | 220 × 8 × 8 mm |
| Approximate Weight | 0.26 kg |
