Precision Shaft Measurement Solution for Industrial Machinery Monitoring

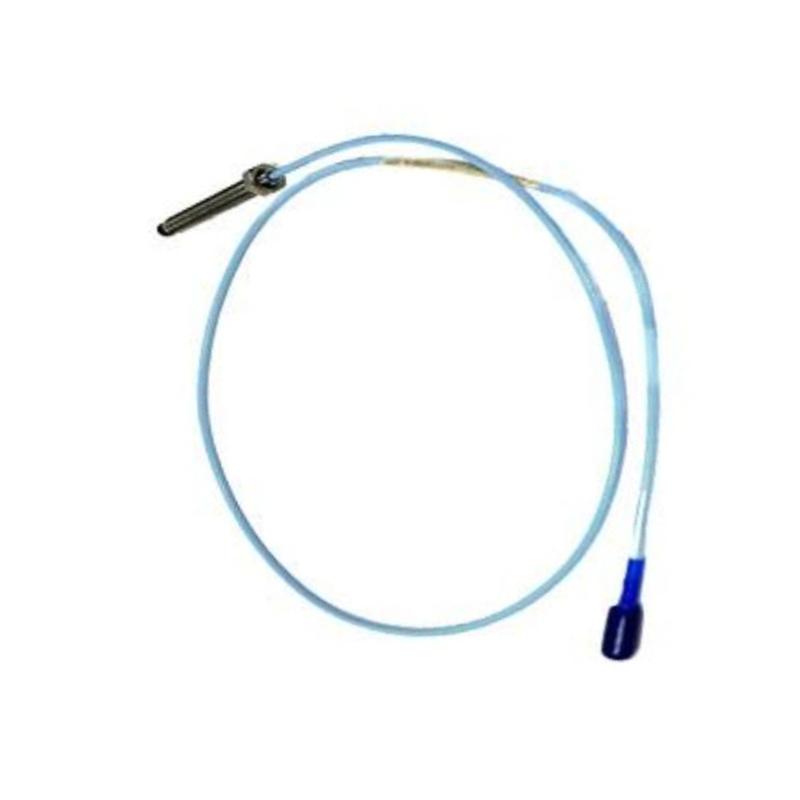

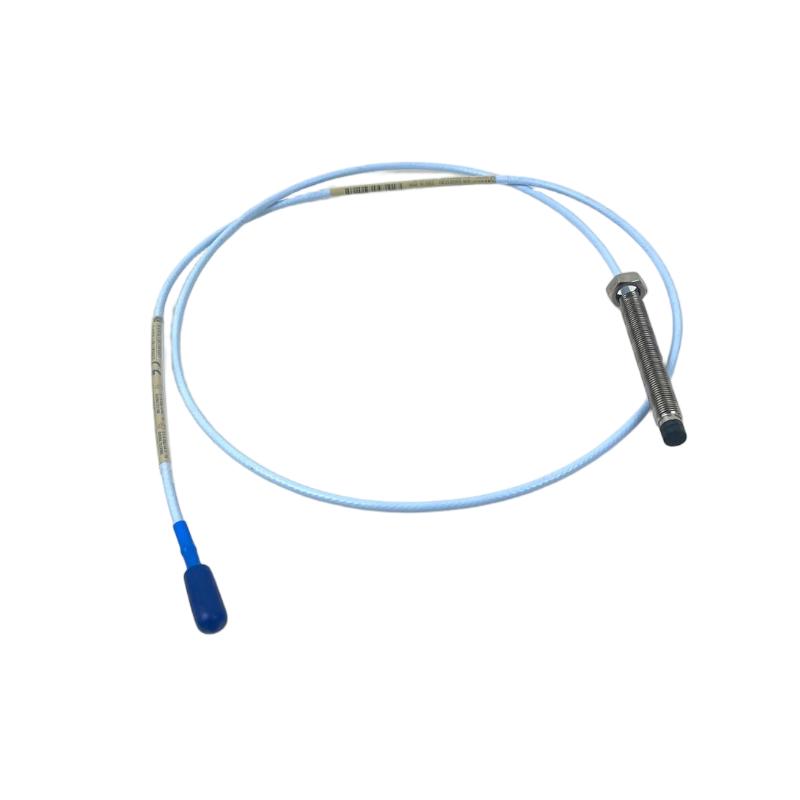

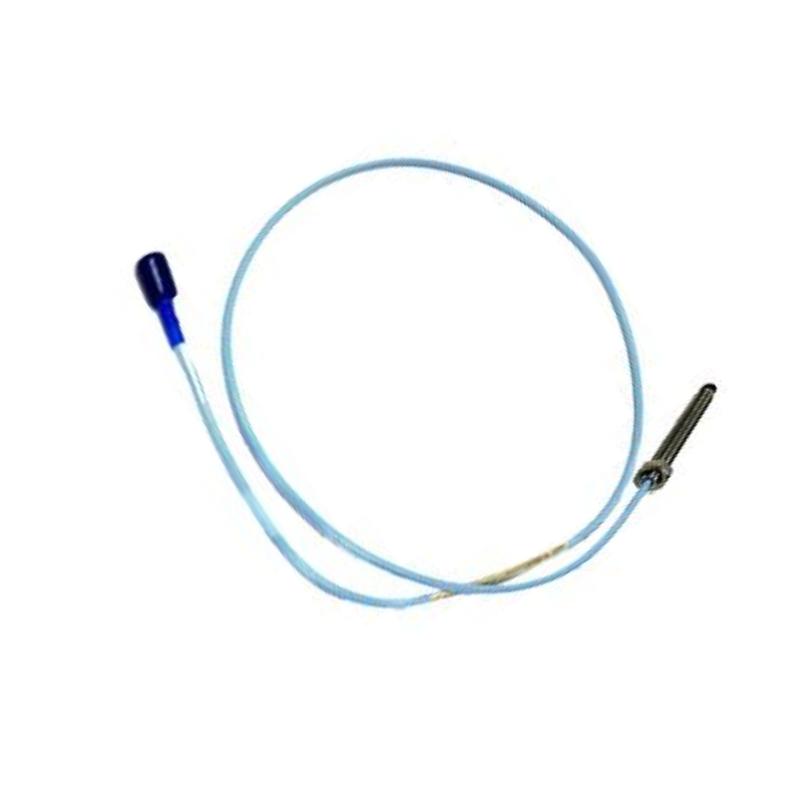

The Bently Nevada 330101-00-19-10-02-05 3300 XL 8 mm Proximity Probe is a reliable non-contact displacement sensor designed for accurate monitoring of shaft vibration, radial movement, axial position, and rotational characteristics in critical rotating equipment. As a core element of the 3300 XL 8 mm Proximity Transducer System, this probe uses proven eddy-current sensing technology to provide stable measurement performance and long-term reliability for machinery protection and predictive maintenance applications.
Featuring a 0.0-inch unthreaded length, 1.9-inch overall case length, 1.0 m (3.3 ft) standard cable, and miniature coaxial ClickLoc™ connector, this configuration is designed for straightforward installation with compatible 3300 XL extension cables and Proximitor® sensors. Its stainless steel probe case and PPS sensing tip provide excellent durability for demanding industrial environments.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-19-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Probe Type | Standard Mount Probe |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.9 in |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Mounting Thread | 3/8-24 UNF |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Linear Measurement Range | 2.0 mm (80 mils) nominal |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -51°C to +177°C |
| Approximate Dimensions | 250 × 8 × 8 mm |
| Approximate Weight | 0.323 kg |
