Overview of the Probe

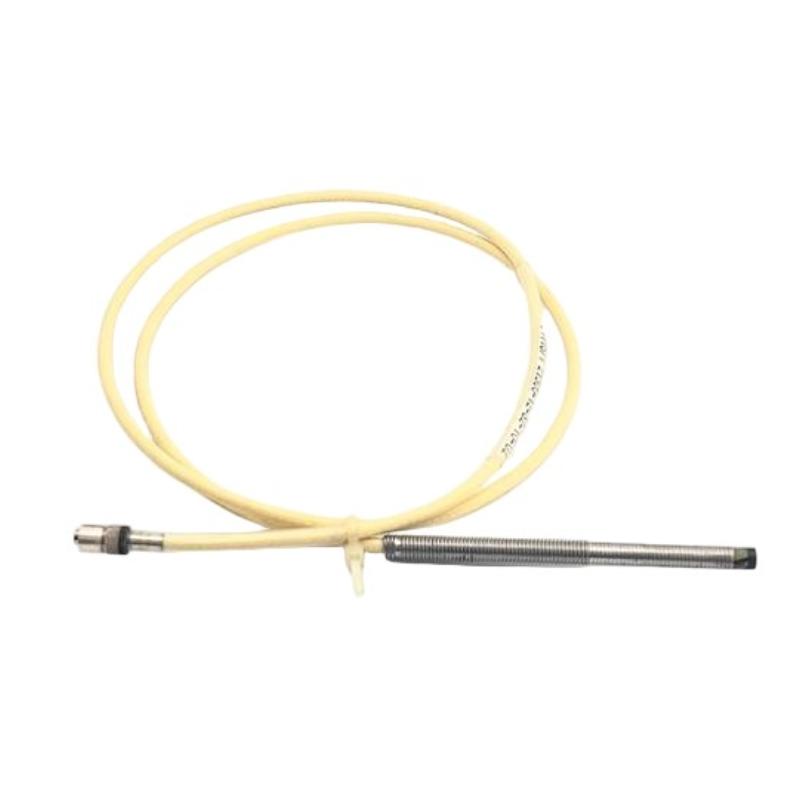

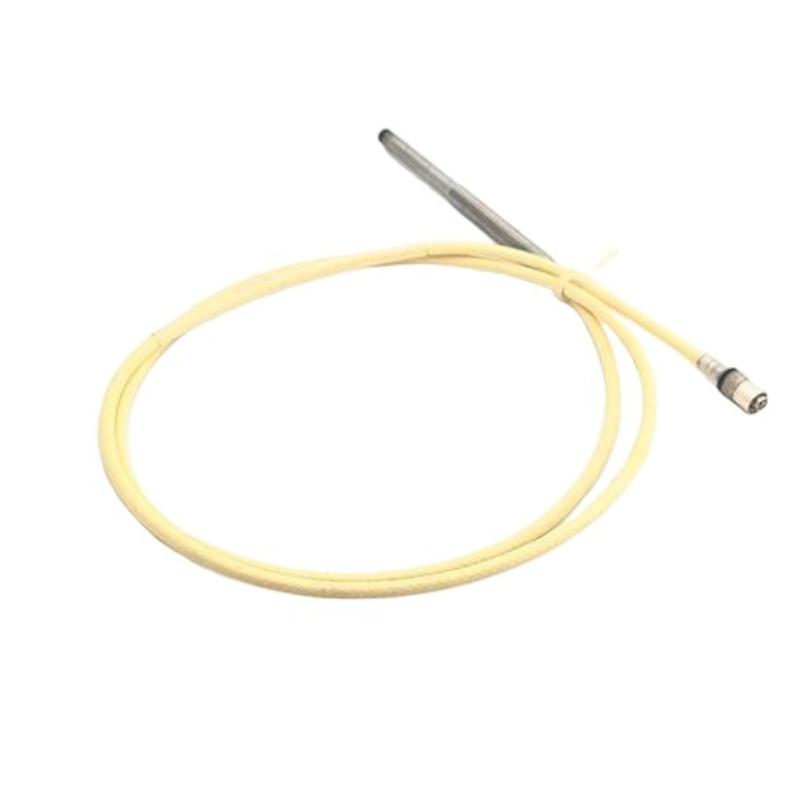

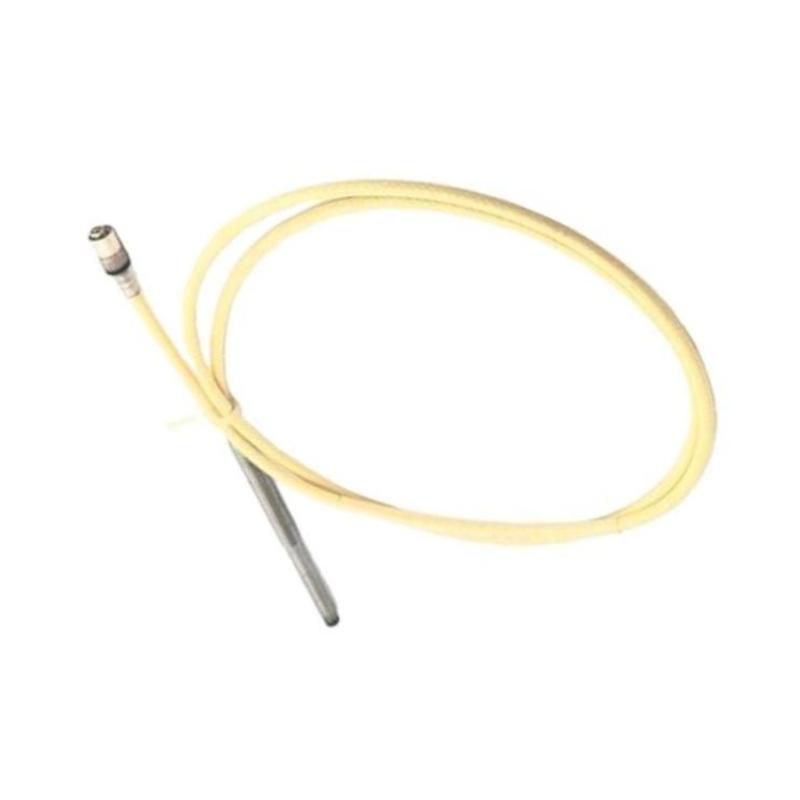

The Bently Nevada 21500-00-12-05-02 7200 5 mm Proximity Probe is a precision non-contact sensor developed for continuous monitoring of shaft vibration, axial position, and displacement in critical rotating machinery. As part of the trusted 7200 Series Proximity Transducer System, this probe delivers stable measurement performance and dependable operation in demanding industrial environments.
This model features a 5 mm probe tip, 1.2-inch (120 mm) case length, 0.5 m (20 in) integral cable, 1/4-28 UNF threaded body, and a miniature male coaxial connector. Designed for compatibility with 7200 Series Proximitor® sensors, it provides reliable condition monitoring that supports predictive maintenance and improved equipment availability.
Hardware Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21500-00-12-05-02 |
| Product Type | 7200 5 mm Proximity Probe |
| Series | 7200 Proximity Transducer System |
| Probe Diameter | 5 mm |
| Overall Case Length | 1.2 in (120 mm) |
| Integral Cable Length | 0.5 m (20 in) |
| Thread Type | 1/4-28 UNF |
| Connector Type | Miniature Male Coaxial Connector |
| Measurement Principle | Eddy Current, Non-Contact |
| Linear Measuring Range | 80 mil (2.0 mm) nominal |
| Typical Scale Factor | 200 mV/mil (7.87 V/mm) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -51°C to +177°C |
| Approximate Dimensions | 62 × 2 × 2 cm |
| Approximate Weight | 0.14 kg |
