Reliable Housing Solution for Industrial Vibration Monitoring

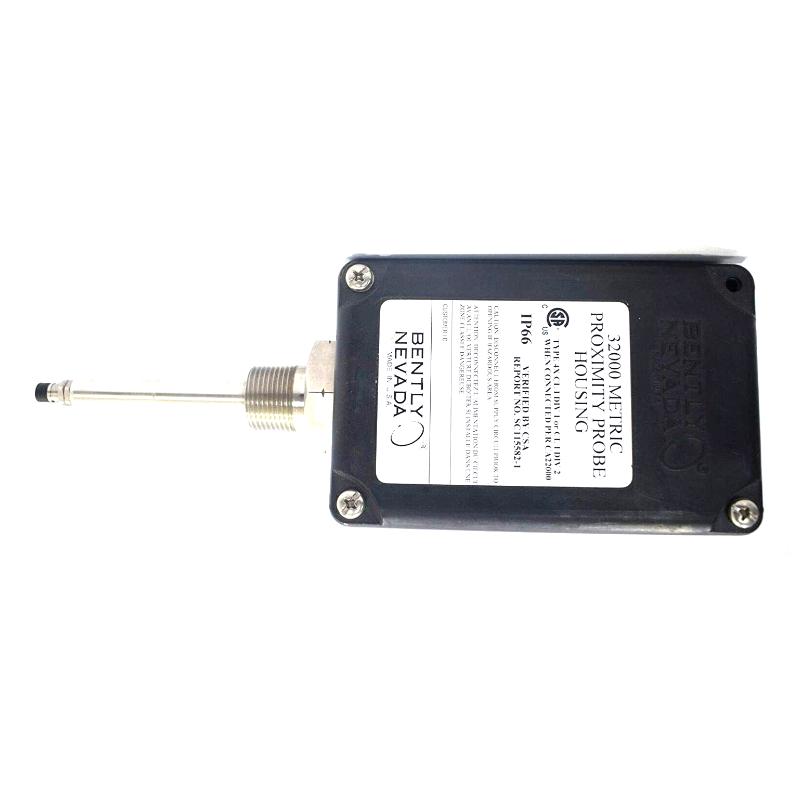

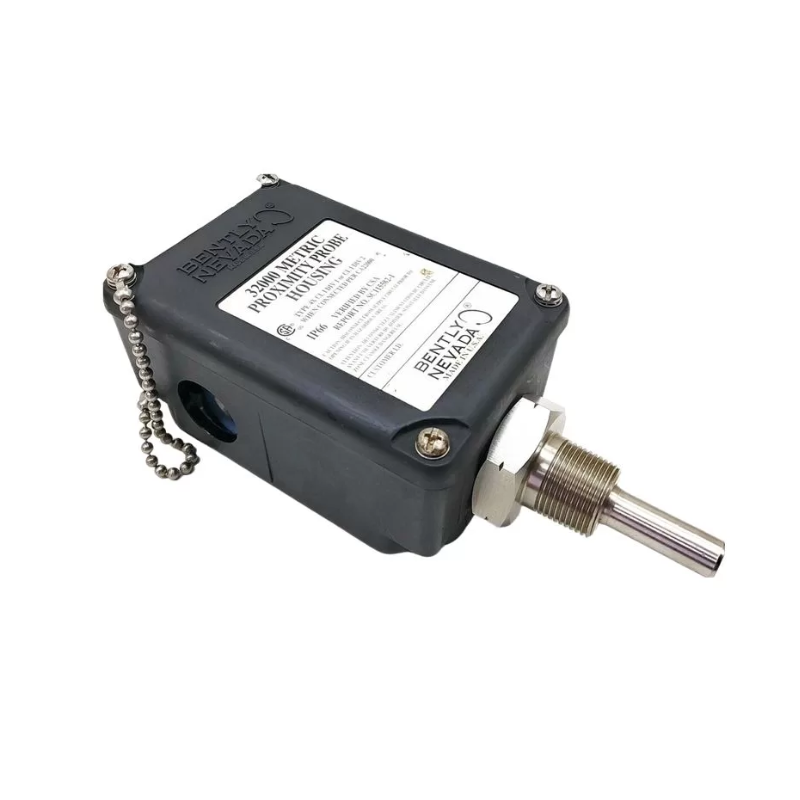

The Bently Nevada 32000-16-05-10-078-07-02 Proximity Probe Housing is designed to provide dependable installation, protection, and easy maintenance access for proximity probes used in machinery condition monitoring systems. As part of the 32000 Metric Proximity Probe Housing Series, this housing assembly enables technicians to adjust or replace the probe externally without dismantling the machine, helping reduce maintenance time and maximize equipment availability.
This configuration includes a 3300 XL 8 mm proximity probe, a 0.5 m integral probe cable, a 100 mm standoff adapter, 80 mm probe penetration, one PG21 × M20 conduit fitting with two plugs, and a 3/4-14 NPT mounting thread. Its rugged glass-reinforced PPS housing and stainless steel components provide reliable performance in demanding industrial environments.
Product Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 32000-16-05-10-078-07-02 |
| Product Type | Proximity Probe Housing |
| Series | 32000 Metric Proximity Probe Housing |
| Installed Probe | 3300 XL 8 mm Proximity Probe |
| Probe Cable Length | 0.5 m (20 in) |
| Standoff Adapter Length | 100 mm |
| Probe Penetration | 80 mm |
| Fittings | One PG21 × M20 fitting with two plugs |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-reinforced PPS with conductive fibers |
| Sleeve Material | AISI 304 Stainless Steel |
| Protection Rating | Type 4X / IP66 |
| Operating Temperature | -51°C to +105°C |
| Approximate Dimensions | 320 × 91 × 91 mm |
| Approximate Weight | 1.2 kg |
