High-Performance Sensor for Critical Machinery Monitoring

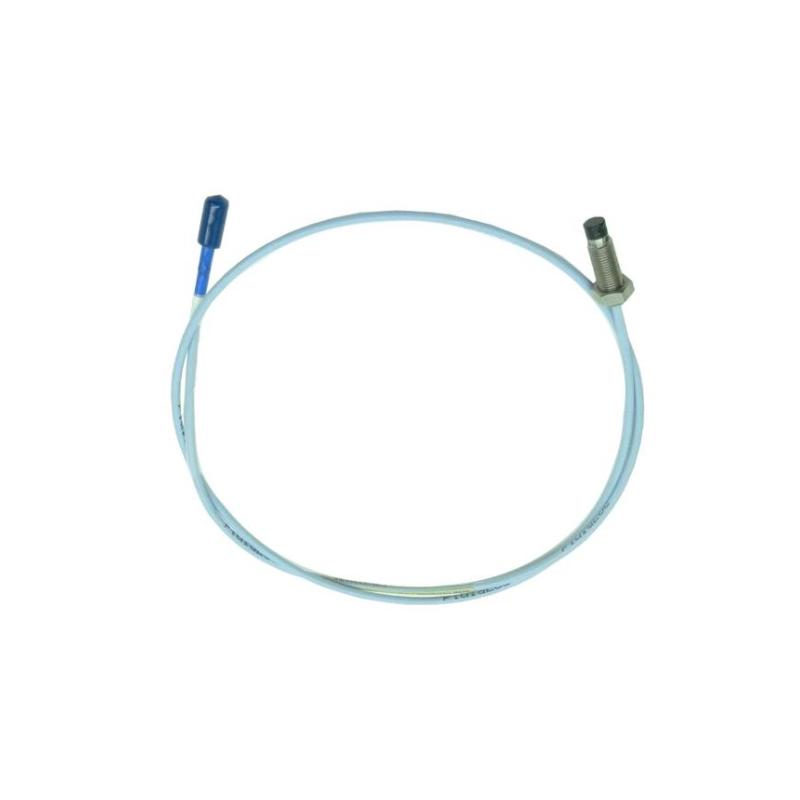

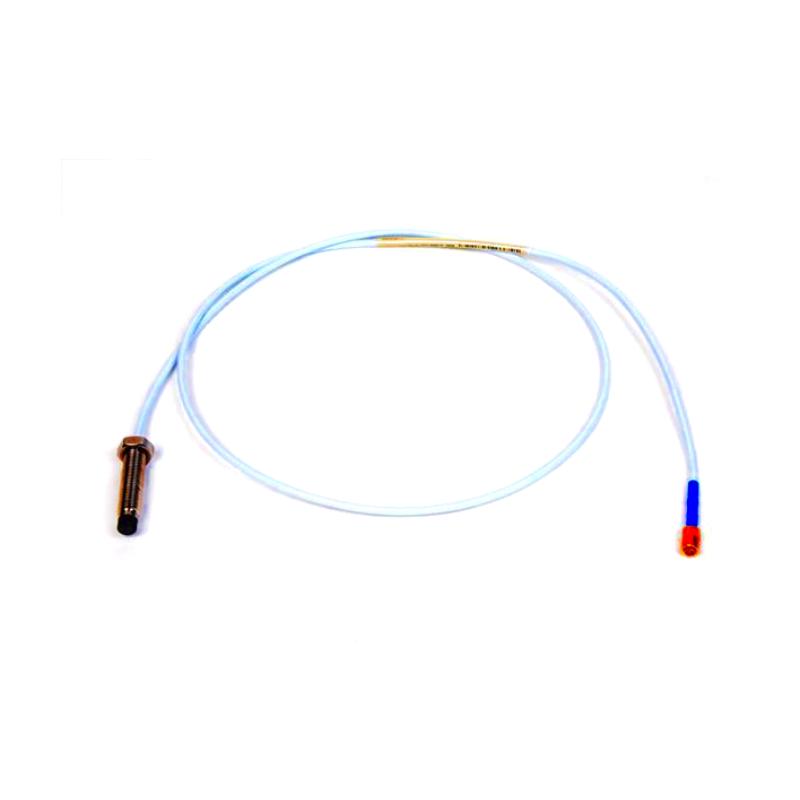

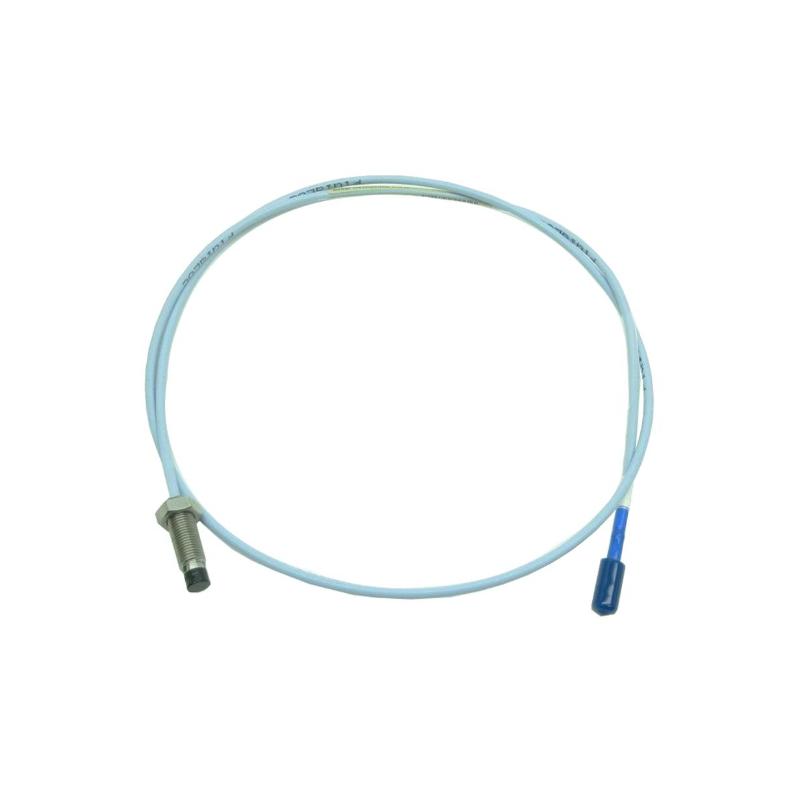

The Bently Nevada 330101-00-10-15-02-05 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor designed for continuous measurement of shaft vibration, axial position, and rotational displacement in industrial rotating equipment. As part of the proven 3300 XL 8 mm Proximity Transducer System, this probe delivers excellent linearity, repeatability, and long-term stability for machinery protection and predictive maintenance applications.
This configuration features a 0.0 in unthreaded length, 1.0 in overall case length, 1.5 m (4.9 ft) standard cable, a miniature coaxial ClickLoc connector, and CSA, ATEX, and IECEx approvals. Its rugged stainless steel construction and advanced probe technology make it well suited for demanding industrial environments where reliable vibration monitoring is essential.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-10-15-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.0 in |
| Total Cable Length | 1.5 m (4.9 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Thread Type | 3/8-24 UNF |
| Probe Material | Stainless Steel with PPS Probe Tip |
| Measurement Principle | Eddy Current, Non-Contact |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -52°C to +177°C (Probe) |
| Approximate Dimensions | 210 × 8 × 8 mm |
| Approximate Weight | 0.25 kg |
