Compact Housing for Reliable Machinery Monitoring

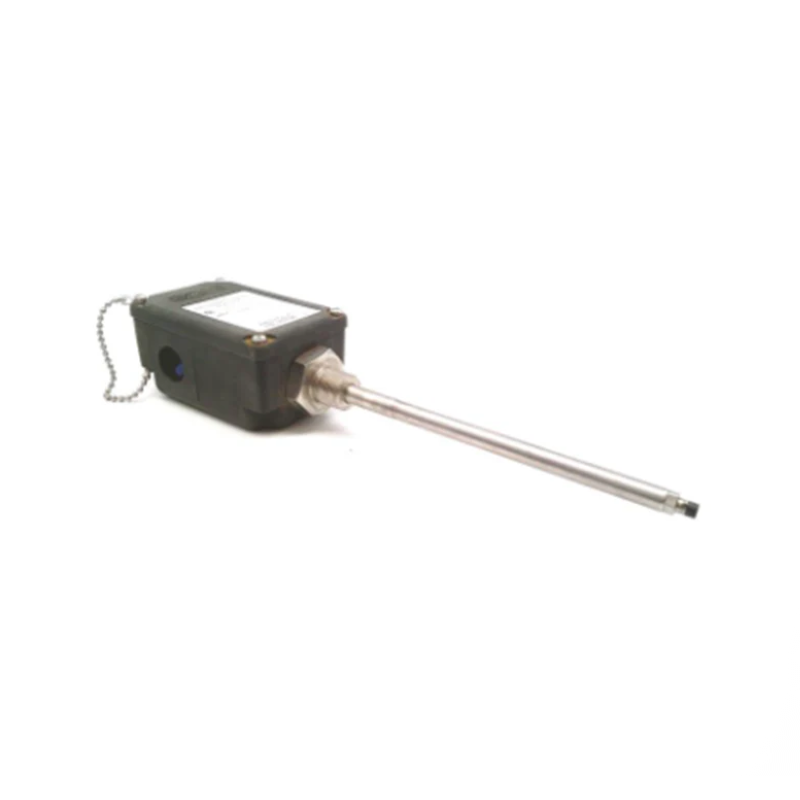

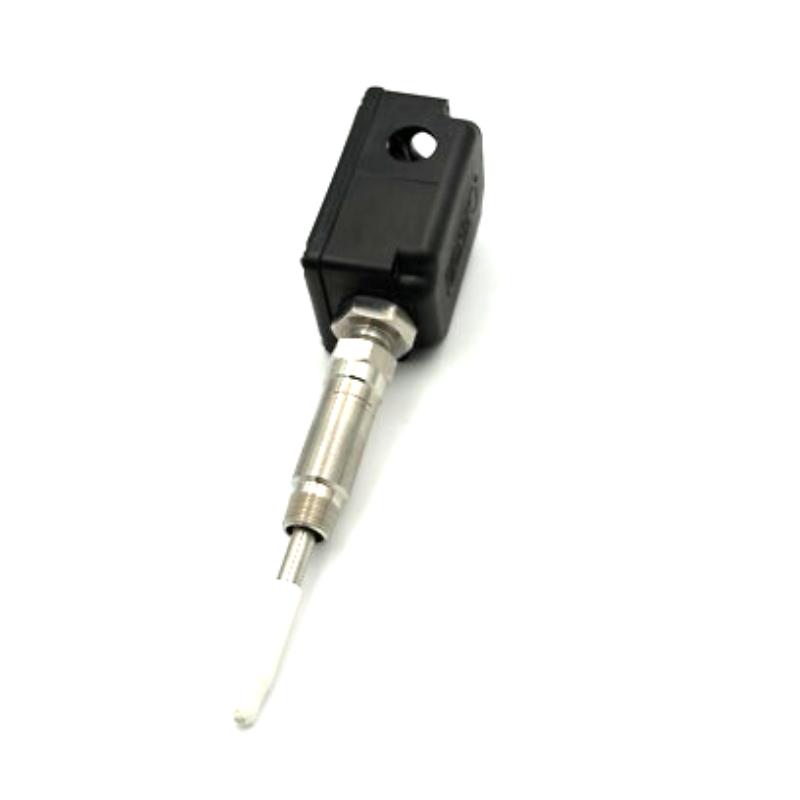

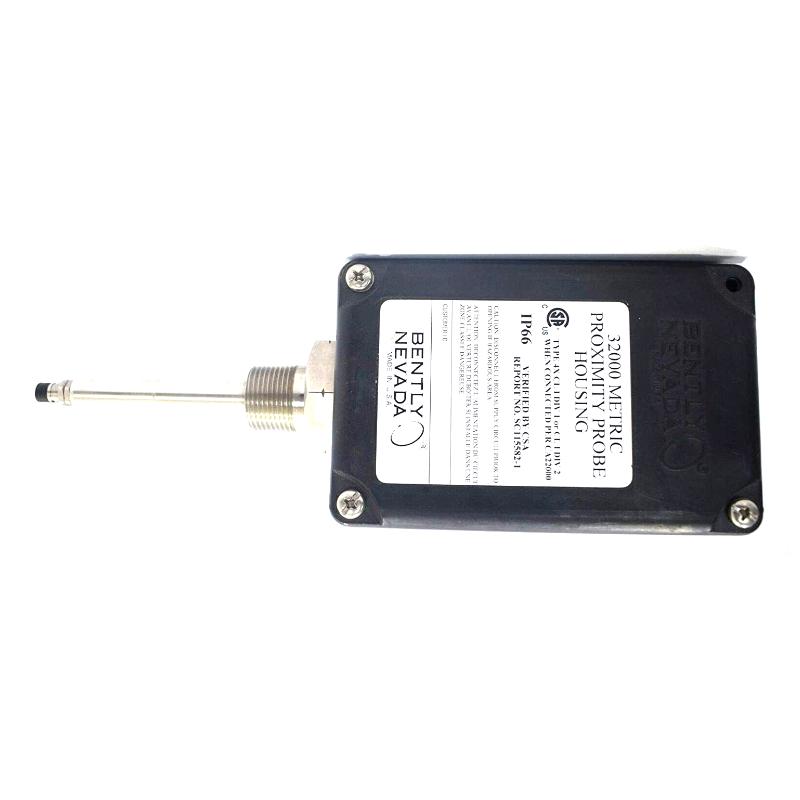

The Bently Nevada 32000-28-05-00-035-01-02 Proximity Probe Housing is engineered to provide secure installation and environmental protection for proximity probes used in machinery condition monitoring systems. As a member of the 32000 Metric Proximity Probe Housing Series, this assembly allows convenient external access for probe adjustment and replacement, reducing maintenance time while helping maintain continuous equipment operation.
This configuration is supplied with a 3300 XL 8 mm proximity probe (multiple approvals), a 0.5 m integral probe cable, no standoff adapter, a 35 mm probe penetration, one M25 conduit fitting with two plugs, and a 3/4-14 NPT mounting thread. The housing is manufactured from glass-reinforced polyphenylene sulfide (PPS) with stainless steel components to provide excellent corrosion resistance and dependable long-term performance in industrial environments.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 32000-28-05-00-035-01-02 |
| Product Type | Proximity Probe Housing |
| Series | 32000 Metric Proximity Probe Housing |
| Installed Probe | 3300 XL 8 mm Proximity Probe (Multiple Approvals) |
| Probe Cable Length | 0.5 m (20 in) |
| Standoff Adapter | None |
| Probe Penetration | 35 mm |
| Conduit Fittings | One M25 fitting with two plugs |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-reinforced PPS with conductive fibers |
| Sleeve Material | AISI 304 Stainless Steel |
| Protection Rating | Type 4X / IP66 |
| Operating Temperature | -51°C to +105°C |
| Approximate Dimensions | 255 × 90 × 90 mm |
| Approximate Weight | 1.2 kg |
