Engineered for Reliable Probe Protection

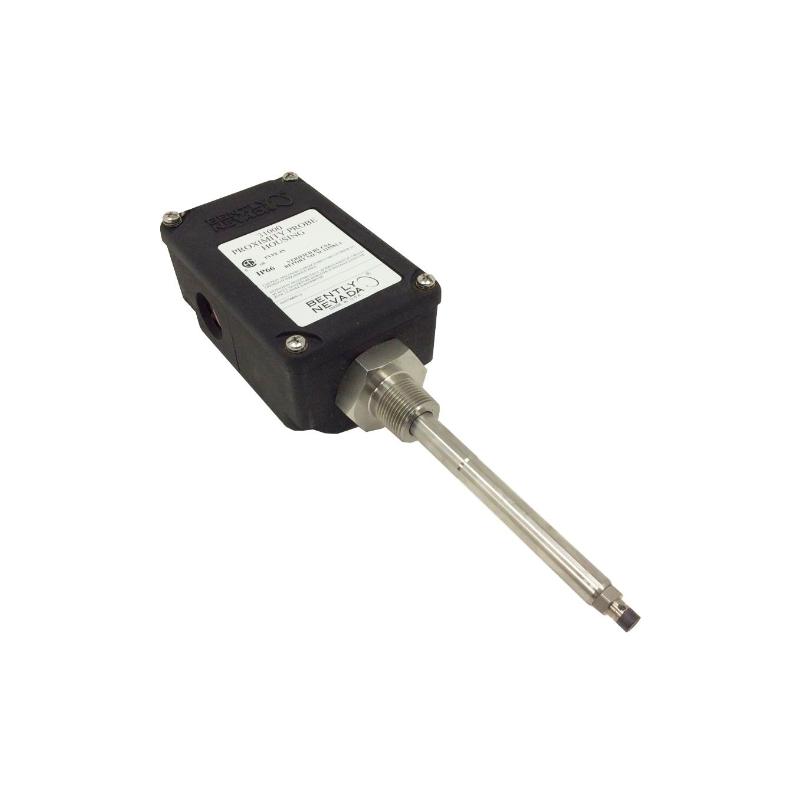

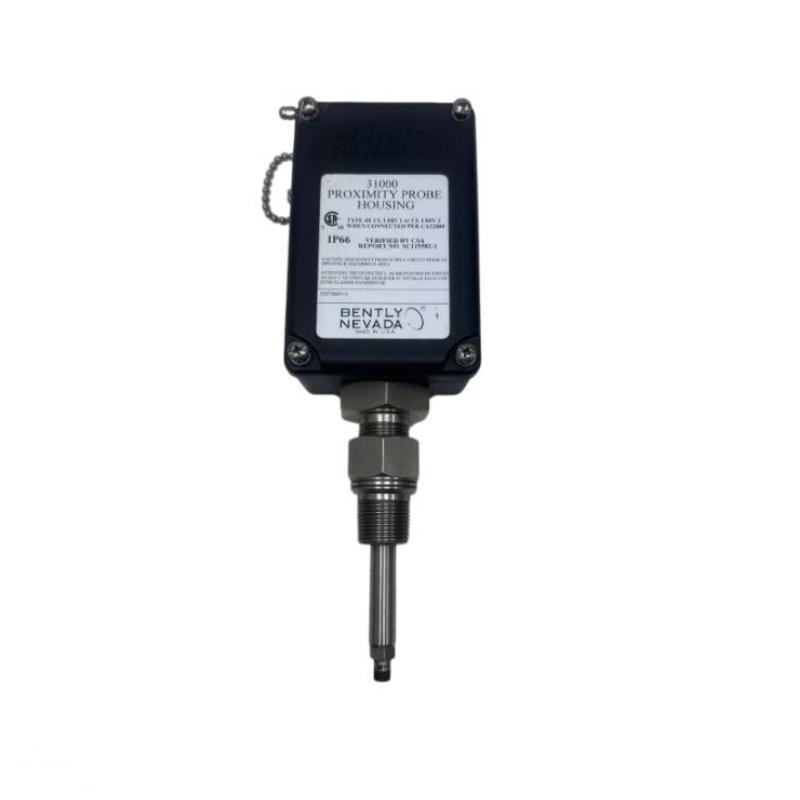

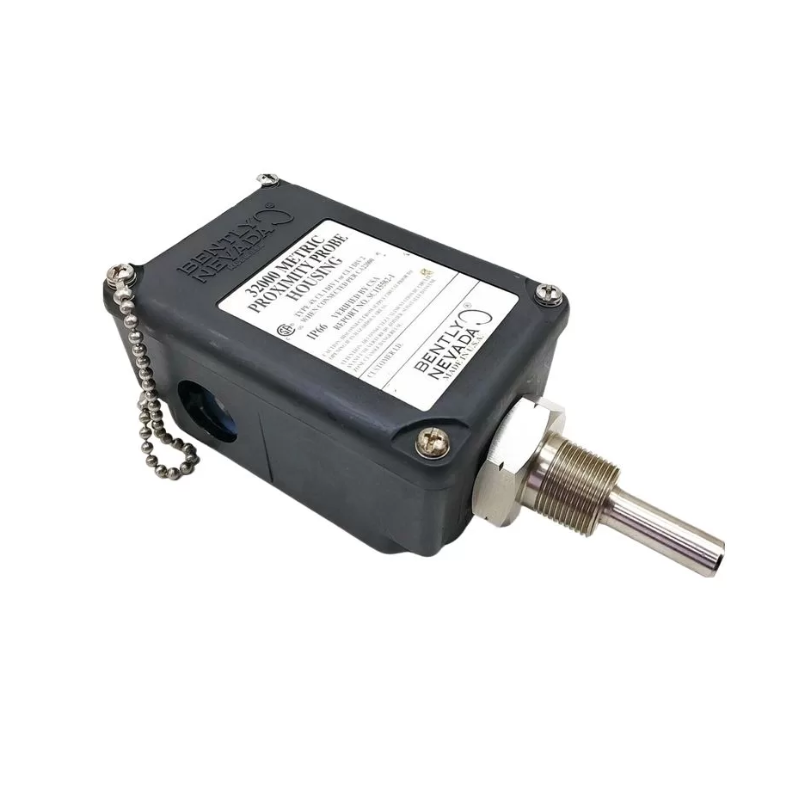

The Bently Nevada 32000-00-00-04-470-01-02 Proximity Probe Housing is designed to provide secure installation and environmental protection for proximity probes used in rotating machinery monitoring systems. As part of the 31000/32000 Series, this housing assembly allows proximity probes to be mounted through machine casings while providing convenient external access for probe adjustment or replacement, helping minimize maintenance time and improve equipment availability.
This configuration is supplied without a proximity probe or extension cable and includes a 40 mm standoff adapter, 470 mm probe penetration, one M25 conduit fitting with two plugs, and a 3/4-14 NPT mounting thread. Manufactured from durable polyphenylene sulfide (PPS) with stainless steel components, it offers dependable performance in demanding industrial environments.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 32000-00-00-04-470-01-02 |
| Product Type | Proximity Probe Housing |
| Series | 31000/32000 Housing Assemblies |
| Installed Probe | Not Included |
| Probe Cable | Not Included |
| Standoff Adapter Length | 40 mm |
| Probe Penetration | 470 mm |
| Conduit Fitting | One M25 Fitting with Two Plugs |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Polyphenylene Sulfide (PPS) with Stainless Steel Components |
| Protection Rating | NEMA 4X / IP66 (when properly assembled) |
| Operating Temperature | -51°C to +105°C |
| Approximate Dimensions | 560 × 65 × 65 mm |
| Approximate Weight | 1.2 kg |
