Product Introduction: Precision Reverse Mount Sensing for Advanced Machinery Monitoring

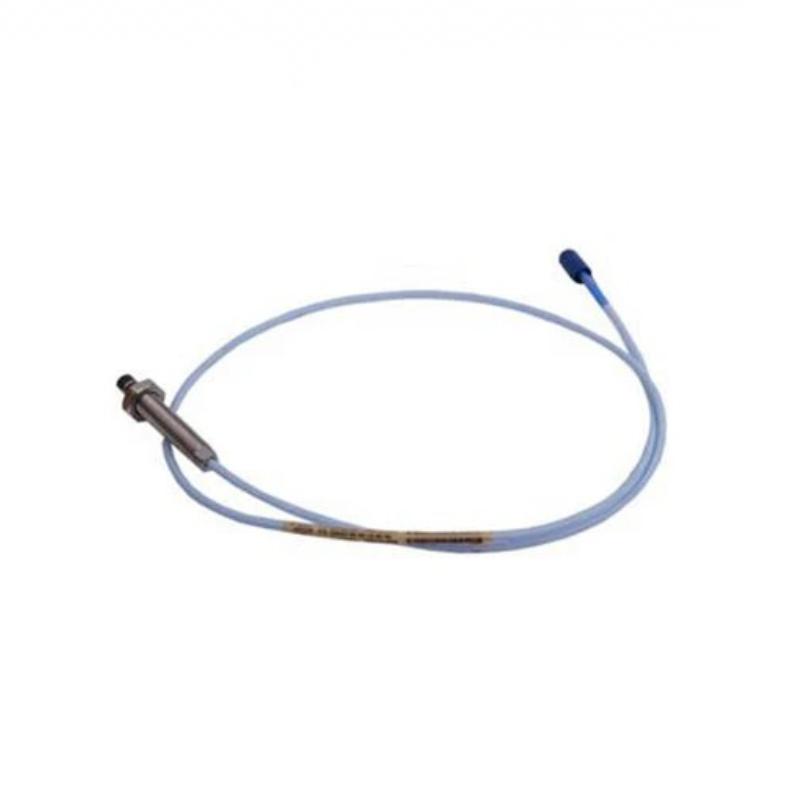

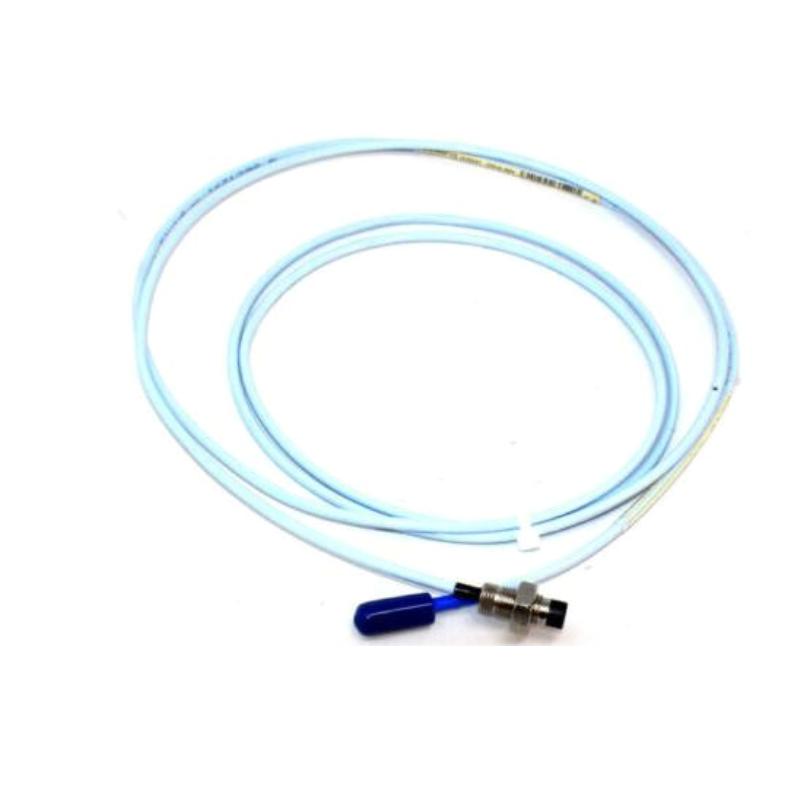

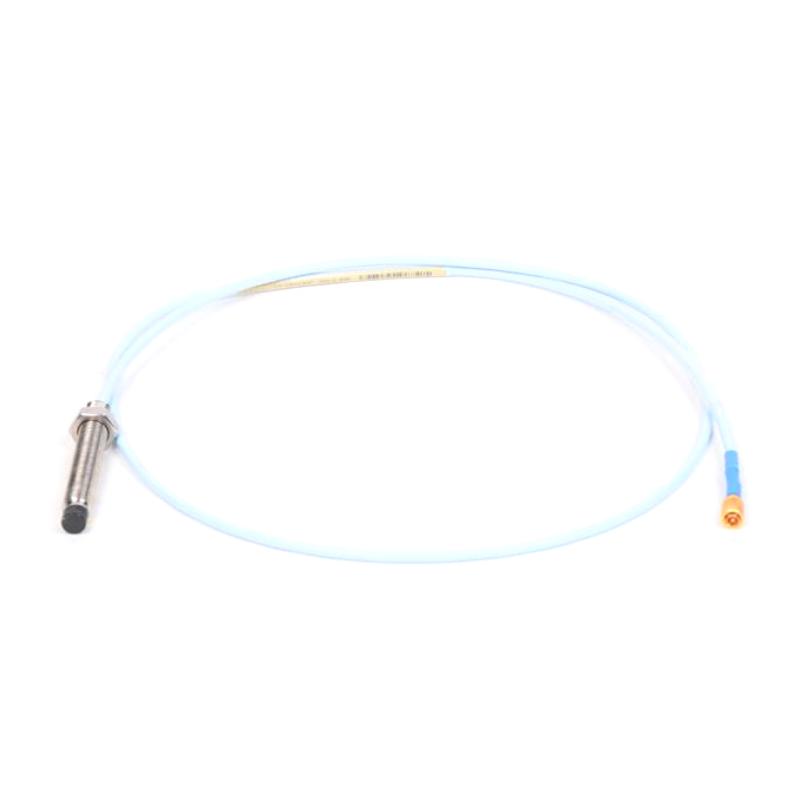

The Bently Nevada 330101-16-28-10-12-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact sensor designed for accurate shaft displacement, vibration, and position measurement in rotating machinery applications. As part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System, this probe delivers dependable measurement capability for industrial equipment requiring continuous condition monitoring and operational reliability.
Featuring advanced eddy-current sensing technology, the probe measures the distance between the sensing tip and a conductive shaft surface without physical contact. This allows the monitoring system to capture dynamic vibration changes and static shaft position information, making it suitable for turbines, compressors, generators, pumps, and other critical rotating equipment.
The 330101-16-28-10-12-05 configuration is designed with a reverse mount structure, 8 mm sensing tip, 1.6-inch unthreaded length, 2.8-inch case length, 1.0-metre total length, miniature coaxial ClickLoc connector, FluidLoc cable, and CSA/ATEX/IECEx approval options. It is intended for integration with compatible 3300 XL Proximitor Sensors and monitoring systems.
Technical Specifications: Product Configuration and Mechanical Data
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-16-28-10-12-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Series |
| Probe Style | Reverse Mount Configuration |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 1.6 inches |
| Case Length | 2.8 inches |
| Total Length | 1.0 metre |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | FluidLoc cable |
| Approval Options | CSA, ATEX, IECEx |
| Probe Housing Material | Stainless steel |
| Target Measurement | Shaft displacement, vibration, and position |
| Linear Measurement Range | Approximately 2 mm (80 mils) |
| Recommended Gap Setting | Approximately 1.27 mm (50 mils) |
| Operating Temperature Range | Approx. -52°C to +177°C |
| Approximate Dimensions | 71 mm × 20 mm × 20 mm |
| Approximate Weight | 0.323 kg |
| System Compatibility | 3300 XL Proximitor Sensor and compatible monitoring systems |
