Product Introduction: High-Performance Shaft Measurement for Industrial Condition Monitoring

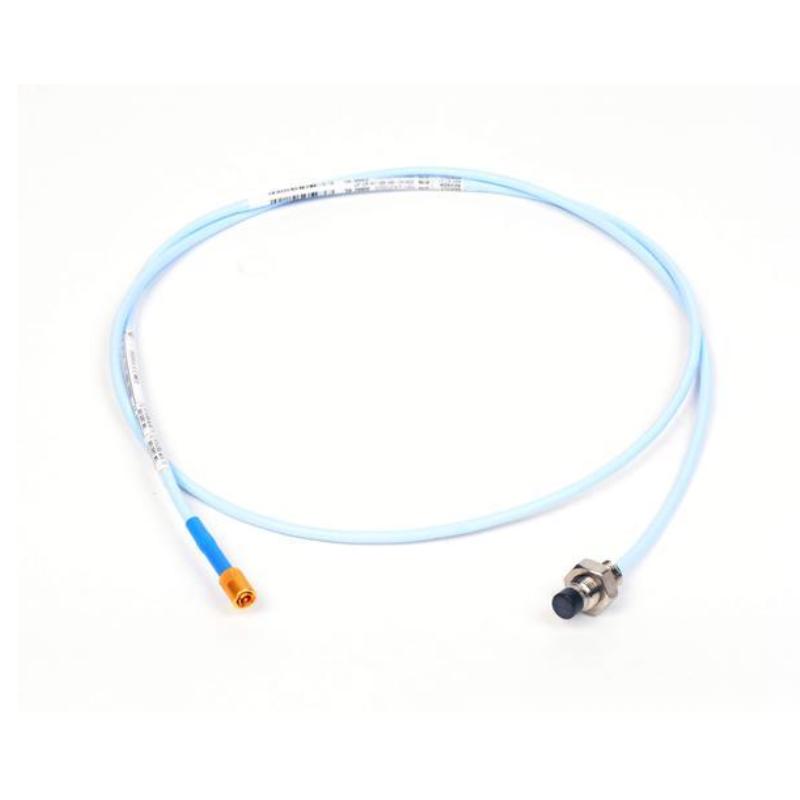

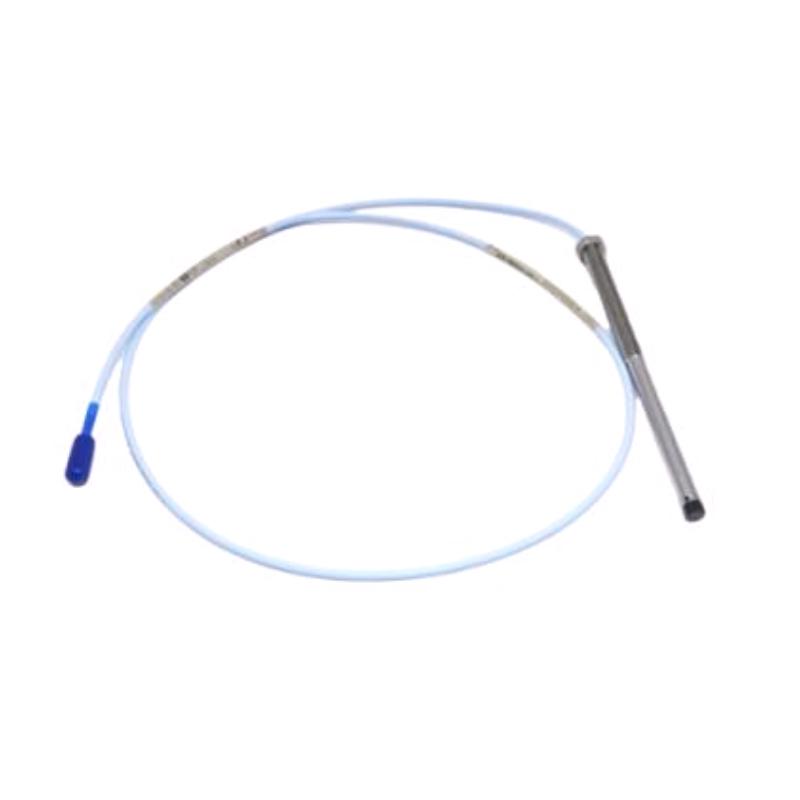

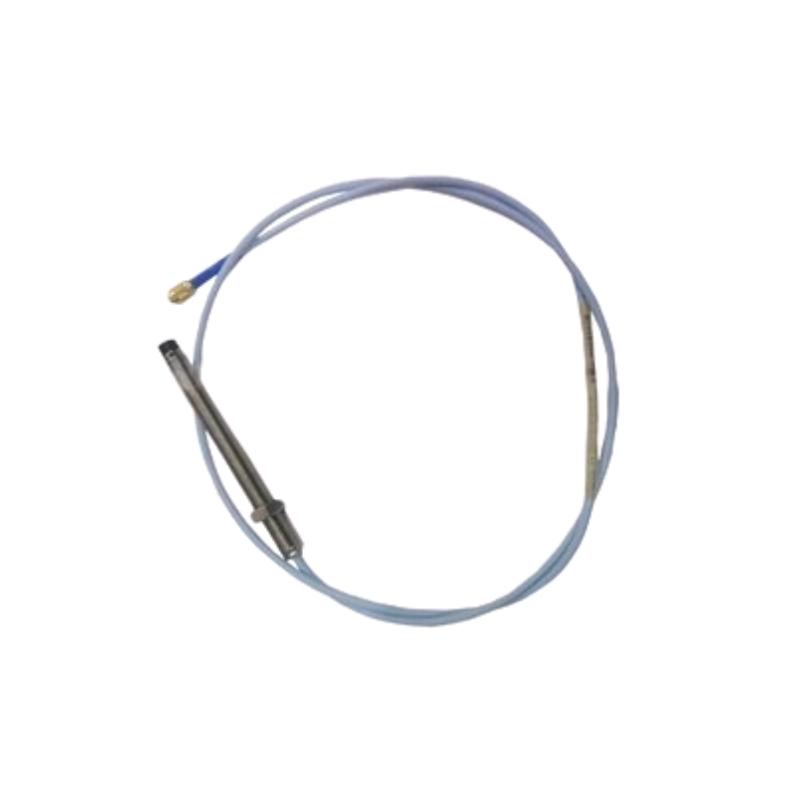

The Bently Nevada 330101-13-37-15-02-RU 3300 XL 8 mm Proximity Probe is a precision non-contact sensor designed for monitoring shaft vibration, displacement, and position in critical rotating machinery. As part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System, this probe provides accurate and stable measurement performance for industrial applications where equipment reliability and operational visibility are essential.
Based on advanced eddy-current sensing technology, the probe measures the distance between the probe tip and a conductive rotating surface without direct contact. This enables continuous monitoring of dynamic vibration signals and static shaft position values, supporting machinery condition assessment in turbines, compressors, pumps, generators, and other rotating equipment.
The 330101-13-37-15-02-RU configuration includes an 8 mm probe tip, 1.3-inch unthreaded length, 3.7-inch case length, 1.5-metre total probe length, miniature coaxial ClickLoc connector, standard cable, and reverse/metric-style configuration identification. It is designed for use with compatible 3300 XL Proximitor Sensors and monitoring systems.
Technical Specifications: Product Configuration and Mechanical Data
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-13-37-15-02-RU |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Series |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Probe Style | Standard mount configuration |
| Unthreaded Length | 1.3 inches |
| Case Length | 3.7 inches |
| Total Length | 1.5 metres |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard cable |
| Approval Option | RU configuration |
| Probe Material | Stainless steel housing |
| Target Measurement | Shaft displacement, vibration, and position |
| Linear Measurement Range | Approx. 2 mm (80 mils) |
| Recommended Gap Setting | Approx. 1.27 mm (50 mils) |
| Operating Temperature Range | Approx. -52°C to +177°C |
| Approximate Dimensions | 94 mm × 20 mm × 20 mm |
| Approximate Weight | 0.32 kg |
| System Compatibility | 3300 XL Proximitor Sensor and compatible monitoring systems |
