Product Technical Overview (Introduction)

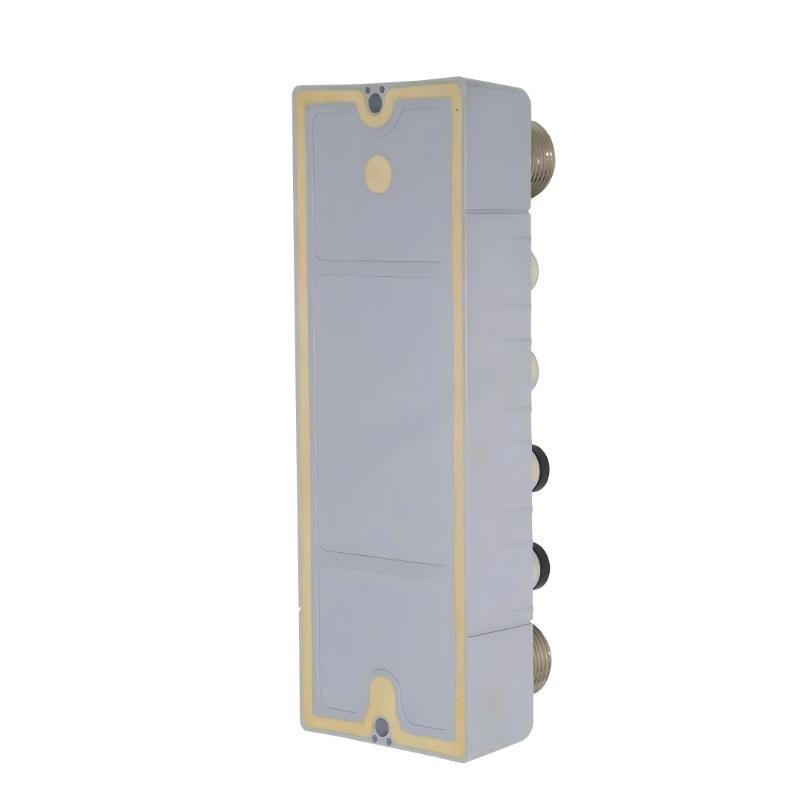

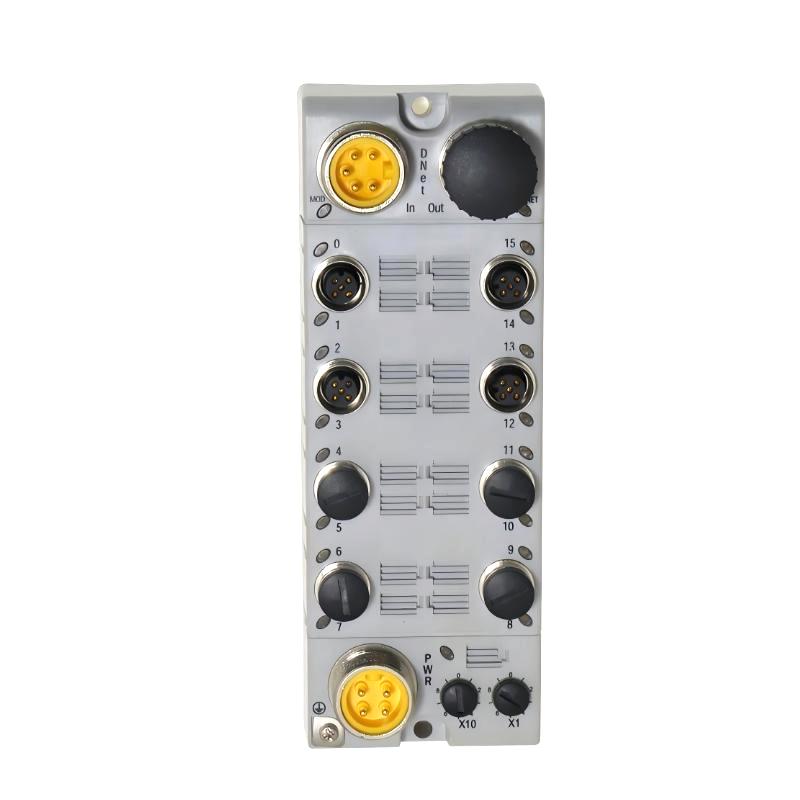

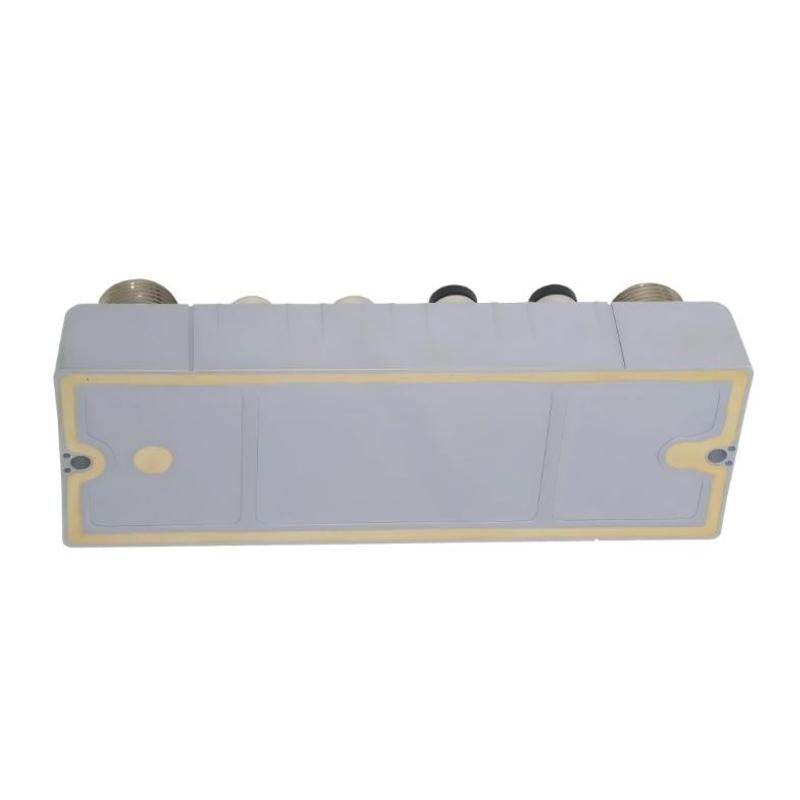

The Allen Bradley 1732D-16CFGM12MN DeviceNet I/O Module is a distributed field I/O device engineered for machine-level automation. It enables sensors and actuators to communicate efficiently with control systems via DeviceNet networks, supporting modern distributed architectures.
Featuring M12 connectors for quick installation and a rugged industrial design, this module helps simplify wiring, reduce installation time, and enhance system flexibility. Its compact form factor allows integration directly on equipment, improving overall automation efficiency and system scalability.
This module is particularly valuable in applications where decentralized control and fast field connectivity are required.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Allen Bradley |
| Model Number | 1732D-16CFGM12MN |
| Module Type | DeviceNet I/O Module |
| Communication Protocol | DeviceNet |
| I/O Type | Distributed Digital I/O |
| Connector Type | M12 Industrial Connectors |
| Installation | Machine-mounted or industrial panel integration |
| Application | Distributed automation and machine-level control |
| Operating Environment | Industrial |
| Dimensions | 179 mm × 65 mm × 43.25 mm |
| Weight | 0.392 kg (0.86 lb) |
Where This Module Is Commonly Used (Applications)
The Allen Bradley 1732D-16CFGM12MN DeviceNet I/O Module is designed for distributed automation networks where field-level connectivity and real-time data exchange are essential. It provides an efficient interface between field devices and the control system through DeviceNet communication.
Typical deployment scenarios include:
-
Distributed manufacturing automation systems
-
Packaging and material handling lines
-
Automotive production equipment control
-
Factory floor DeviceNet network integration
-
Sensor and actuator connectivity in machine automation
-
Industrial assembly and robotic systems
This module enables reliable communication and signal management in modern industrial networks.
Key Operational Advantages (Advantages)
Integrated DeviceNet Communication
Supports seamless communication between field devices and controllers over DeviceNet networks.
High-Density I/O Configuration
Allows multiple field devices to connect within a single compact module.
M12 Connector Interface
Simplifies wiring and installation in industrial environments.
Robust Industrial Housing
Designed to operate reliably under vibration, dust, and electrical noise conditions.
Efficient Distributed Architecture
Reduces panel wiring complexity and improves system scalability.
Technical FAQs (Technical FAQs)
1. What is the primary function of the 1732D-16CFGM12MN module?
It acts as a DeviceNet-based distributed I/O interface for sensors and actuators.
2. What type of network does it use?
It operates on a DeviceNet industrial communication network.
3. How are field devices connected to this module?
Through M12 industrial connectors for fast and reliable installation.
4. Is it suitable for machine-level installations?
Yes, it is designed for on-machine distributed I/O applications.
5. What type of signals does it handle?
It supports digital input and output signals.
6. Can it reduce control cabinet wiring?
Yes, distributed I/O design helps minimize centralized wiring complexity.
7. Is the module designed for harsh industrial environments?
Yes, it features industrial-grade protection and durable construction.
8. How does it integrate with PLC systems?
It communicates with PLC controllers through the DeviceNet network infrastructure.
9. What is the benefit of using M12 connectors?
They provide secure, vibration-resistant connections suitable for industrial machinery.
10. Which industries typically use this module?
Automotive manufacturing, packaging, robotics, and factory automation sectors.
