Product Introduction: Reliable Non-Contact Sensing for Industrial Machinery Protection

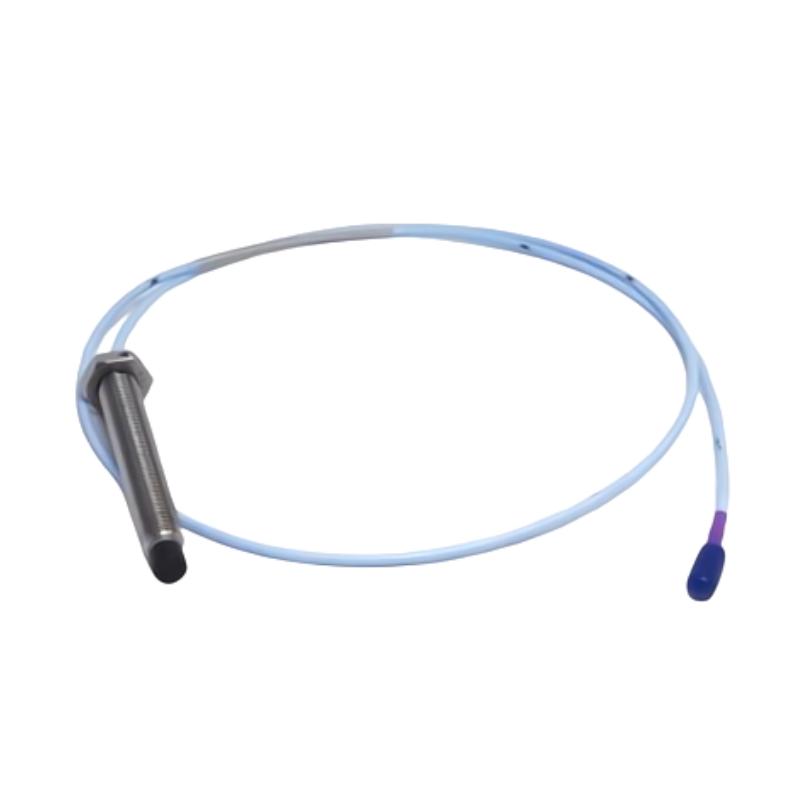

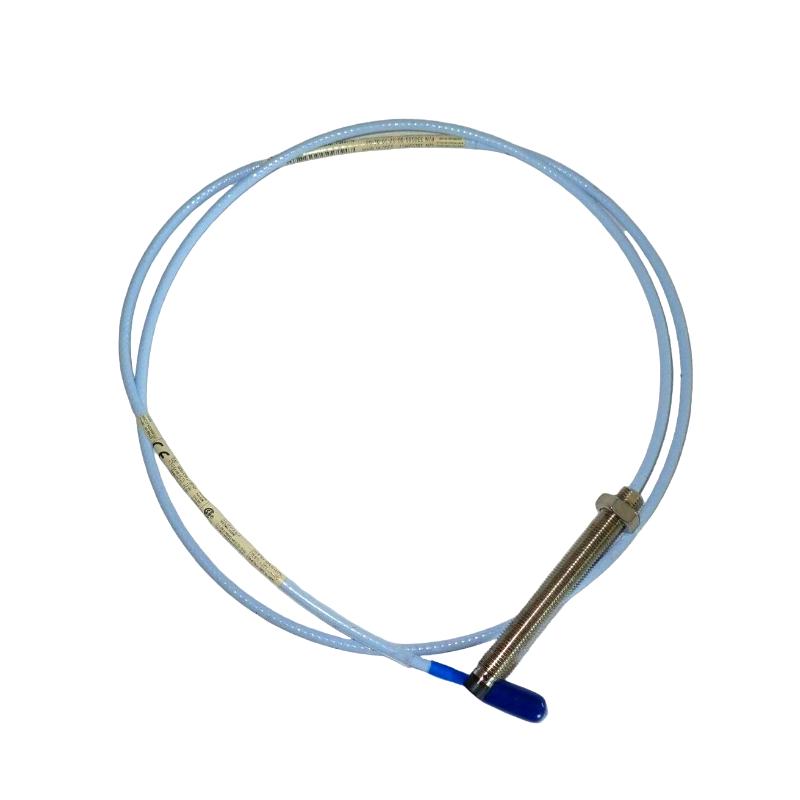

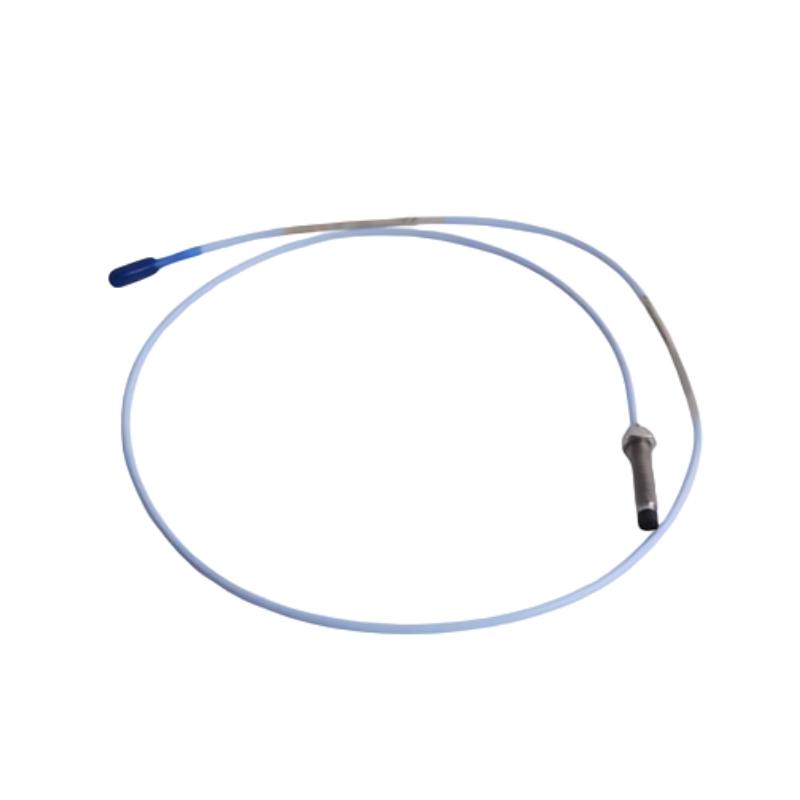

The Bently Nevada 330101-12-40-10-02-05 3300 XL 8mm Proximity Probe is a precision-engineered sensor designed for accurate measurement of shaft vibration, displacement, and position in critical rotating machinery. As part of the Bently Nevada 3300 XL 8mm Proximity Transducer System, this probe provides dependable monitoring performance for applications requiring continuous equipment condition evaluation.
Utilizing advanced eddy-current sensing technology, the probe measures the distance between the probe tip and a conductive rotating surface without physical contact. This operating principle allows stable measurement of dynamic vibration signals and static shaft position changes, making it suitable for turbines, compressors, generators, pumps, and other rotating equipment.
The 330101-12-40-10-02-05 configuration features an 8 mm probe tip, 1.2-inch unthreaded length, 4.0-inch case length, 1.0-metre total length, miniature coaxial ClickLoc connector, standard cable, and approved industrial certification options. It is designed to operate with compatible 3300 XL Proximitor Sensors as part of a complete machinery monitoring system.
Technical Specifications: Product Configuration and Mechanical Details
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-12-40-10-02-05 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Series | 3300 XL Series |
| Measurement Principle | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Probe Style | Standard mount, without armor |
| Unthreaded Length | 1.2 inches |
| Case Length | 4.0 inches |
| Total Length | 1.0 metre (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard cable |
| Probe Material | Stainless steel housing |
| Target Measurement | Shaft displacement and vibration |
| Linear Measurement Range | Approximately 2 mm (80 mils) |
| Recommended Gap Setting | Approximately 1.27 mm (50 mils) |
| Operating Temperature Range | Approximately -52°C to +177°C |
| Approximate Dimensions | 102 mm × 20 mm × 20 mm |
| Approximate Weight | 0.323 kg |
| System Compatibility | 3300 XL Proximitor Sensor and compatible monitoring systems |
