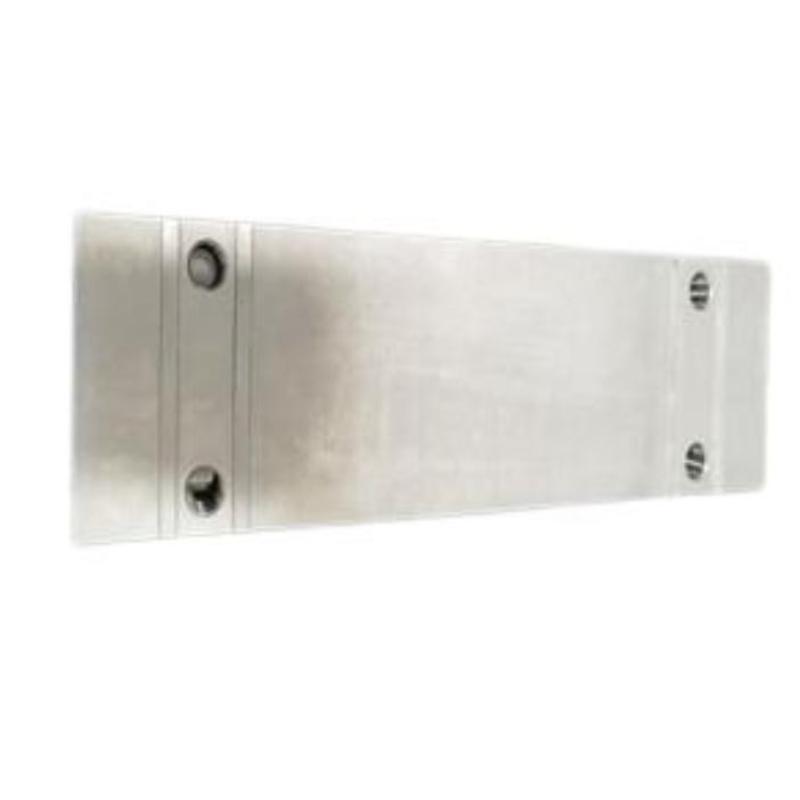

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB PFTL211-CE Load Cells

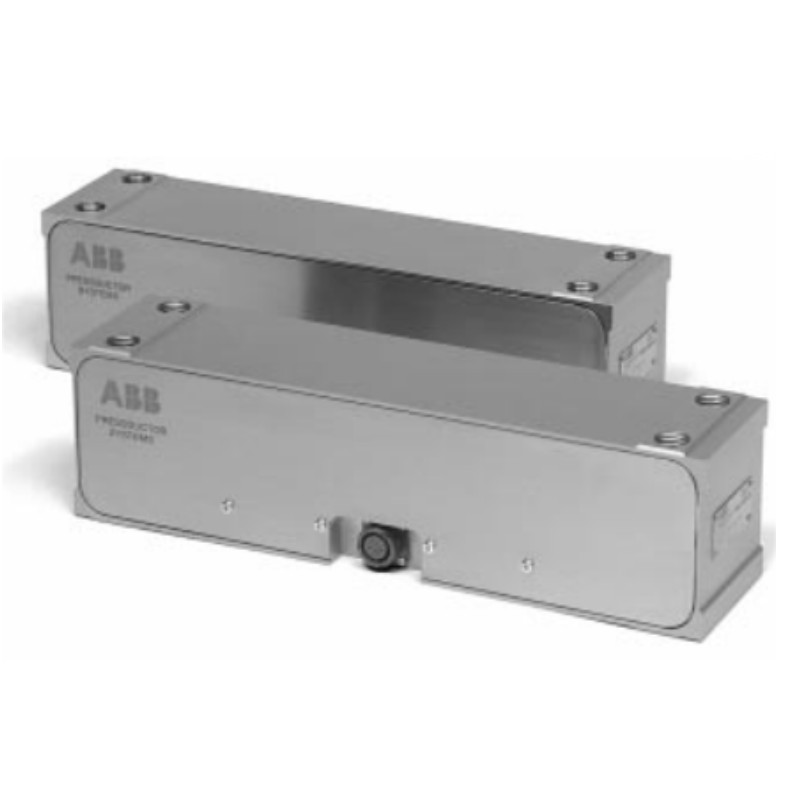

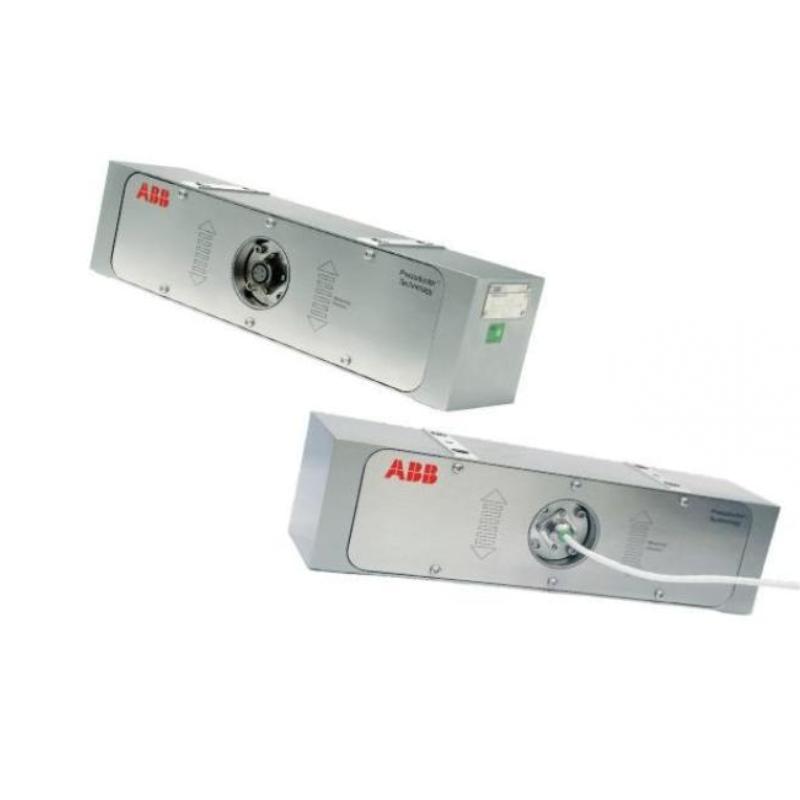

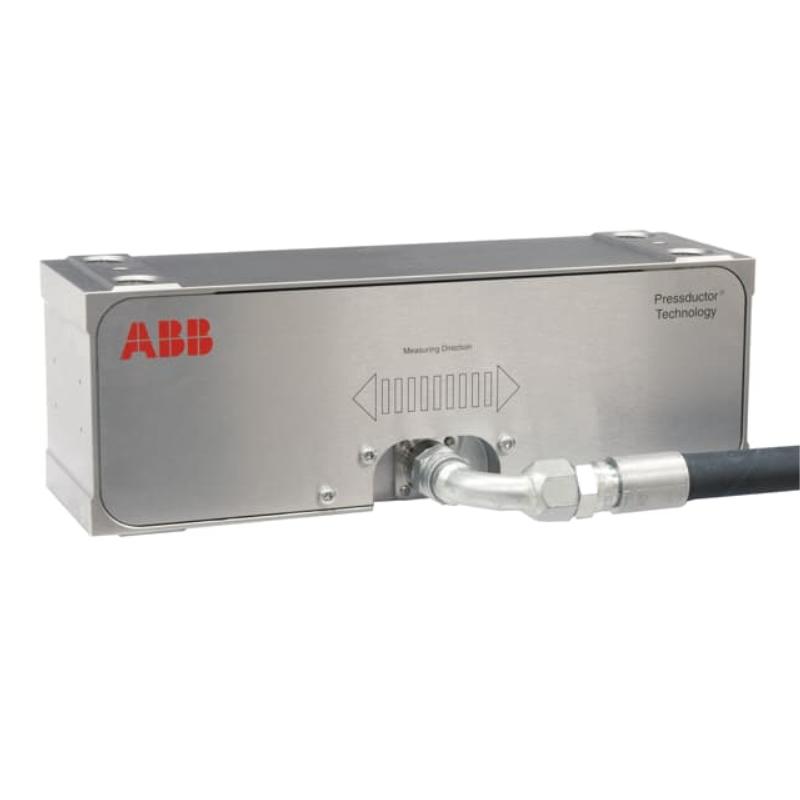

Name: ABB PFTL211-CE Load Cells
Brand: ABB PLC
SKU: 4793
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PFTL211-CE
Product Origin:
Product Dimensions:150 x 120 x 90 mm
Product Weight:1.5kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Overview — Robust Force Sensing for Industrial Tension Measurement

The ABB PFTL211-CE Load Cell is an industrial-grade force transducer engineered to measure horizontal tensile forces, particularly in strip tension and looper applications such as hot rolling mills and web tension systems. Its durable construction and advanced sensing technology make it ideal for continuous heavy-duty operation where precise force measurement and long service life are essential.

Key Technical Features

Specification	Detail
Product Type	Pressductor PillowBlock Load Cell
Model	PFTL211-CE
Measurement Principle	Pressductor® magnetoelastic technology
Nominal Load Capacity	20 kN or 50 kN
Extended Load (Measuring Direction)	30 kN or 75 kN
Overload Capacity (Measuring Direction)	200–500 kN
Permitted Transverse Load	100–250 kN
Deflection at Nominal Load	0.020 mm – 0.050 mm
Spring Constant	1000 kN/mm
Housing	Rugged industrial construction
Operating Environment	Dust, steam, liquids, corrosive atmospheres
Typical Weight	Approx. 105 kg (depending on configuration)

Applications

The PFTL211-CE excels in industrial force measurement where tension loads must be monitored accurately:

Strip tension feedback in hot rolling mill loops
Force monitoring in web handling and slitting lines
Load feedback in industrial automation systems
Tension control in metal, paper, and plastic processing
Heavy-duty process applications requiring continuous force measurement

Its bidirectional sensing ability makes it particularly suitable for high-precision control loops.

Advantages & Strengths

High Overload Resistance — Withstands extreme transient loads without damage.
Pressductor® Sensor Technology — Magnetoelastic force sensing provides stable, low-impedance signals even under repeated load cycles.
Mill-Proof Durability — Engineered for harsh environments with strong resistance to contaminants and mechanical stress.
Bidirectional Force Detection — Measures tension loads effectively in both axial directions.
Low Deflection — Minimal mechanical deformation under load preserves structural integrity and measurement accuracy.

Technical FAQs

What does the PFTL211-CE measure?
Horizontal tensile forces in industrial applications.
Which sensing technology does it use?
Pressductor® magnetoelastic force transducers, known for stability and overload tolerance.
What load ranges are available?
Typical nominal capacities are 20 kN and 50 kN.
Can it withstand overload conditions?
Yes, it tolerates measured overloads in the hundreds of kilonewtons.
Is it suitable for harsh mill environments?
Yes, it operates reliably in dust, steam, liquids, and corrosive atmospheres.
Does it detect force in both directions?
Yes, it senses tensile forces in both axial directions.
What is its typical deflection under nominal load?
Deflection ranges from approximately 0.020 mm to 0.050 mm at nominal load.
Is this load cell suitable for continuous use?
Yes, designed for continuous operation in industrial systems.
Does the measurement signal require special conditioning?
Factory calibration and signal conditioning are typically required as part of system integration.
Where is this product most often deployed?
Hot rolling mills, web tension control, and high-load industrial automation contexts.
