Product Introduction: Advanced Shaft Measurement Solution for Industrial Machinery

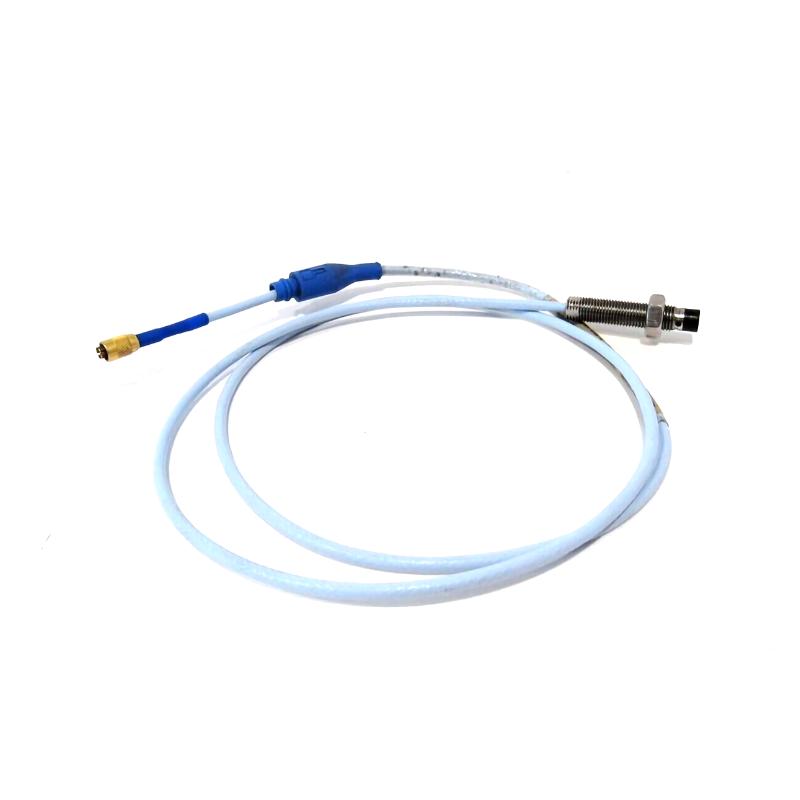

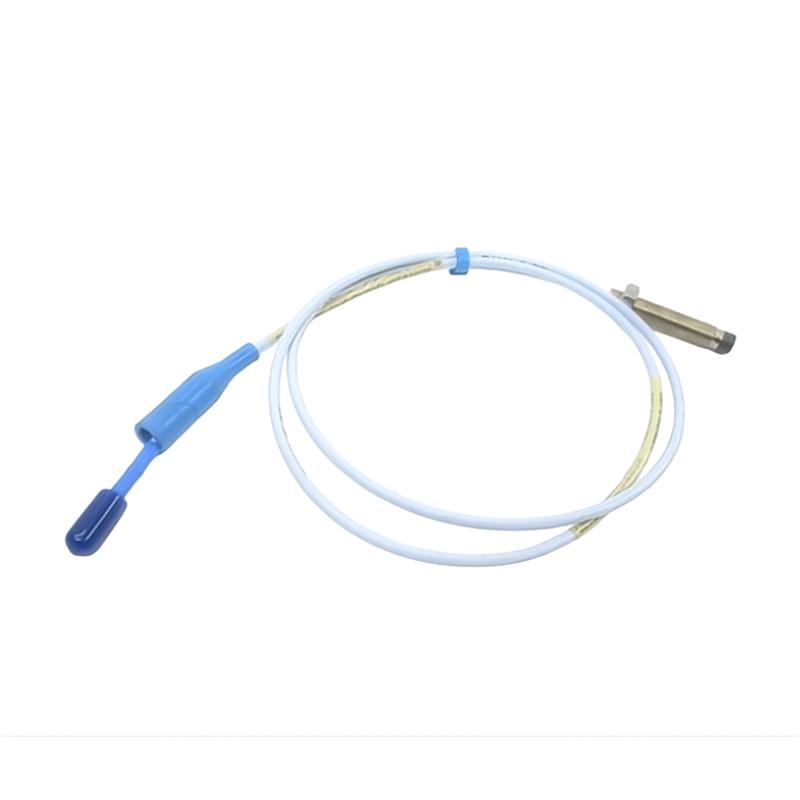

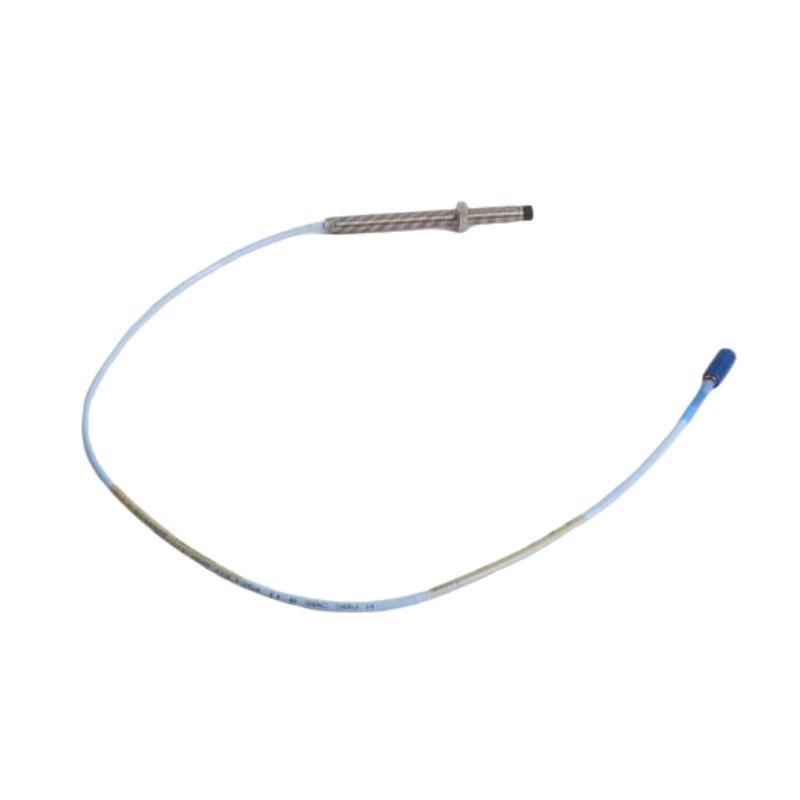

The Bently Nevada 330101-10-40-10-02-05 3300 XL 8mm Proximity Probe is a precision non-contact sensor designed for accurate vibration and displacement monitoring of rotating machinery. As a member of the Bently Nevada 3300 XL 8 mm Proximity Transducer System family, this probe provides dependable measurement performance for critical equipment applications where reliability, accuracy, and long-term stability are essential.
Using proven eddy-current sensing technology, the probe measures the distance between the sensor tip and a conductive shaft surface without physical contact. This allows the system to capture both dynamic vibration signals and static shaft position information, making it suitable for turbines, compressors, pumps, generators, and other rotating equipment monitoring applications.
The 330101-10-40-10-02-05 configuration features an 8 mm probe tip, 1.0-inch unthreaded length, 4.0-inch overall case length, 1.0-metre total length, miniature coaxial ClickLoc connector, standard cable, and CSA, ATEX, IECEx approval options. It is designed for integration with compatible 3300 XL Proximitor Sensors and monitoring systems.
Technical Specifications: Product Configuration and Mechanical Data
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-10-40-10-02-05 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Series | 3300 XL Series |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Probe Construction Type | Standard mount, without armor |
| Unthreaded Length | 1.0 inch |
| Overall Case Length | 4.0 inches |
| Total Length | 1.0 metre (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard cable |
| Agency Approvals | CSA, ATEX, IECEx |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303/304 stainless steel |
| Linear Measurement Range | Approximately 2 mm (80 mils) |
| Recommended Gap Setting | Approximately 1.27 mm (50 mils) |
| Operating Temperature Range | Approx. -52°C to +177°C |
| Approximate Dimensions | 102 mm × 20 mm × 20 mm |
| Approximate Weight | 0.323 kg |
| System Compatibility | 3300 XL Proximitor Sensor and compatible monitoring systems |
