Product Introduction: Precision Eddy-Current Sensing for Rotating Machinery Monitoring

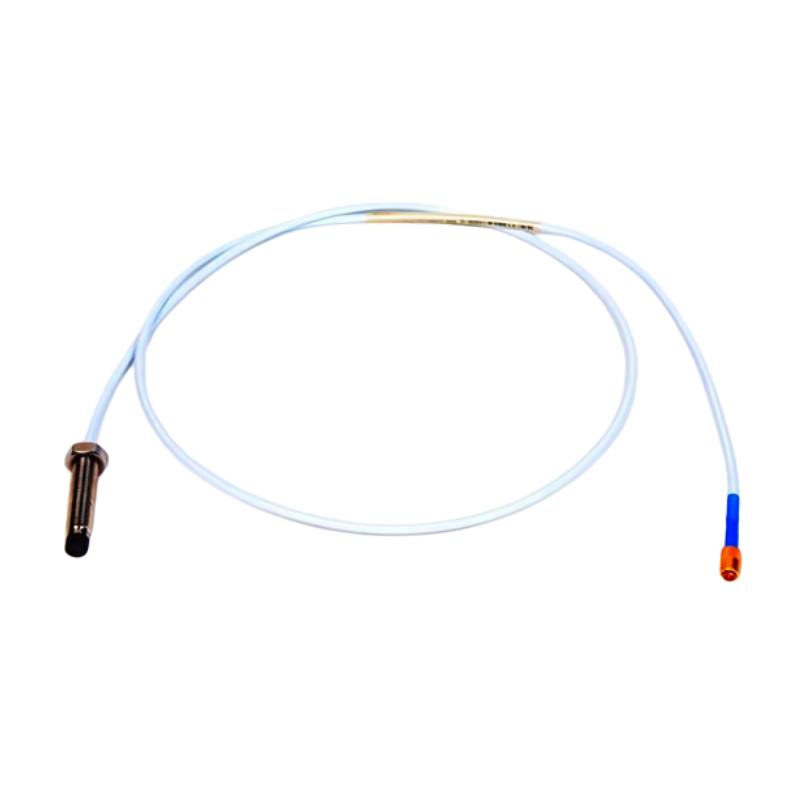

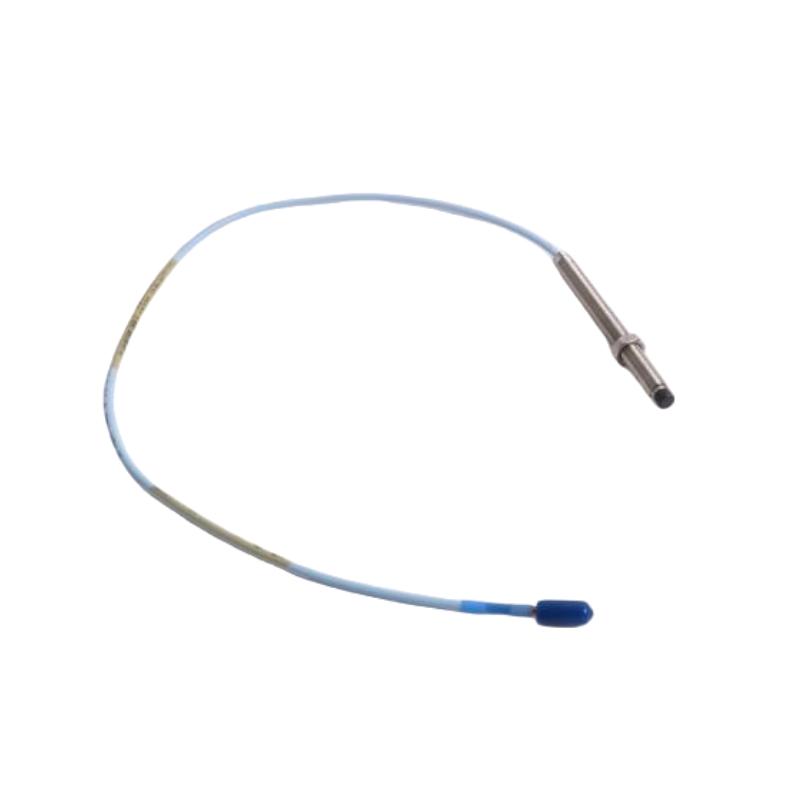

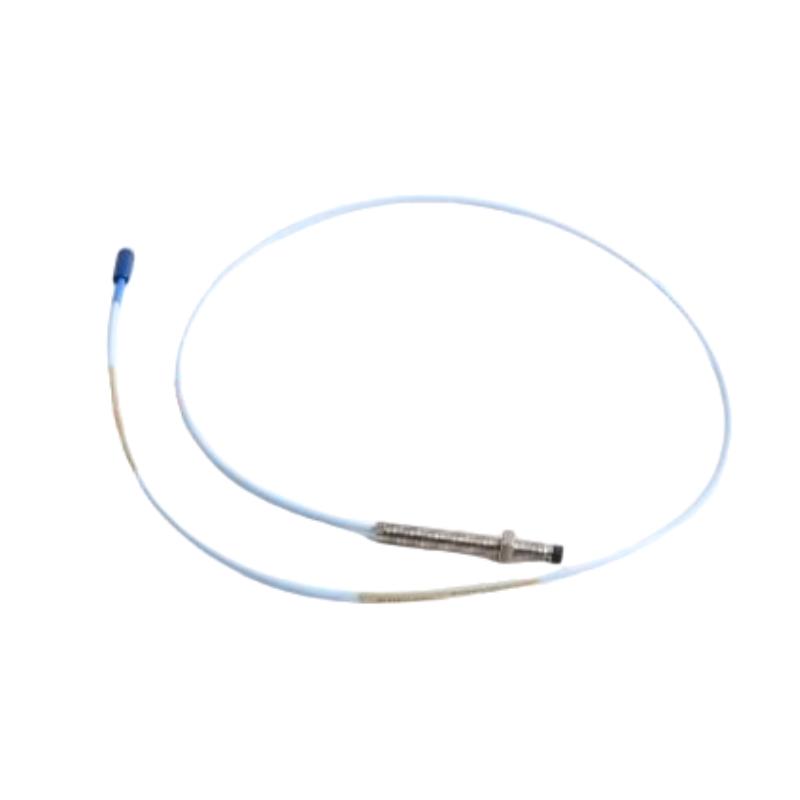

The Bently Nevada 330101-08-20-10-02-00 3300 XL 8mm Proximity Probe is a high-precision non-contact displacement sensor designed for continuous monitoring of rotating equipment. As part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System, this probe provides accurate shaft vibration, position, and movement measurements for industrial machinery condition monitoring applications.
Based on proven eddy-current sensing technology, the probe measures the distance between the probe tip and a conductive target surface without physical contact. This allows reliable detection of dynamic vibration signals and static shaft position changes, making it suitable for turbines, compressors, pumps, generators, and other critical rotating equipment.
The 330101-08-20-10-02-00 configuration features an 8 mm probe tip, 0.8-inch unthreaded length, 2.0-inch overall case length, 1.0-metre total system length, and miniature coaxial ClickLoc connector with standard cable. It is designed for integration with compatible 3300 XL Proximitor Sensors and monitoring systems.
Technical Specifications: Product Configuration and Mechanical Details
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-08-20-10-02-00 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Series | 3300 XL Series |
| Measurement Principle | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.8 inch |
| Overall Case Length | 2.0 inches |
| Total Length | 1.0 metre (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard cable |
| Agency Approval | Not required |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303/304 stainless steel |
| Linear Range | Approximately 2 mm |
| Operating Temperature Range | Approximately -51°C to +177°C |
| Approximate Dimensions | 50 mm × 20 mm × 20 mm |
| Approximate Weight | 0.323 kg |
| System Compatibility | 3300 XL Proximitor Sensor and extension cable systems |
