Product Introduction: Precision Monitoring Component for Rotating Equipment Reliability

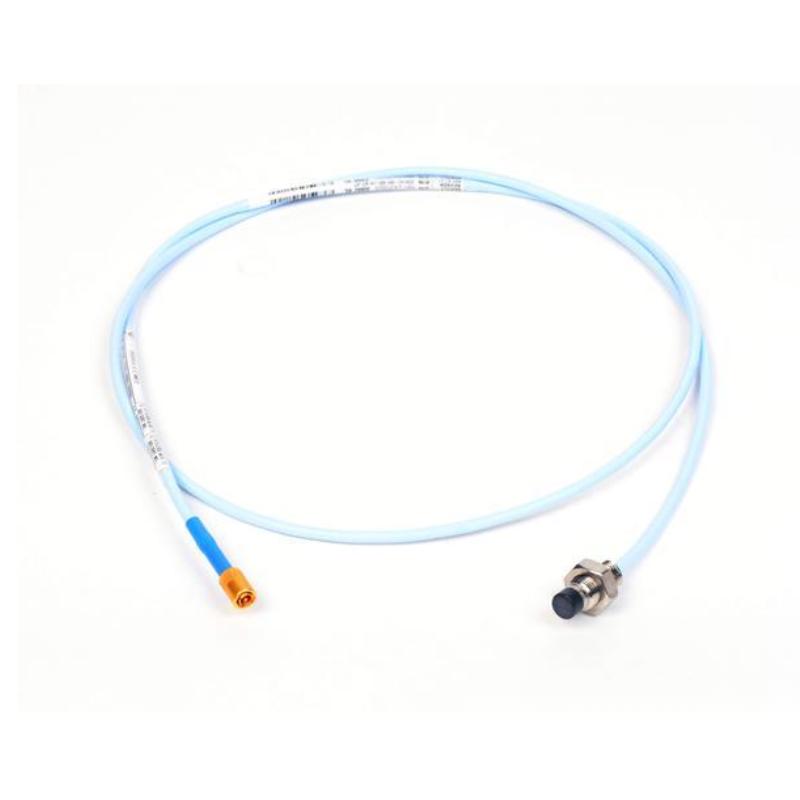

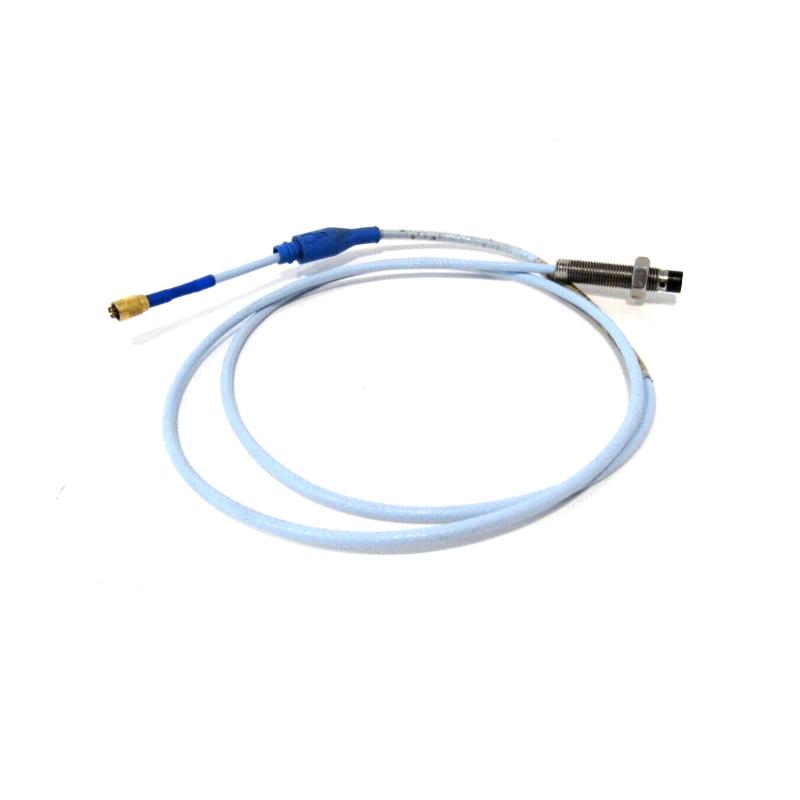

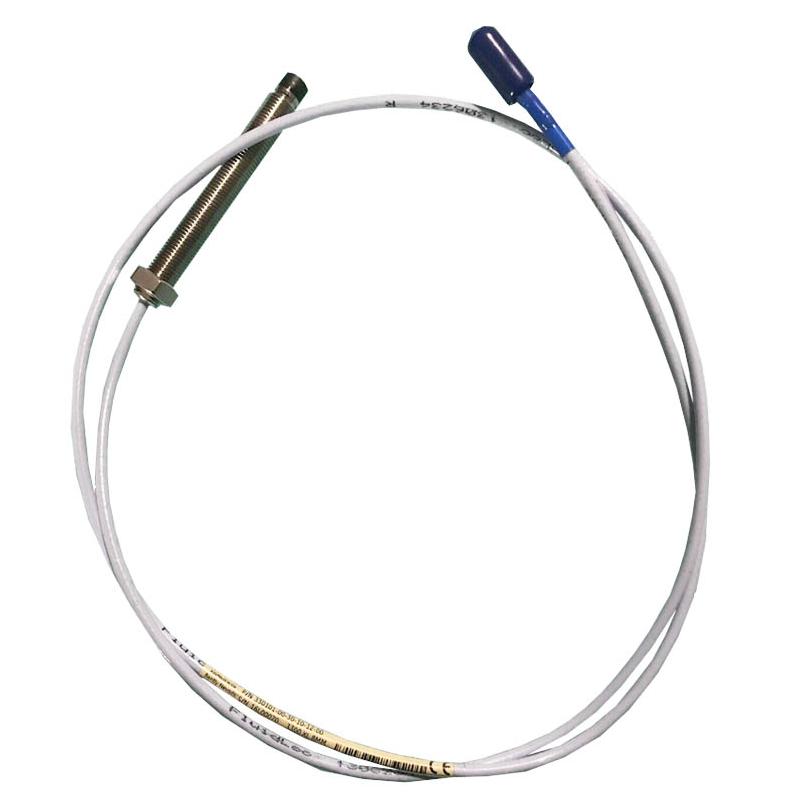

The Bently Nevada 330101-13-37-10-02-05 3300 XL 8 mm Proximity Probe is a high-accuracy non-contact displacement sensor designed for monitoring shaft vibration, relative position, and dynamic movement in industrial rotating machinery. As a component of the Bently Nevada 3300 XL 8 mm Proximity Transducer System, this probe delivers stable measurement performance for applications requiring dependable machinery condition monitoring.

The probe uses eddy-current sensing technology to measure the gap between the probe tip and a conductive target surface without direct mechanical contact. This technology enables reliable detection of shaft displacement and vibration signals, supporting condition monitoring programs for turbines, compressors, pumps, generators, and other critical rotating equipment.

The 330101-13-37-10-02-05 configuration includes an 8 mm sensing tip, 1.3-inch unthreaded length, 3.7-inch case length, 1.0-metre total probe length, miniature coaxial ClickLoc connector, standard cable, and CSA/ATEX/IECEx approval options. It is designed for use with compatible Bently Nevada 3300 XL Proximitor Sensors as part of a complete monitoring system.

Technical Specifications: Product Details and Mechanical Data
