Product Introduction: Advanced Proximity Sensing for Industrial Machinery Monitoring

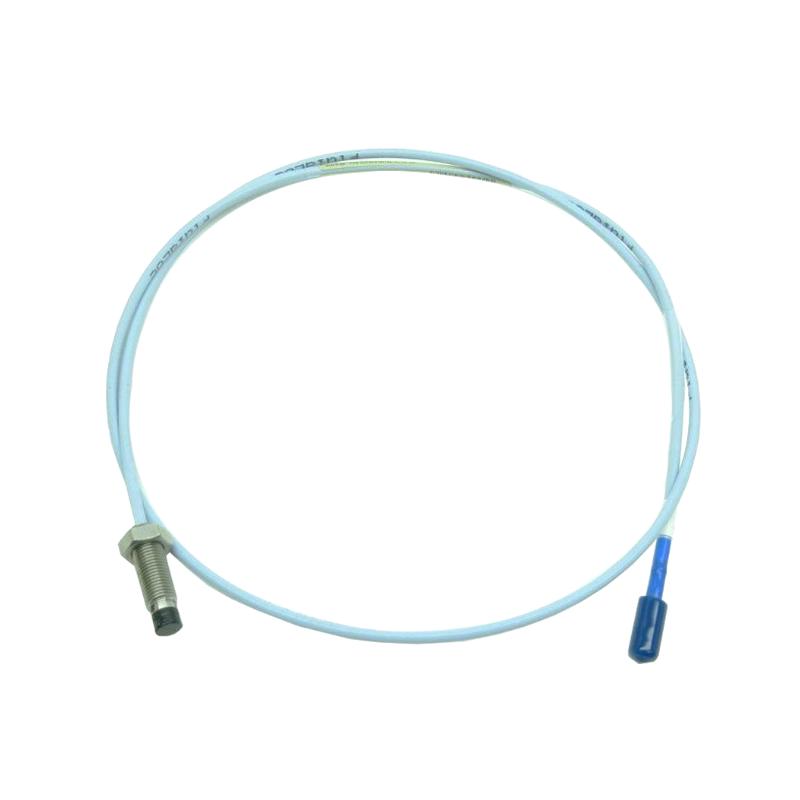

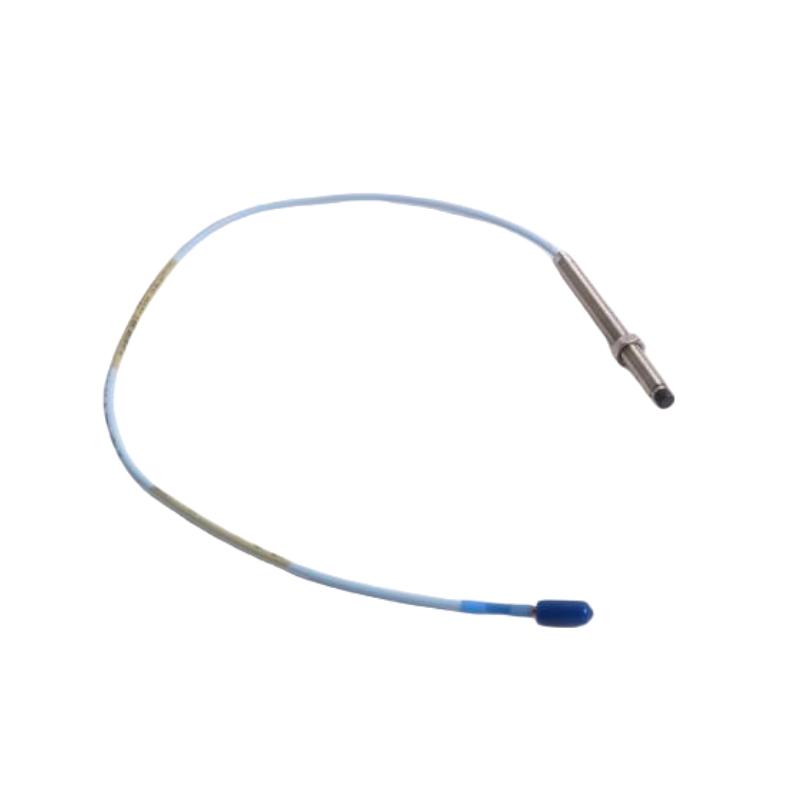

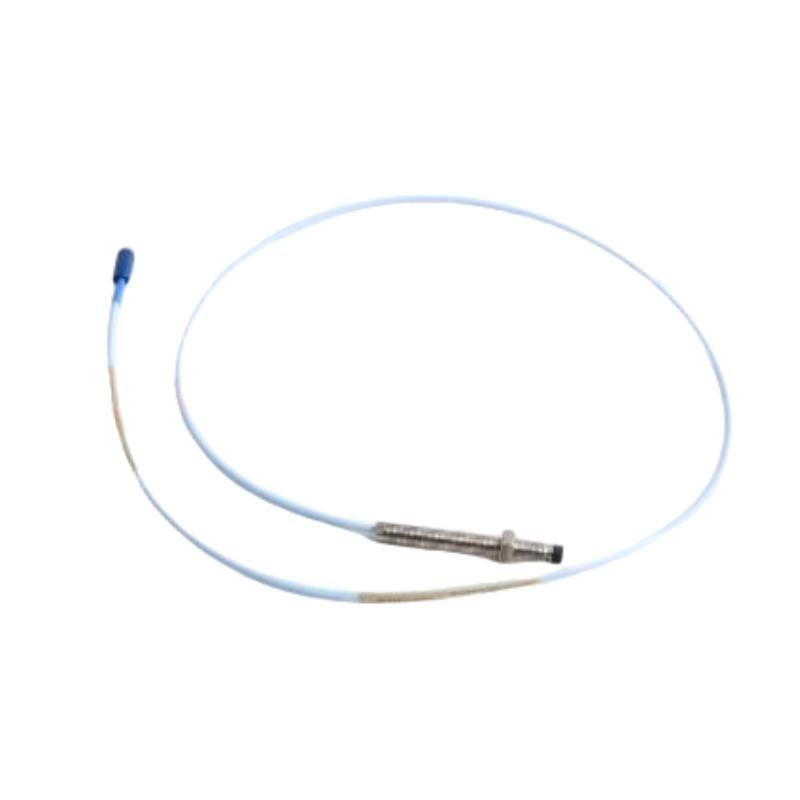

The Bently Nevada 330101-00-49-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact displacement sensor designed for accurate vibration and position monitoring of critical rotating equipment. As part of the widely adopted 3300 XL 8 mm Proximity Transducer System, this probe provides reliable shaft measurement performance for machinery protection and predictive maintenance applications.
Designed with advanced eddy-current sensing technology, the 330101-00-49-10-02-05 measures the distance between the probe tip and the observed shaft surface without physical contact. This allows continuous monitoring of radial vibration, axial position, and shaft movement while maintaining stable performance in demanding industrial environments.
The probe features a 5-metre total length configuration, 8 mm probe tip diameter, standard mounting thread, and ClickLoc connector design. It is engineered for compatibility with Bently Nevada 3300 XL monitoring systems and is commonly applied in turbines, compressors, pumps, and other high-value rotating machinery.
Technical Specifications: Product Configuration and Mechanical Data
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-49-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Series |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF mounting thread |
| Probe Length | Standard configuration |
| Total Length | 5.0 metres |
| Connector Type | ClickLoc coaxial connector |
| Connector Option | Standard connector configuration |
| Temperature Range | Approximately -51°C to +177°C |
| Target Material | Conductive metallic surfaces |
| Housing Material | Stainless steel |
| Approximate Dimensions | 152 mm × 22 mm × 22 mm (probe assembly reference) |
| Approximate Weight | 0.25 kg |
| System Compatibility | 3300 XL Proximitor Sensor and monitoring systems |
| Application Category | Machinery vibration and displacement monitoring |
