Product Introduction: Reliable Vibration Measurement for Rotating Machinery Protection

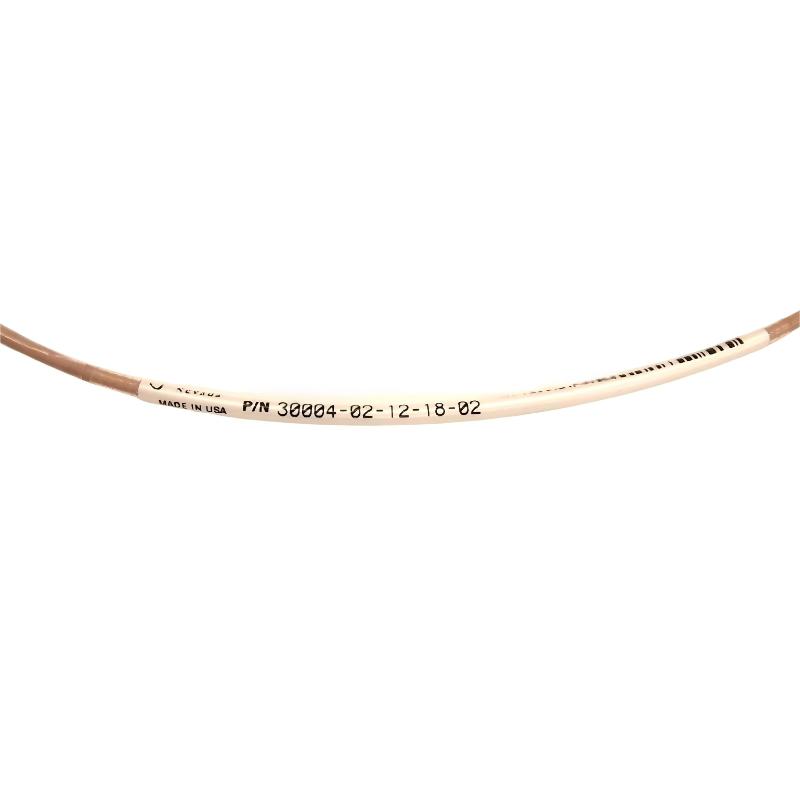

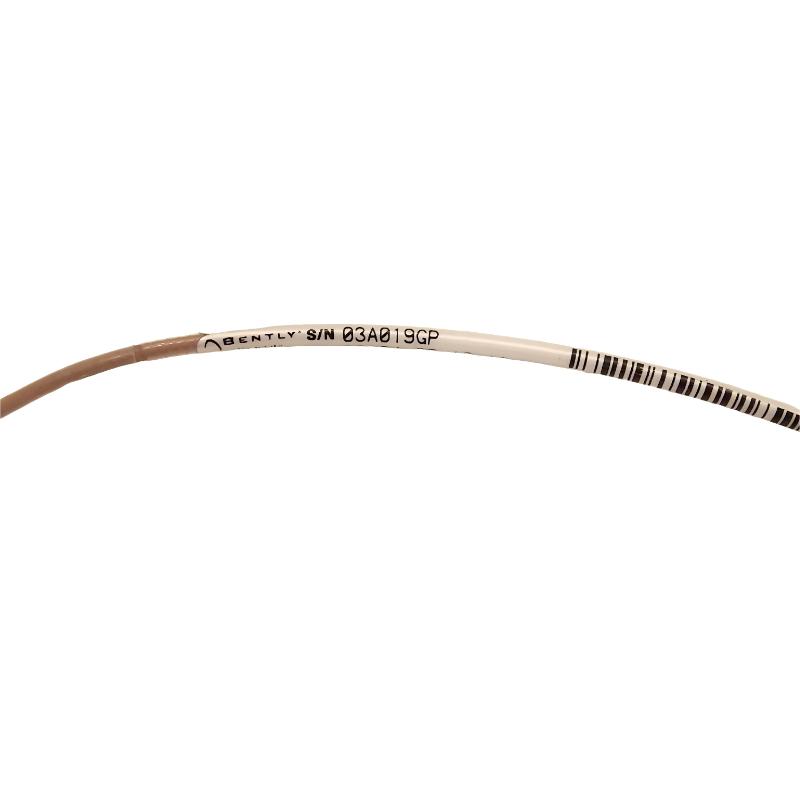

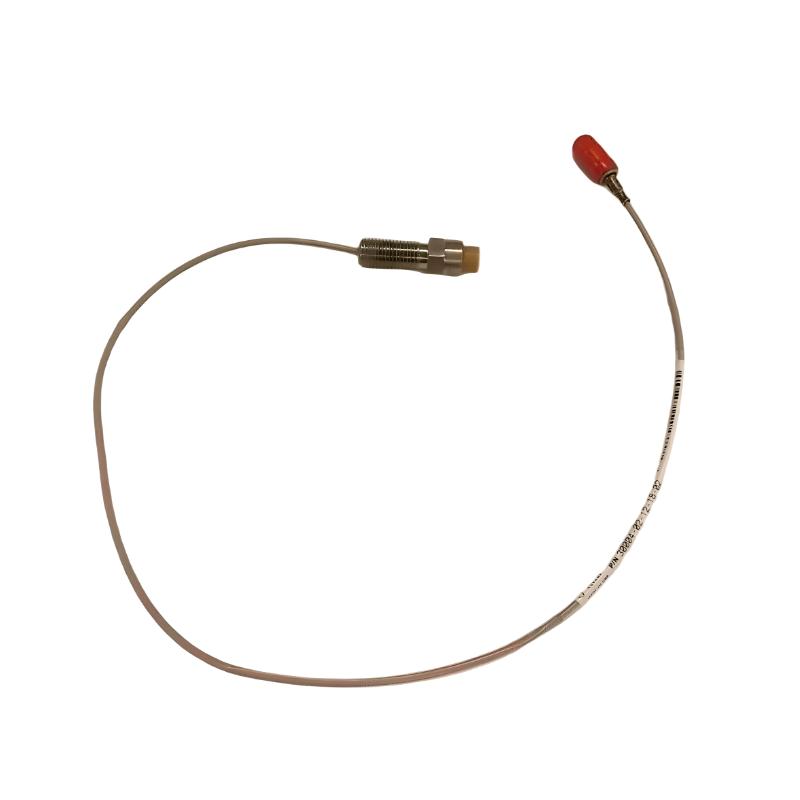

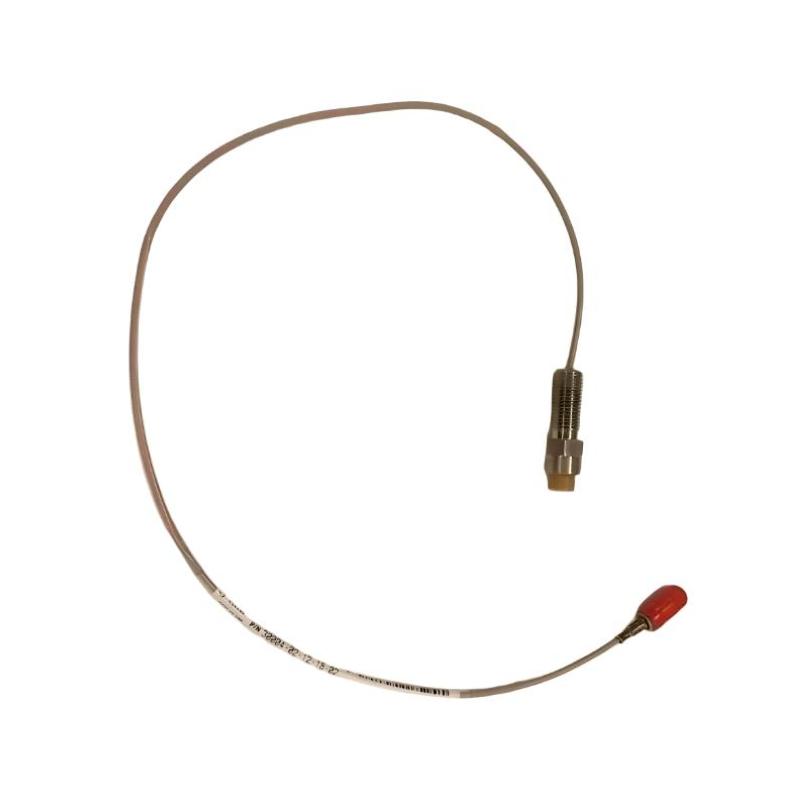

The Bently Nevada 30004-02-12-18-02 Proximity Probe is a precision sensing component designed for industrial vibration and displacement monitoring applications. Developed for integration into Bently Nevada proximity measurement systems, this probe provides accurate non-contact measurement of shaft movement, helping operators maintain reliable condition monitoring of critical rotating equipment.
Featuring a compact probe design and an 18-inch cable configuration, the 30004-02-12-18-02 is suitable for applications requiring dependable vibration measurement in demanding industrial environments. The probe uses eddy-current sensing technology to detect changes in the distance between the probe tip and the rotating shaft target, enabling continuous monitoring of dynamic and static machinery conditions.
Designed with industrial durability in mind, this Bently Nevada proximity probe supports applications across power generation, oil and gas, petrochemical, and heavy manufacturing industries where equipment reliability and predictive maintenance are critical priorities.
Technical Specifications: Product Details and Mechanical Information
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 30004-02-12-18-02 |
| Product Type | Proximity Probe |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Cable Length | 18 inches |
| Connector Type | Gold-plated ClickLoc connector |
| Measurement Application | Vibration, displacement, shaft position monitoring |
| Output Sensitivity | Approximately 10 mV/µm |
| Measurement Range | Approximately ±1 mm to ±5 mm depending on system configuration |
| Operating Temperature Range | Approximately -40°C to +120°C |
| Housing Material | Stainless steel |
| Mounting Style | Threaded proximity probe configuration |
| Approximate Dimensions | 150 mm × 20 mm × 20 mm |
| Approximate Weight | 0.08 kg |
| Application Category | Rotating machinery condition monitoring |
