Product Introduction: Stainless Steel Housing for Reliable Proximity Monitoring

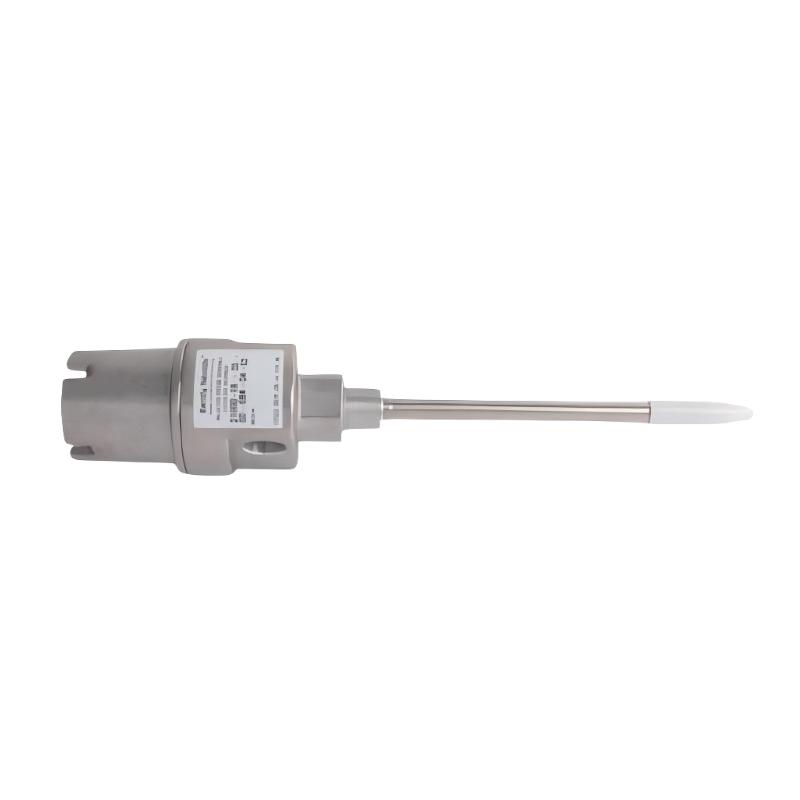

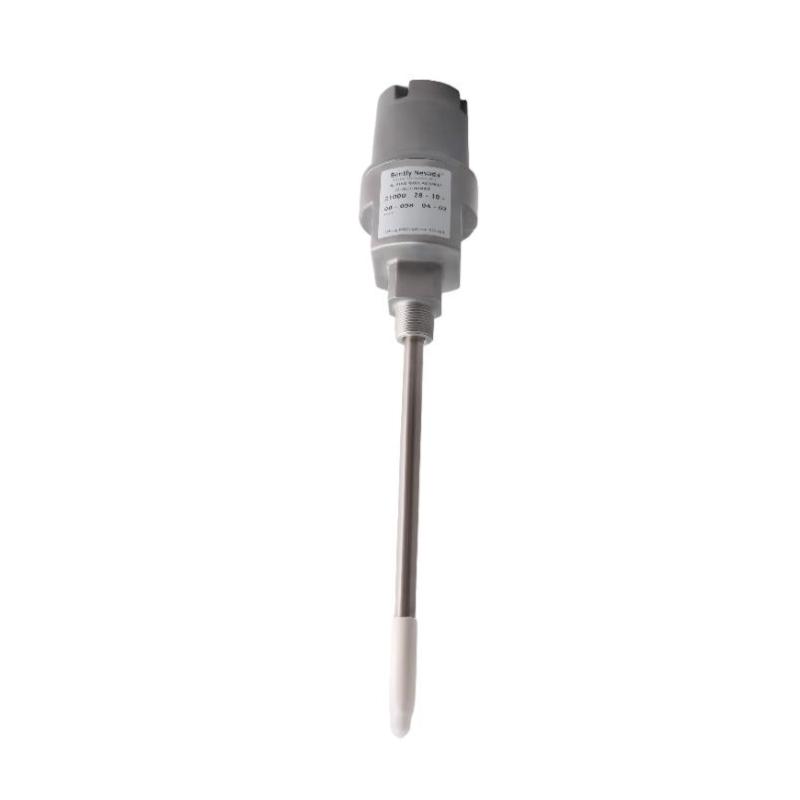

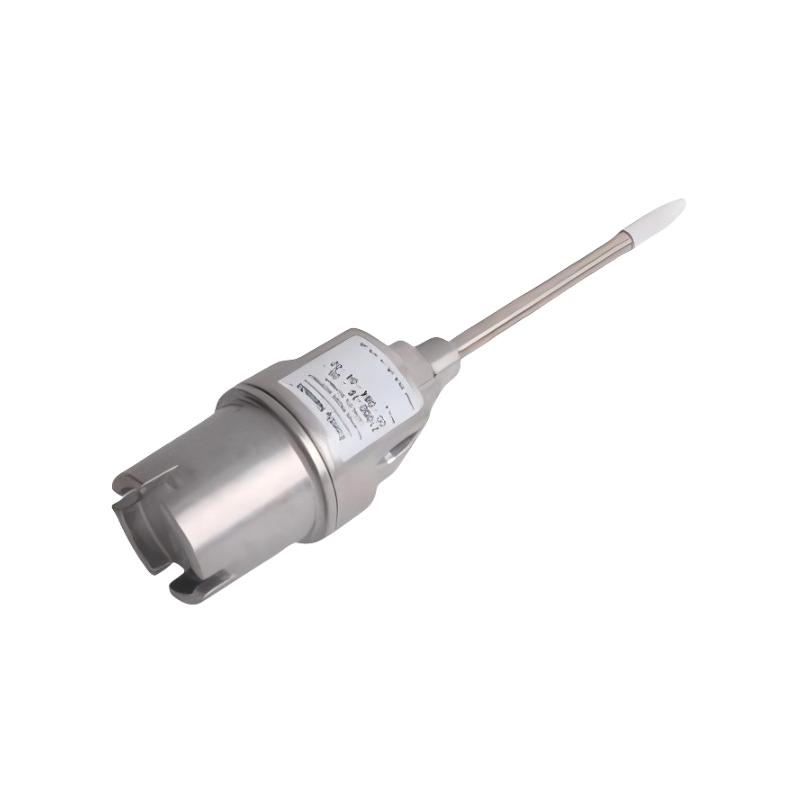

The Bently Nevada 24701-28-05-00-070-04-02 Proximity Probe Housing Assembly is designed to provide a secure and durable external mounting solution for proximity probes used in industrial machinery condition monitoring systems. Developed for demanding rotating equipment applications, this assembly protects the sensing element while maintaining accurate probe positioning for dependable vibration and displacement measurement.
As part of the Bently Nevada 24701 stainless steel housing family, this configuration includes a 3300 XL 8 mm proximity probe with multiple approvals, a 0.5 metre probe cable, no standoff adapter, and a 7.0-inch probe penetration length. The assembly uses a 3/4-14 NPT mounting connection with a dedicated fitting arrangement, making it suitable for installations where mechanical strength and long-term reliability are important.
The 24701 series combines a stainless steel housing structure with a probe sleeve, sealing elements, threaded ports, and mounting accessories to create a complete external probe installation solution for industrial machinery monitoring.
Technical Specifications: Product Configuration and Mechanical Data
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 24701-28-05-00-070-04-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 24701 Stainless Steel Housing Series |
| Compatible Probe | 3300 XL 8 mm Proximity Probe |
| Probe Option | 28 – 3300 XL 8 mm probe with multiple approvals |
| Probe Cable Length | 0.5 metre (20 inches) |
| Standoff Adapter | None |
| Probe Penetration Length | 7.0 inches |
| Fittings Option | One 3/4-14 NPT plug only |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | 303 stainless steel body with 304 stainless steel sleeve |
| Housing Design | Dome cover, threaded ports, probe sleeve, sealing components |
| Approximate Dimensions | 220 mm × 85 mm × 85 mm |
| Approximate Weight | 1.8 kg (4.1 lb) without fittings |
| Application Type | Industrial machinery condition monitoring |
