Product Introduction: Proven Proximity Measurement Technology for Industrial Machinery

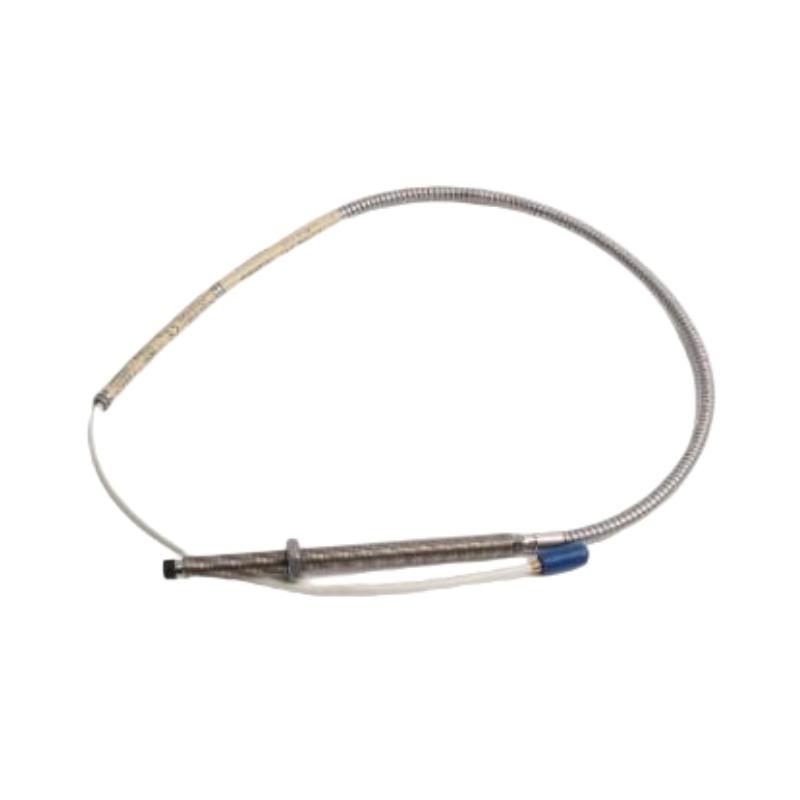

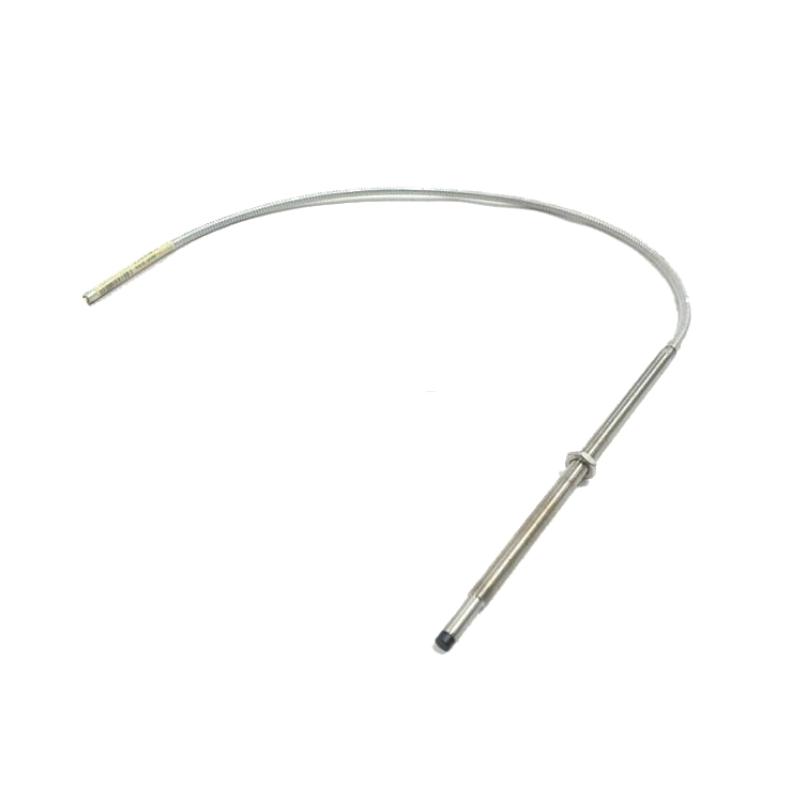

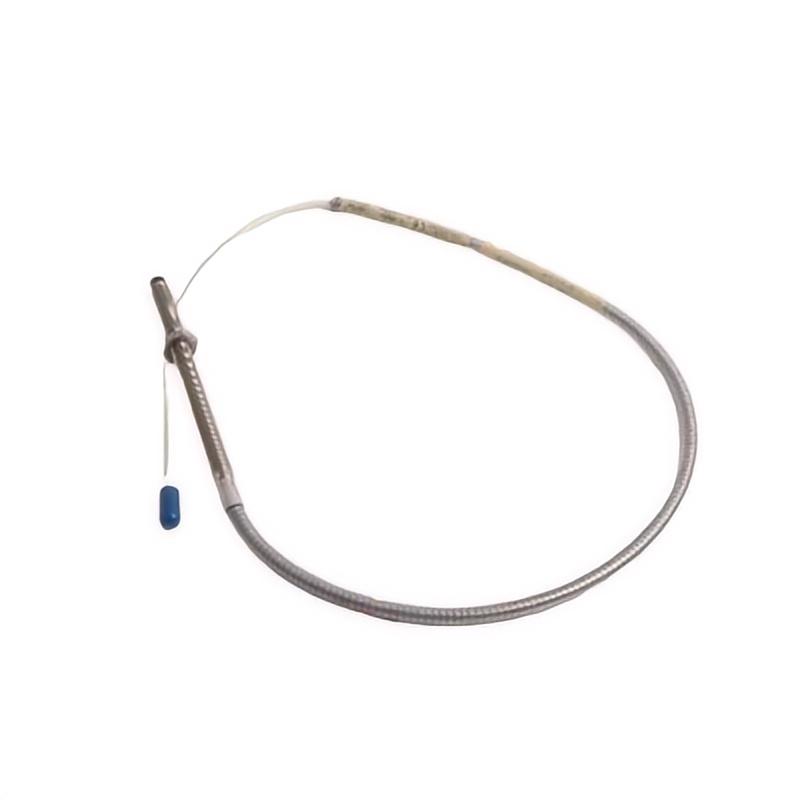

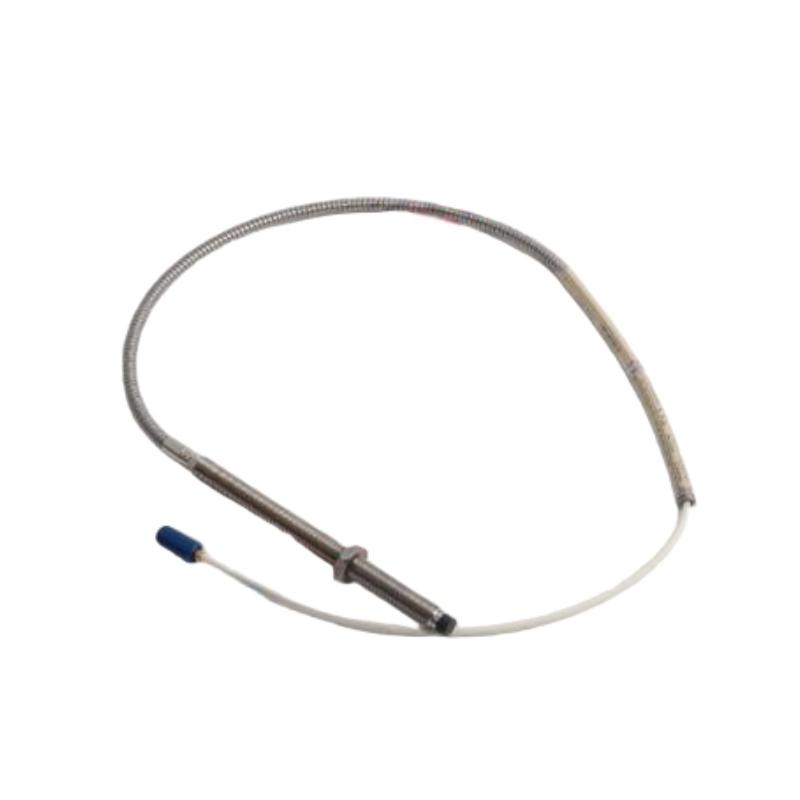

The Bently Nevada 22810-00-05-10-02 7200 Series 8mm Standard Mount Probe is a non-contacting proximity sensor designed for accurate measurement of shaft displacement, vibration, and position in rotating machinery applications. Built for industrial reliability, this probe provides precise gap-to-voltage measurement performance and is widely used in machinery condition monitoring systems.
As part of the Bently Nevada 7200 Series Proximity Transducer System, the 22810-00-05-10-02 features an 8 mm probe tip diameter, standard mount configuration, 0.5-inch minimum unthreaded length, 1.0 metre total length, and miniature male coaxial connector. The probe construction uses high-performance PPS (polyphenylene sulfide) material, offering excellent mechanical strength and resistance to demanding industrial environments.
Designed for applications requiring dependable non-contact measurement, this standard mount probe delivers consistent performance for monitoring critical rotating equipment such as turbines, compressors, pumps, and industrial drive systems.
Technical Specifications: Detailed Product Information
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 22810-00-05-10-02 |
| Product Type | 7200 Series 8mm Standard Mount Probe |
| Probe Diameter | 8 mm |
| Probe Technology | Non-contacting eddy current proximity measurement |
| Mounting Type | Standard Mount |
| Series | 7200 Series Proximity Transducer System |
| Unthreaded Length Option | 0.0 inch minimum |
| Overall Case Length Option | 0.5 inch minimum |
| Total Length | 1.0 metre (39 inches) |
| Connector Type | Miniature male coaxial connector |
| Probe Material | Polyphenylene sulfide (PPS) |
| Cable Type | Coaxial cable |
| Approximate Dimensions | 220 mm × 200 mm × 15 mm (package size reference) |
| Approximate Weight | 0.14 kg |
| Measurement Application | Shaft displacement, vibration, and position monitoring |
