Product Introduction: Precision Mounting Protection for Machinery Monitoring Applications

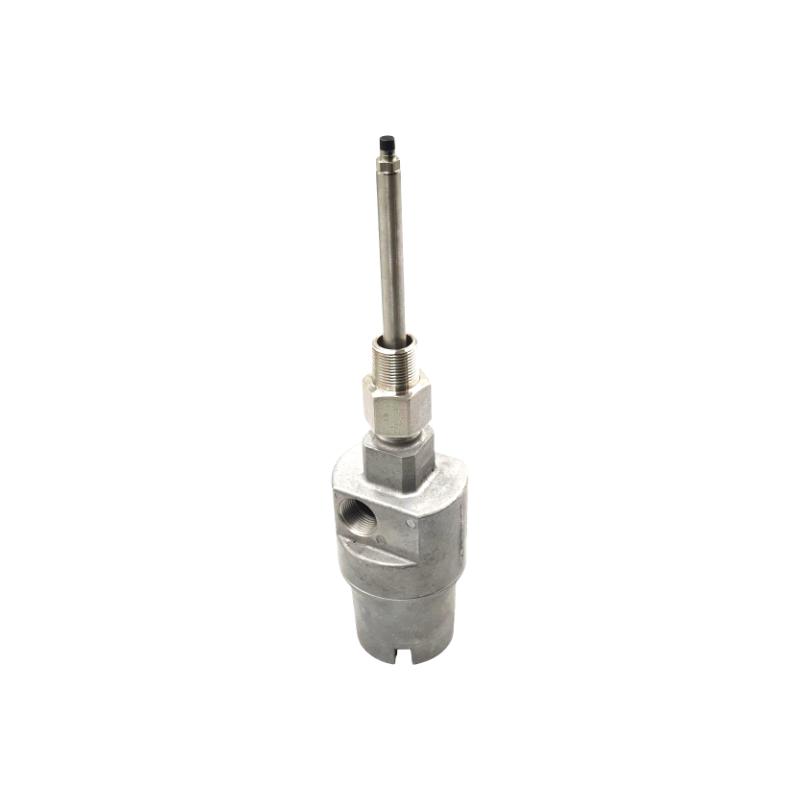

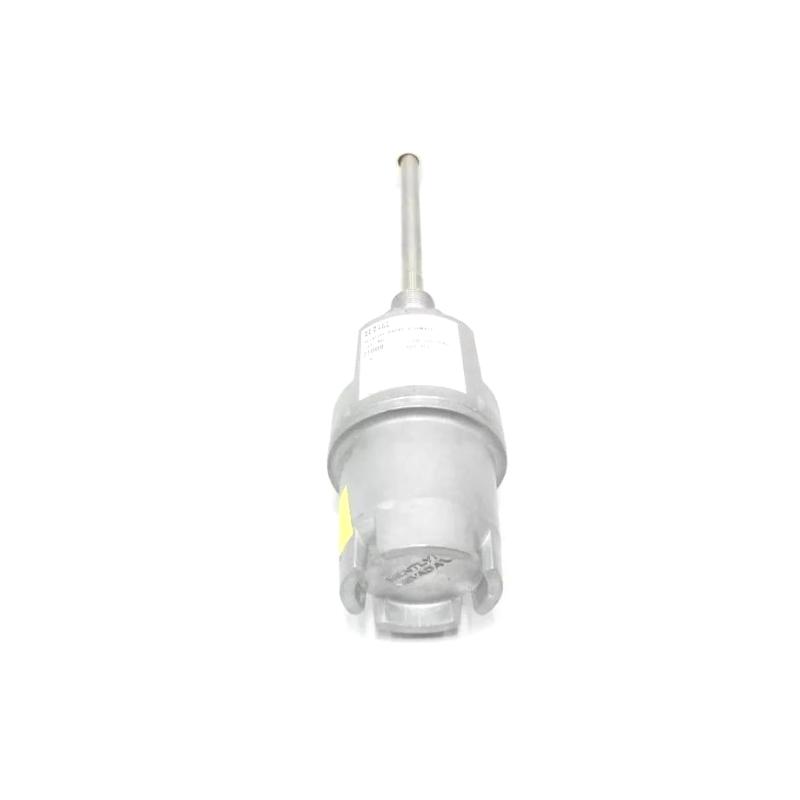

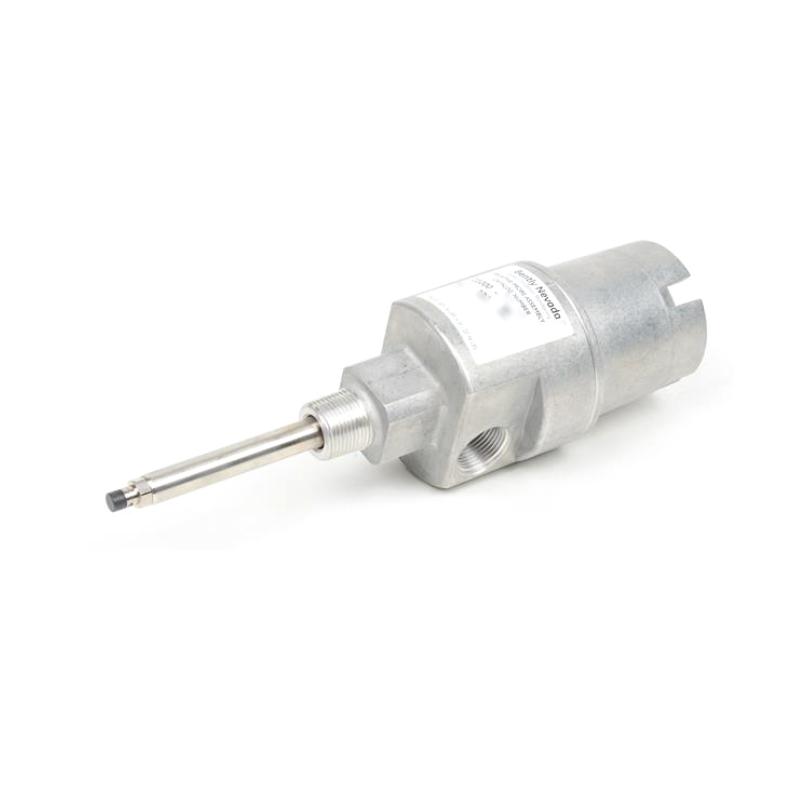

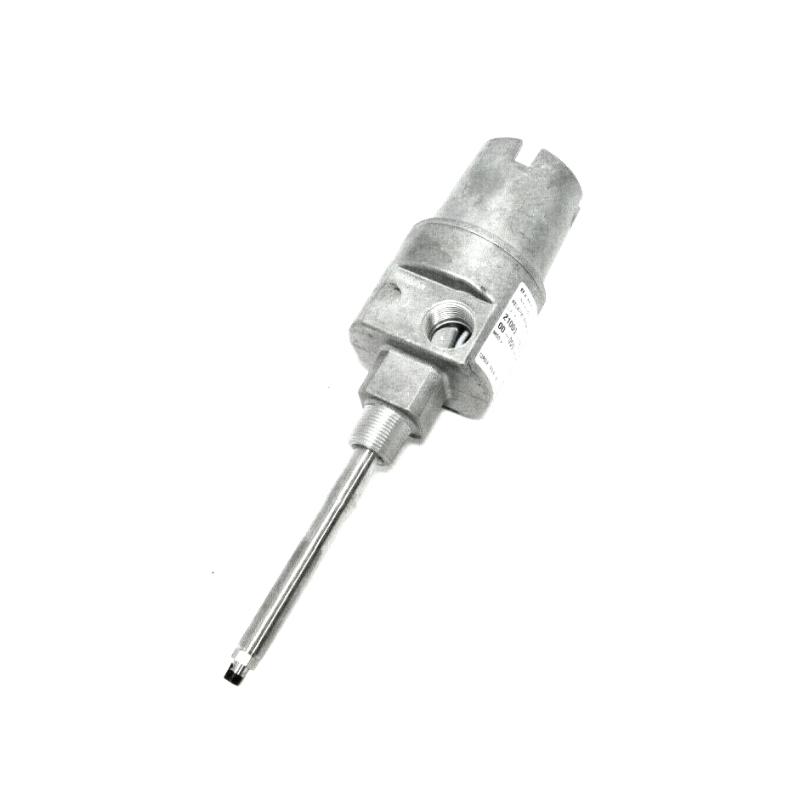

The Bently Nevada 21000-28-28-05-00-092-03-02 Proximity Probe Housing Assemblies are designed to provide a secure and stable installation platform for proximity probes used in industrial machinery monitoring systems. This assembly supports accurate sensor positioning while helping protect monitoring components in demanding operating environments.
Based on the Bently Nevada 21000 series housing platform, this configuration is designed with a 3300 XL 8 mm proximity probe option, selectable approval configuration, 0.5 metre cable length, no standoff adapter, 9.2-inch probe penetration, cable sealing accessories, and 3/4-14 NPT mounting thread. The assembly combines practical installation flexibility with reliable mechanical protection for rotating equipment monitoring applications.
The 21000 series housing assemblies are widely used as external mounting solutions for proximity probes, consisting of a protective housing body, probe sleeve, sealing components, connection ports, and related mounting accessories.
Technical Specifications: Complete Product Configuration
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-28-28-05-00-092-03-02 |
| Product Type | Proximity Probe Housing Assemblies |
| Series | 21000 Series |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Probe Configuration | 28 option with connector and selectable approval configuration |
| Probe Cable Length | 0.5 metre (20 inches) |
| Standoff Adapter | No standoff adapter |
| Probe Penetration Length | 9.2 inches |
| Fittings Option | Cable seal grip, reducer, plug, and compatible accessories |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Installation Type | External proximity probe mounting |
| Approximate Dimensions | 230 mm × 85 mm × 85 mm |
| Approximate Weight | 1.1 kg |
| Application Area | Machinery condition monitoring systems |
