Product Overview: Reliable Sensor Mounting for Industrial Machinery Monitoring

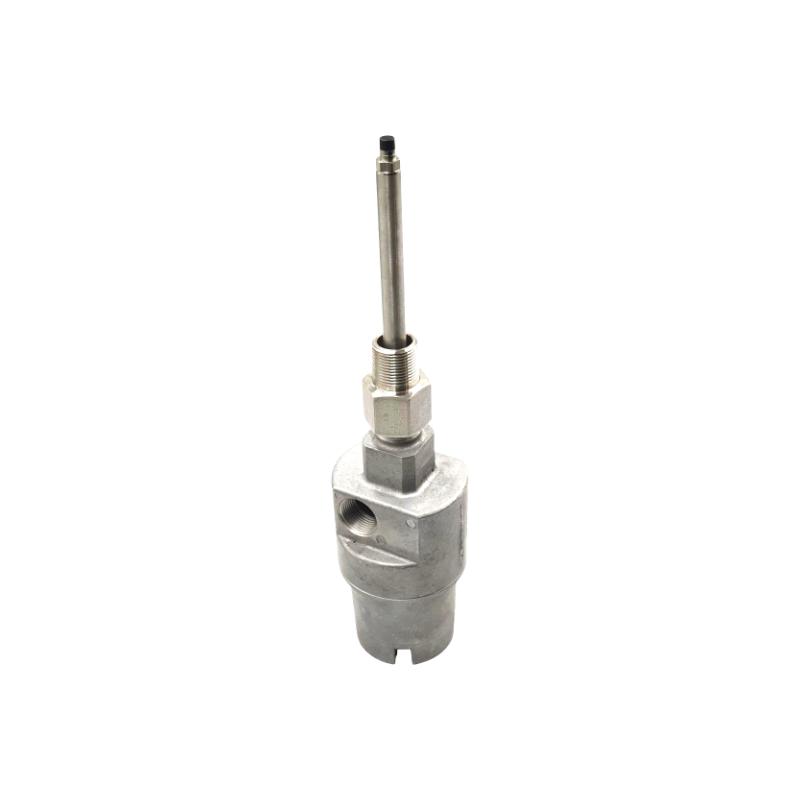

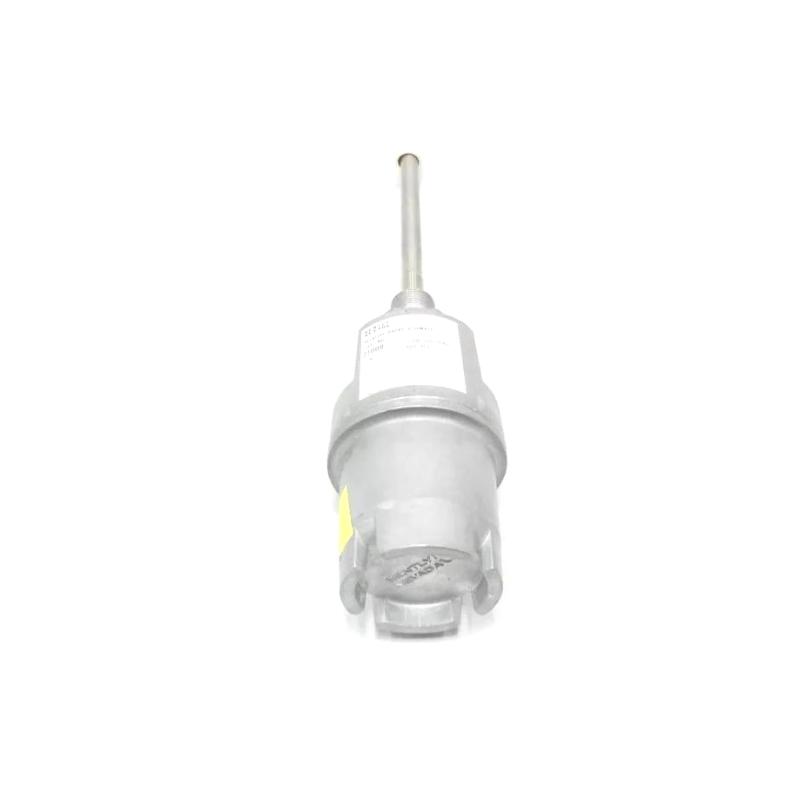

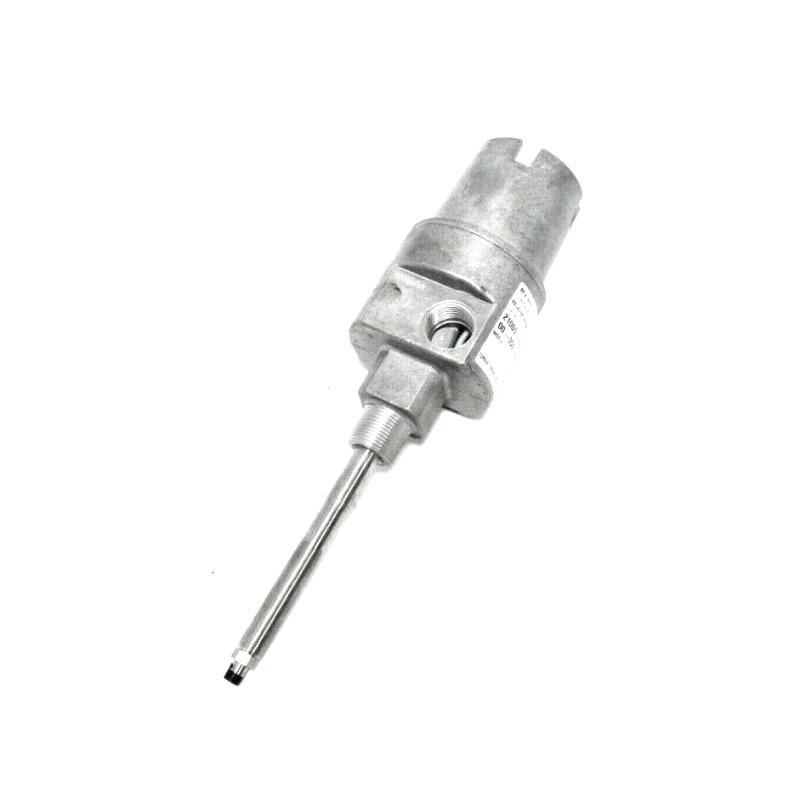

The Bently Nevada 21000-28-10-00-050-04-02 Proximity Probe Housing Assemblies are designed to provide a secure mounting structure and protective environment for proximity probes used in industrial condition monitoring systems. This assembly supports accurate probe positioning and helps maintain consistent measurement performance in rotating machinery applications.
Built as part of the Bently Nevada 21000 series, this model is configured with a 3300 XL 8 mm proximity probe, 1.0 metre cable length, no standoff adapter, 5.0-inch probe penetration, one 3/4-14 NPT plug, and a 3/4-14 NPT mounting thread. The configuration is suitable for applications requiring dependable proximity probe installation and stable long-term monitoring performance.
The 21000 housing platform combines practical mechanical design with industrial-grade materials, providing engineers with a proven solution for integrating proximity measurement components into machinery monitoring systems.
Technical Specifications: Configuration and Mechanical Data
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-28-10-00-050-04-02 |
| Product Type | Proximity Probe Housing Assemblies |
| Series | 21000 Series |
| Probe Configuration | 3300 XL 8 mm Proximity Probe with connector |
| Probe Cable Length | 1.0 metre (39 inches) |
| Standoff Adapter | No standoff adapter |
| Probe Penetration Length | 5.0 inches |
| Fittings Option | One 3/4-14 NPT plug |

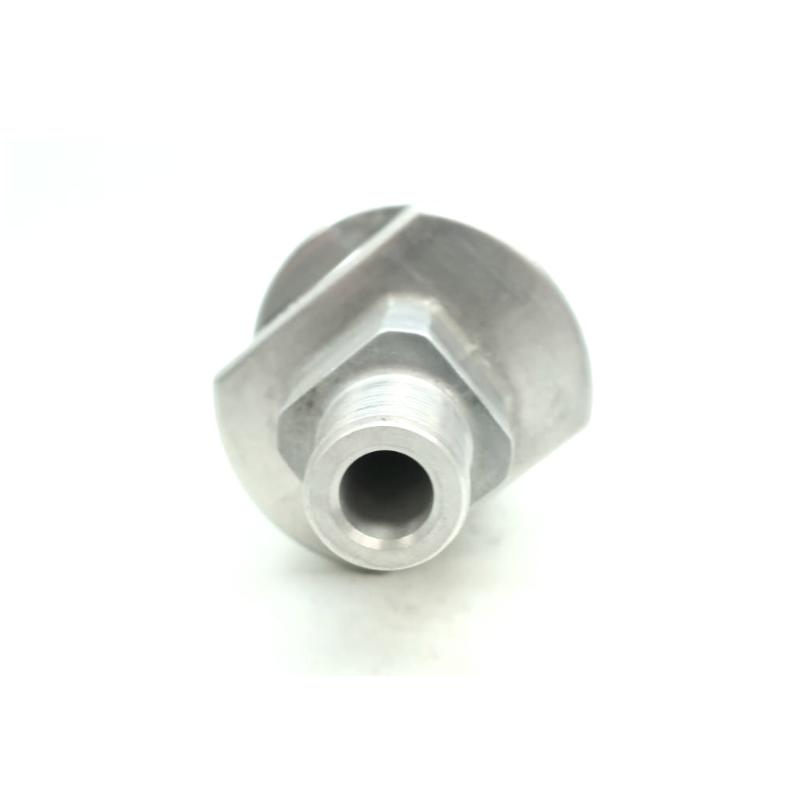

| Mounting Thread | 3/4-14 NPT |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Installation Type | External proximity probe mounting |
| Approximate Dimensions | 160 mm × 83 mm × 83 mm |
| Approximate Weight | 1.1 kg (2.4 lb) without fittings |
| Monitoring Application | Machinery vibration and position monitoring |
