Product Overview: Advanced Mounting Support for Precision Machinery Monitoring

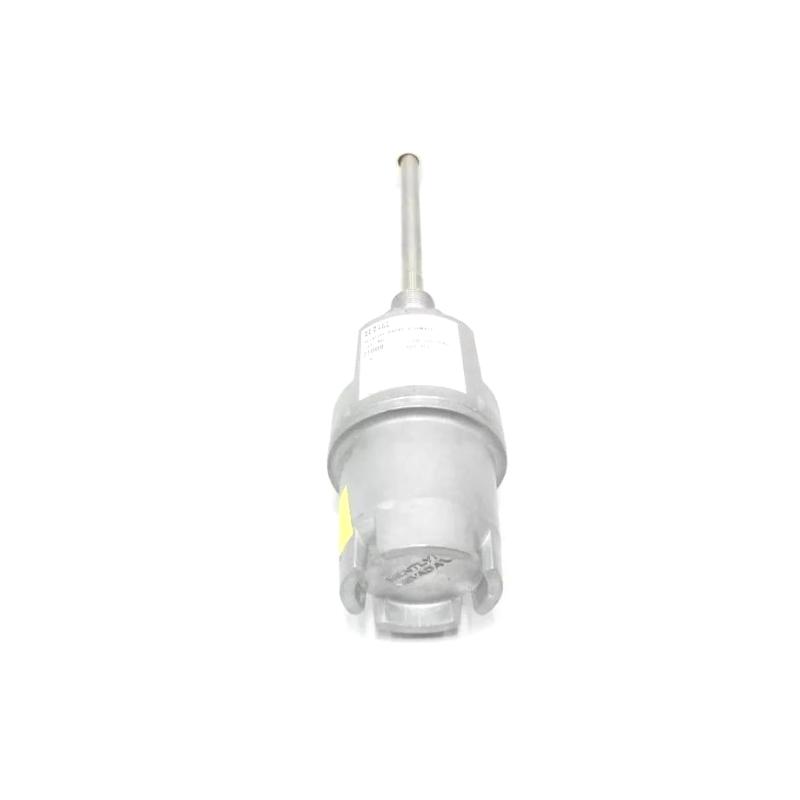

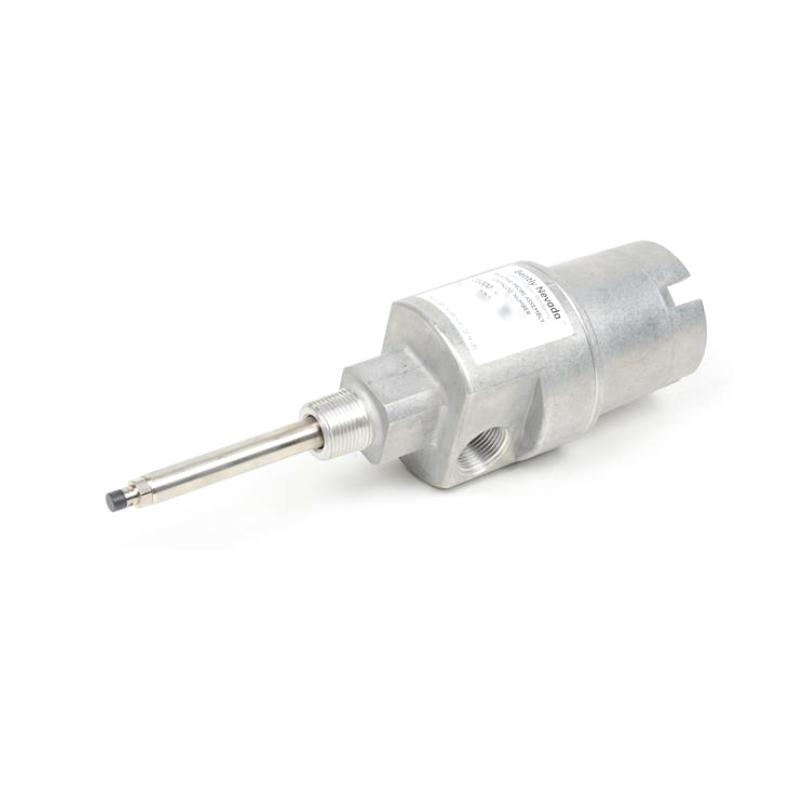

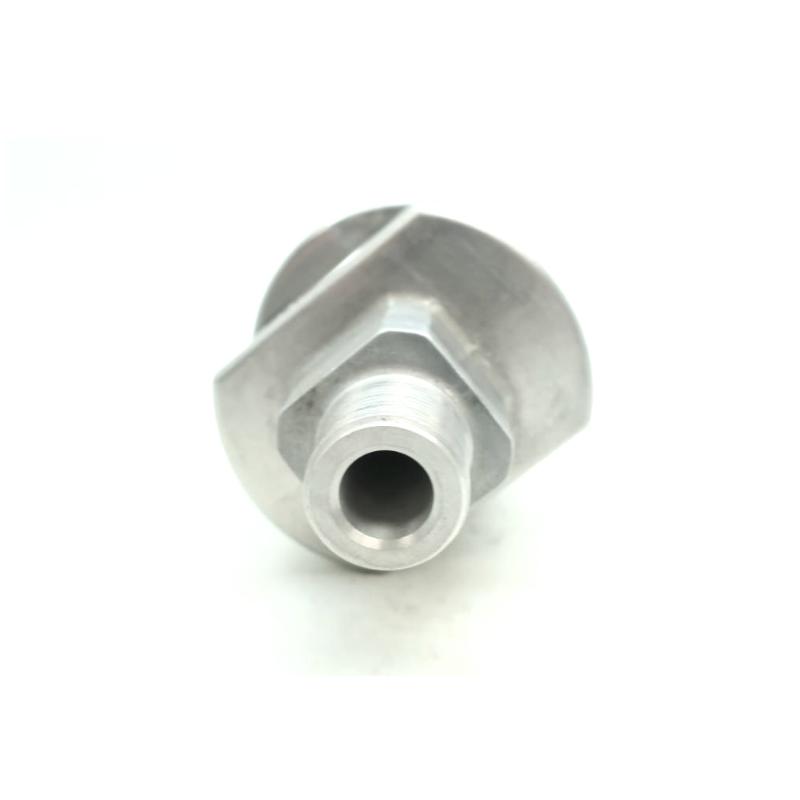

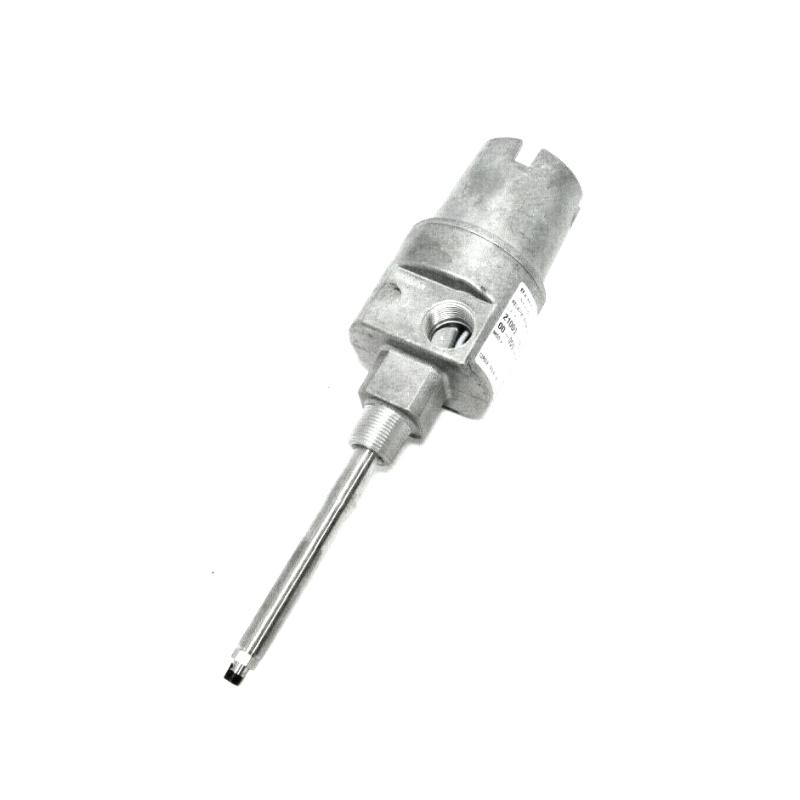

The Bently Nevada 21000-28-10-00-119-03-02 Proximity Probe Housing Assemblies are designed to provide a stable and protected mounting environment for proximity probes used in industrial machinery monitoring applications. This housing assembly supports accurate sensor positioning and helps maintain reliable measurement performance for rotating equipment condition monitoring systems.
As part of the Bently Nevada 21000 series, this configuration is designed around a 3300 XL 8 mm proximity probe solution with a 1.0 metre cable arrangement, no standoff adapter, 11.9-inch probe penetration, cable seal grip fitting option, and 3/4-14 NPT mounting thread. The modular construction allows engineers to install and maintain proximity monitoring components efficiently in demanding industrial environments.
The 21000 series housing assemblies combine a durable aluminum body, stainless steel sleeve design, and flexible configuration options to support long-term machinery monitoring requirements.
Technical Specifications: Configuration Details and Mechanical Data
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-28-10-00-119-03-02 |
| Product Type | Proximity Probe Housing Assemblies |
| Series | 21000 Series |
| Probe Configuration | 3300 XL 8 mm proximity probe with connector protector |
| Probe Cable Length | 1.0 metre (39 inches) |
| Standoff Adapter | No standoff adapter |
| Probe Penetration Length | 11.9 inches |
| Fittings Option | Cable seal grip with compatible grommets |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Installation Method | External proximity probe mounting |
| Approximate Dimensions | 290 mm × 90 mm × 35 mm |
| Approximate Weight | 1.1 kg (without fittings) |
| Application Type | Rotating machinery condition monitoring |
