Product Highlights

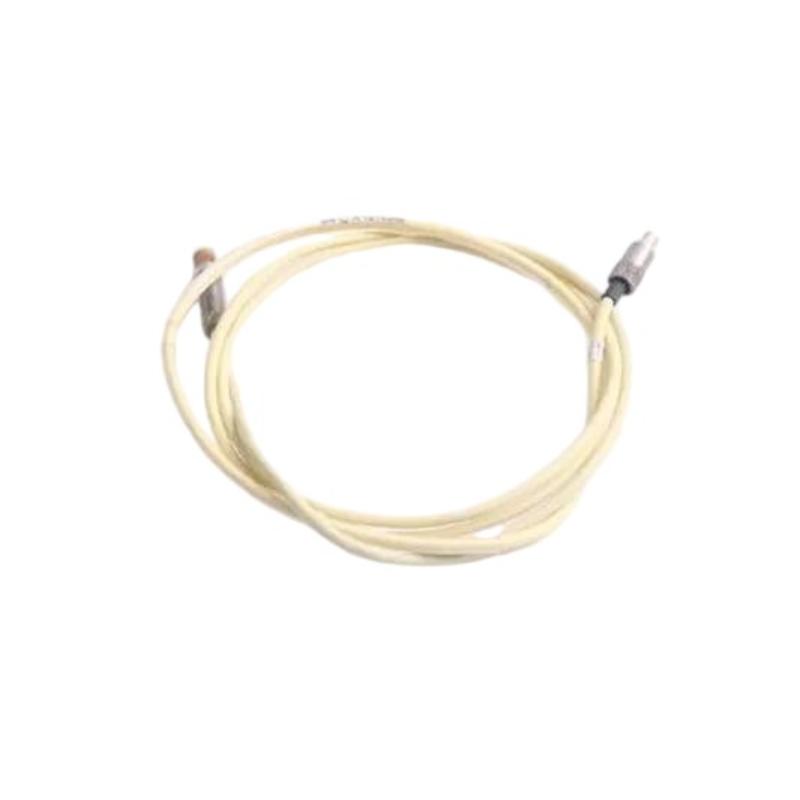

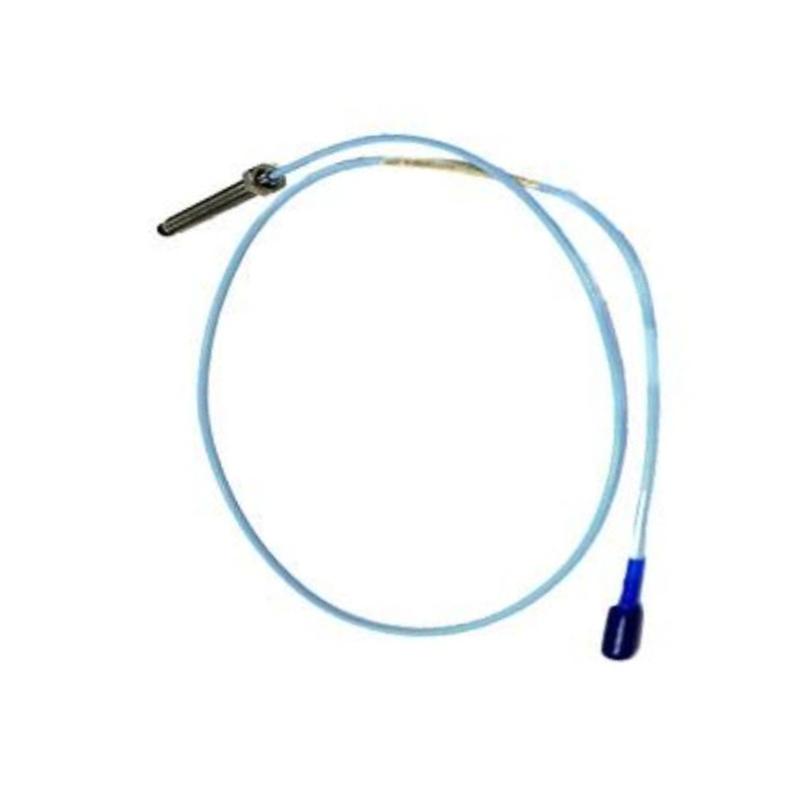

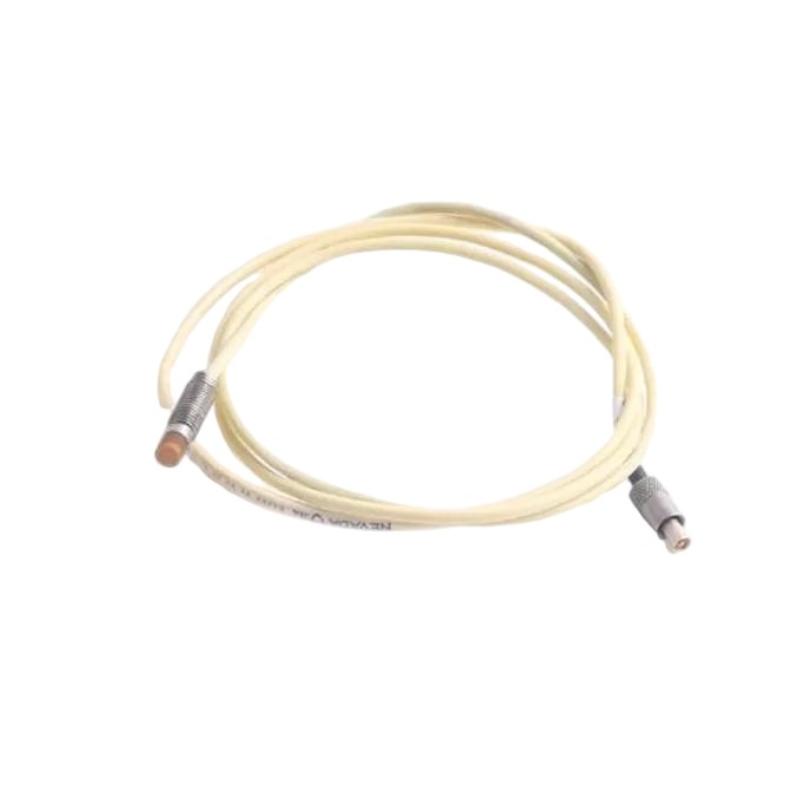

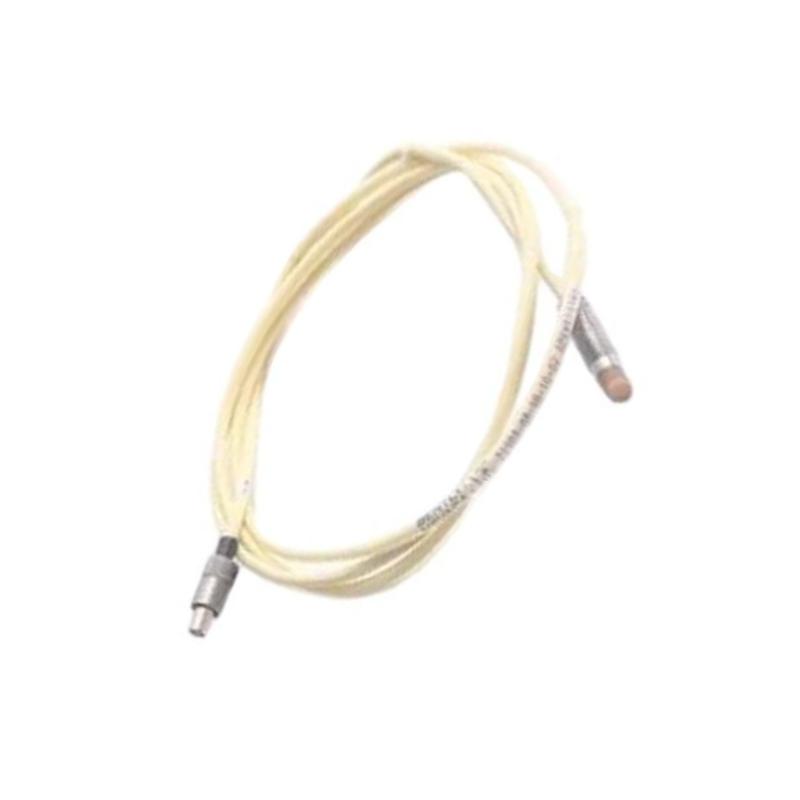

The Bently Nevada 21500-00-08-35-02 7200 5 mm Proximity Probe is a high-performance non-contact sensor developed for precise measurement of shaft vibration, displacement, and position in rotating machinery. As a member of the proven 7200 Series Proximity Transducer System, this probe delivers stable, repeatable performance in demanding industrial environments where equipment reliability is critical.
This configuration features a 5 mm probe tip, 0.8-inch case length, 3.5 m integral cable, 1/4-28 UNF threaded body, and a miniature male coaxial connector. Designed for seamless integration with compatible 7200 Series Proximitor® sensors, it provides dependable monitoring for predictive maintenance and machinery protection programs.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21500-00-08-35-02 |
| Product Type | 7200 5 mm Proximity Probe |
| Series | 7200 Proximity Transducer System |
| Probe Diameter | 5 mm |
| Overall Case Length | 0.8 in (20 mm) |
| Integral Cable Length | 3.5 m |
| Thread Type | 1/4-28 UNF |
| Connector Type | Miniature Male Coaxial Connector |
| Measurement Principle | Eddy Current, Non-Contact |
| Typical Scale Factor | 200 mV/mil (7.87 V/mm) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -51°C to +177°C |
| Approximate Dimensions | 370 × 2 × 2 cm |
| Approximate Weight | 0.38 kg |
