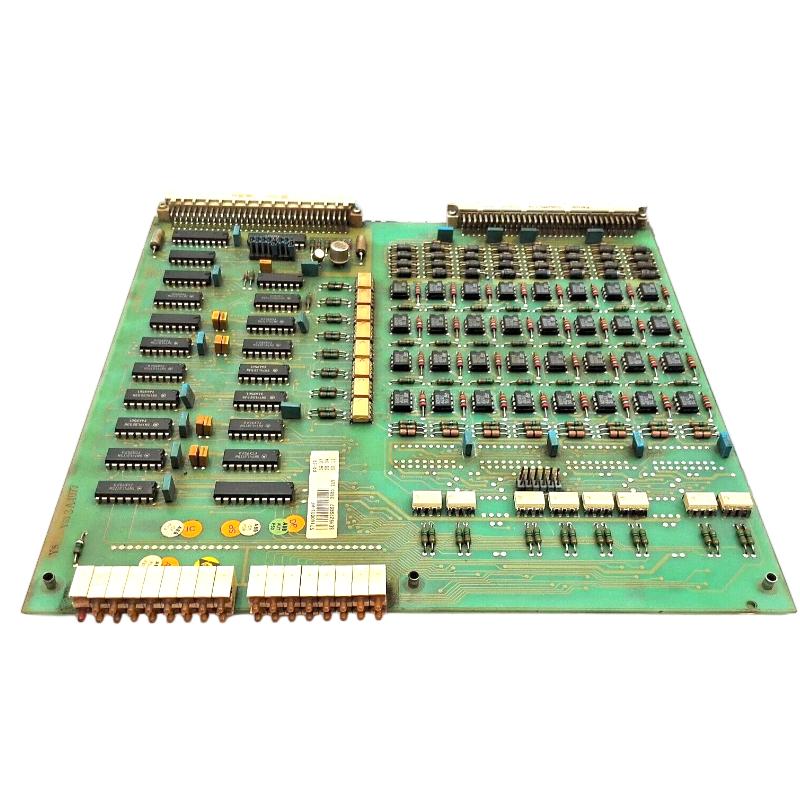

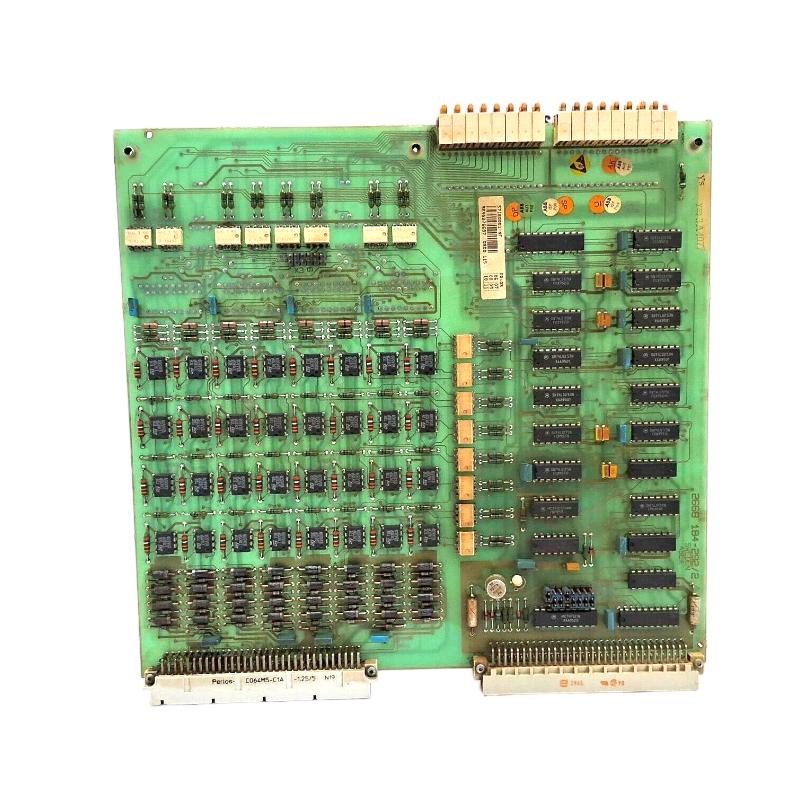

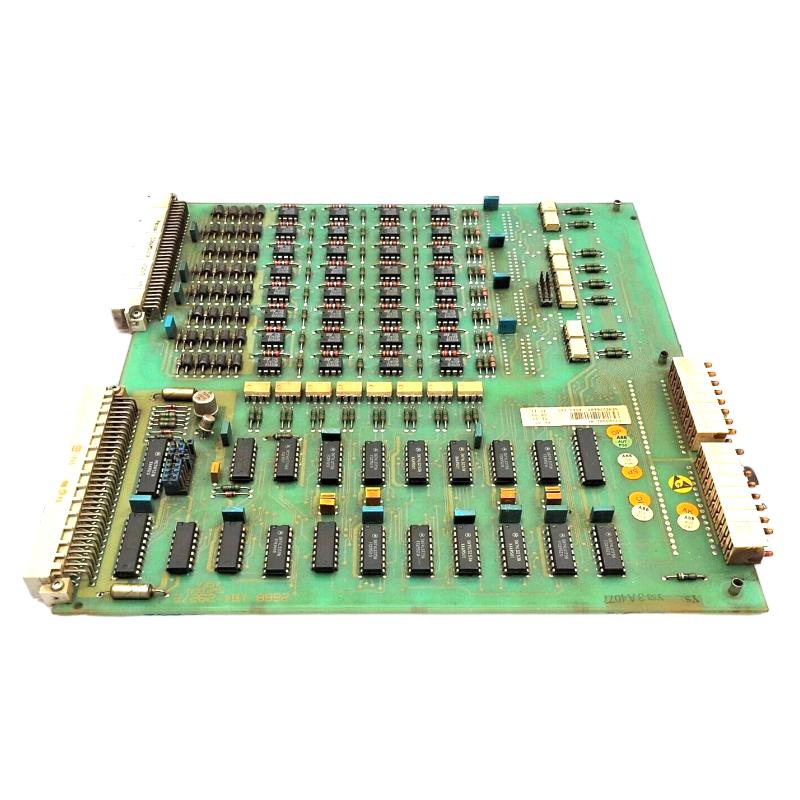

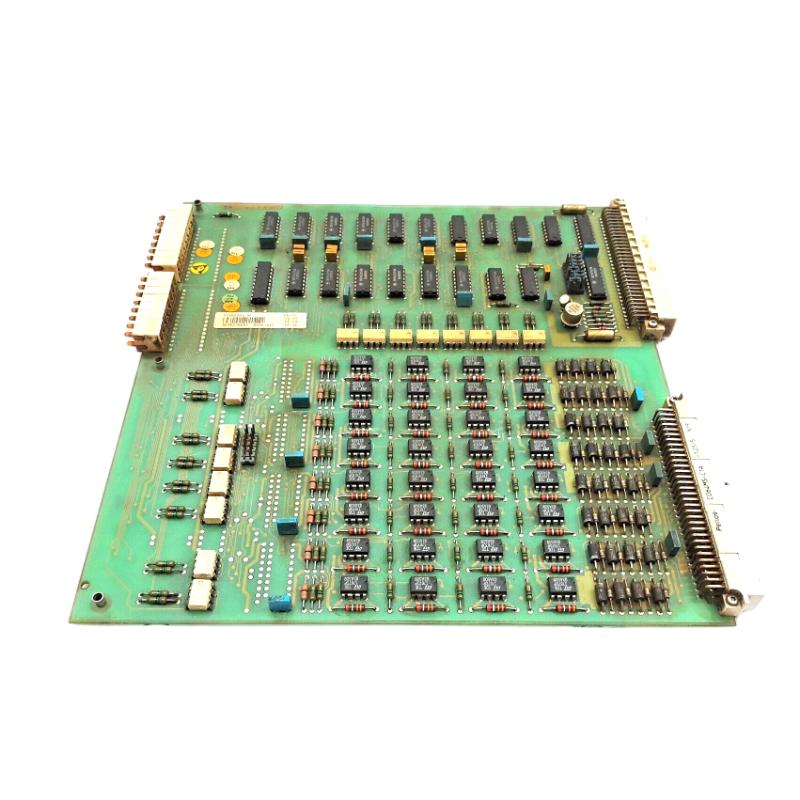

ABB DSDO 115 57160001-NF Digital Output Module

Name: ABB DSDO 115 57160001-NF Digital Output Module
Brand: ABB PLC
SKU: 4067
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DSDO 115
Product Origin:Sweden (SE)
Product Dimensions:324 × 22.5 × 234 mm
Product Weight:0.4 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB DSDO 115 57160001-NF Digital Output Module is designed to provide reliable and precise control of output signals in industrial automation systems. It facilitates the conversion of control system data into actionable binary output signals, which can then be used to operate relays, actuators, or other connected devices. This module is perfect for applications that require high-speed digital switching and seamless integration with a wide range of automation equipment, ensuring robust and efficient operation.

Technical Specifications

Feature	Specification
Part Number	DSDO 115 57160001-NF
Module Type	Digital Output Module
Dimensions	324 × 22.5 × 234 mm
Weight	0.4 kg
Input Voltage	24 V DC
Output Channels	16 Digital Outputs
Output Current	0.5 A per channel
Response Time	< 5 ms
Operating Temperature	-20°C to 60°C
Enclosure Rating	IP20
Mounting Type	DIN Rail Mount
Certification	CE, UL

Applications

Industrial Automation Systems
The ABB DSDO 115 Digital Output Module is ideal for controlling relays, actuators, and other devices within industrial automation systems, providing precise and reliable output signals.
Machine Control
It is commonly used in machine control systems, enabling the operation of components like motors, solenoids, and sensors by sending accurate digital output signals based on control system data.
Process Control Systems
The module plays a critical role in process control applications, where accurate switching of outputs is essential to maintain operational efficiency and prevent system failures.

Advantages

High-Speed Output Switching
With a response time of less than 5 milliseconds, this module ensures that output signals are switched quickly and efficiently, which is vital for real-time control in automation systems.
Multiple Output Channels
The module supports 16 digital output channels, providing ample flexibility for controlling multiple devices in complex automation setups.
Compact and Durable Design
The IP20-rated enclosure protects the module from dust and environmental hazards, while the compact design allows it to fit into various industrial control panels and systems.

Technical FAQs

What input voltage is required for the ABB DSDO 115 module?
The module operates with a 24 V DC input voltage.
How many digital output channels does this module have?
The module supports 16 digital output channels.
What is the output current capacity per channel?
Each output channel can handle up to 0.5 A of current.
What is the response time of the module?
The response time is less than 5 milliseconds, ensuring fast switching.
What is the operating temperature range for the module?
The module operates in the range of -20°C to 60°C.
How is the module mounted?
It is designed for DIN rail mounting, a common method for industrial automation equipment installation.
What is the enclosure rating of the ABB DSDO 115 module?
The module has an IP20-rated enclosure, which protects it from dust and environmental factors.
Can this module be used in machine control systems?
Yes, it is ideal for machine control applications, where precise digital output signals are required.
What certifications does the ABB DSDO 115 module have?
The module is CE and UL certified, ensuring compliance with international standards.
Is this module suitable for use in process control applications?
Yes, it is designed for use in process control systems that require fast and accurate digital output switching.
