Product Overview
Built for High-Performance Machinery Protection

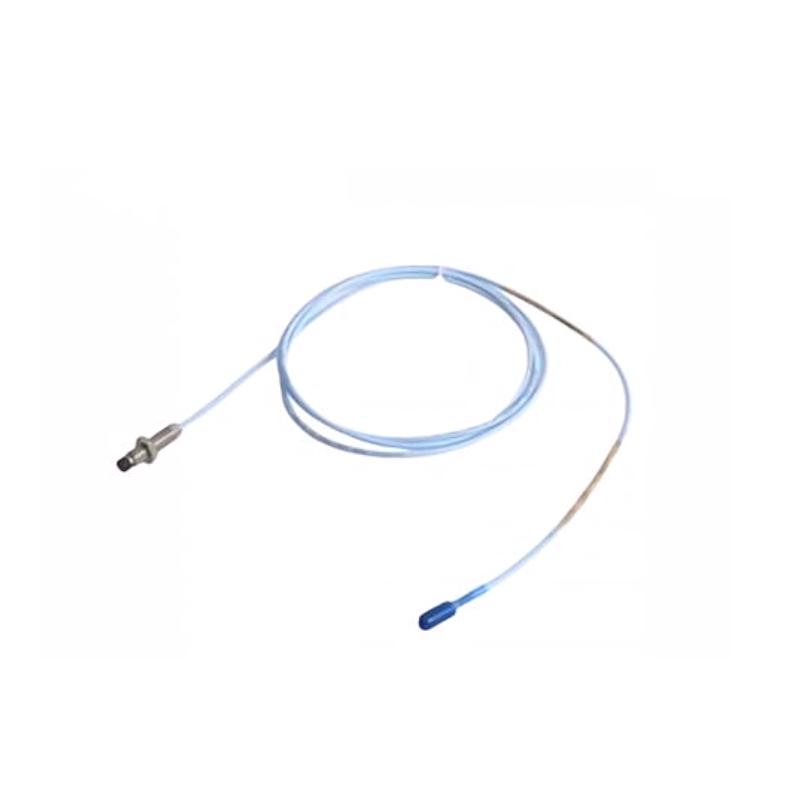

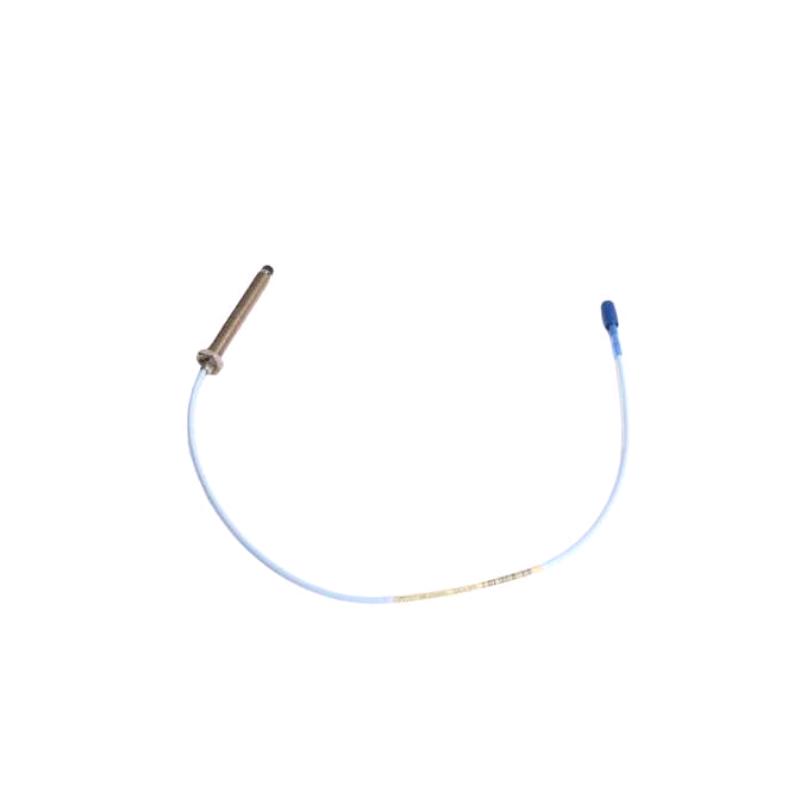

The 330103-00-15-10-02-00 utilizes advanced eddy current technology to continuously monitor the distance between the probe tip and a conductive shaft without physical contact. This non-contact principle eliminates mechanical wear while providing highly repeatable measurements for both static and dynamic shaft conditions.
Designed to operate with compatible 3300 XL Extension Cables and 3300 XL Proximitor® Sensors, the probe forms a complete transducer system capable of delivering reliable condition monitoring data for predictive maintenance and machine protection systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-15-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 330103 Metric Series |
| Measurement Technology | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Mounting Thread | M10 × 1 Metric |
| Armor | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 150 mm |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | 00 – Not Required |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | AISI 303/304 Stainless Steel |
| Seal Material | Viton® O-ring |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor® Sensor |
| Approximate Dimensions | Ø8 mm × 150 mm |
| Approximate Weight | 0.323 kg |
Industrial Applications
The 330103-00-15-10-02-00 is widely used in rotating equipment that requires continuous monitoring and dependable protection.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, turbo expanders |
| Petrochemical | Process compressors and centrifugal machinery |
| Manufacturing | High-speed motors, gearboxes, production equipment |
| Marine | Propulsion systems and auxiliary machinery |
Typical monitoring applications include:
-
Shaft vibration measurement
-
Radial shaft displacement
-
Axial thrust position monitoring
-
Rotor eccentricity analysis
-
Keyphasor® reference systems
-
Predictive maintenance programs
Key Advantages
Optimized 150 mm Probe Body
The 150 mm overall case length provides additional installation flexibility for machinery requiring deeper probe mounting while maintaining the precision expected from the 3300 XL platform.
Accurate Non-Contact Measurement
The eddy current sensing principle enables continuous shaft monitoring without physical contact, reducing maintenance requirements while ensuring consistent measurement accuracy throughout the equipment lifecycle.
Reliable ClickLoc™ Connection
The Miniature Coaxial ClickLoc™ connector provides a secure electrical connection that supports stable signal transmission and simplifies installation and maintenance.
Rugged Industrial Construction
A stainless-steel probe housing, PPS sensing tip, and Viton® sealing system provide excellent resistance to vibration, oil exposure, and demanding industrial operating conditions.
Seamless System Compatibility
The probe integrates directly with compatible 3300 XL Extension Cables and 3300 XL Proximitor® Sensors, allowing straightforward replacement and expansion within existing monitoring systems.
Technical FAQs
1. What is the primary function of the 330103-00-15-10-02-00?
It provides non-contact measurement of shaft vibration, displacement, and axial position in rotating machinery.
2. Which monitoring system is this probe designed for?
It is designed for the 3300 XL 8 mm Proximity Transducer System.
3. What thread specification does this model use?
It features an M10 × 1 metric mounting thread.
4. What does the "15" option indicate?
The 15 option represents a 150 mm overall case length.
5. What cable length is supplied?
This configuration includes a 1.0-meter (3.3 ft) integral cable.
6. Which connector is installed?
It uses a Miniature Coaxial ClickLoc™ connector with a standard cable.
7. What does approval option "00" mean?
Option 00 indicates that no additional agency approvals are required.
8. What materials are used in the probe?
The probe features a PPS sensing tip, AISI 303/304 stainless-steel housing, and Viton® O-ring sealing.
9. Is this probe interchangeable with other 3300 XL components?
Yes. When used with the correct extension cable and Proximitor® Sensor, it is fully compatible within the 3300 XL 8 mm system.
10. Which equipment commonly uses this probe?
Typical applications include steam turbines, gas turbines, compressors, pumps, motors, generators, and other critical rotating equipment.
