Performance Overview
Accurate Monitoring for Rotating Equipment

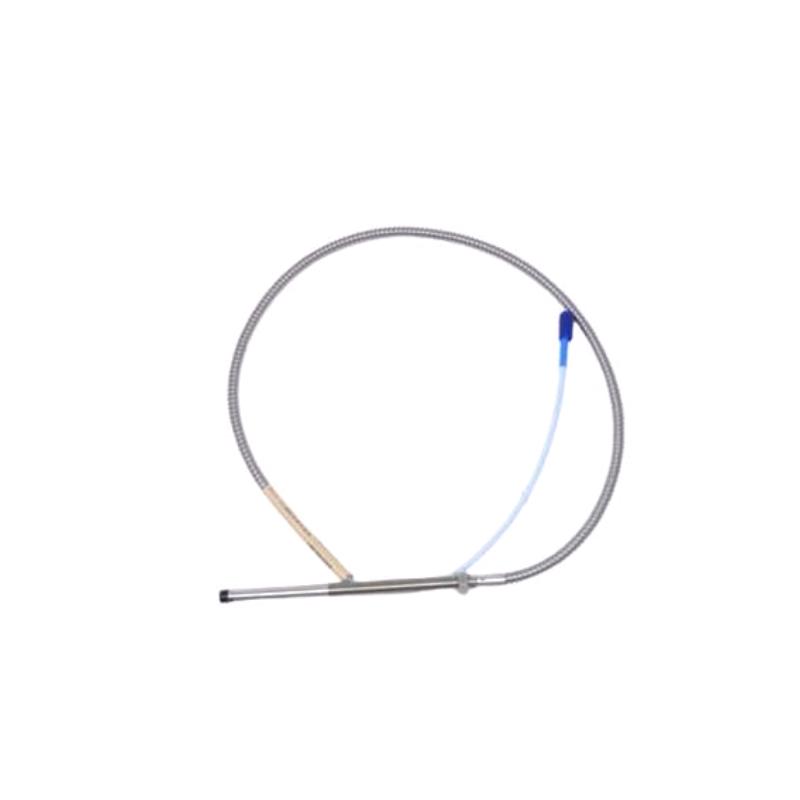

The 330103-00-15-05-01-00 measures the distance between the probe tip and a conductive shaft using advanced eddy current technology. Because the sensing process is completely non-contact, the probe delivers highly accurate vibration and position measurements without introducing mechanical wear.
When installed with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor, the probe forms a complete transducer system capable of monitoring shaft condition in turbines, compressors, pumps, generators, motors, and other critical rotating assets.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-15-05-01-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Series | 330103 Metric Series |
| Measurement Technology | Non-contact Eddy Current |
| Mounting Thread | M10 × 1 Metric |
| Probe Diameter | 8 mm |
| Armor Type | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 150 mm |
| Integral Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector with Connector Protector |
| Cable Type | Standard Cable |
| Agency Approval | 00 – Not Required |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Seal Material | Viton® O-ring |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor® Sensor |
| Approximate Dimensions | Ø8 mm × 150 mm |
| Approximate Weight | 0.32 kg |
Typical Applications
The 330103-00-15-05-01-00 is widely applied in industries where continuous machinery monitoring helps maximize equipment availability and reduce maintenance costs.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, turbo expanders |
| Petrochemical | Process compressors and rotating machinery |
| Manufacturing | High-speed motors, gearboxes, production equipment |
| Marine | Propulsion systems and auxiliary rotating equipment |
Typical monitoring functions include:
-
Shaft vibration monitoring
-
Radial displacement measurement
-
Axial position monitoring
-
Rotor eccentricity analysis
-
Machine protection systems
-
Predictive maintenance programs
Product Advantages
Extended 150 mm Probe Configuration
The 150 mm overall case length offers greater installation flexibility for machinery requiring deeper probe mounting while maintaining the proven performance of the 3300 XL platform.
High-Resolution Non-Contact Sensing
Advanced eddy current technology provides highly accurate and repeatable measurements without physical contact, reducing maintenance requirements and extending equipment life.
Connector with Protective Sleeve
The Miniature Coaxial ClickLoc™ connector with connector protector enhances installation durability and helps safeguard the connector from accidental mechanical damage.
Rugged Industrial Construction
Manufactured with a stainless-steel housing, PPS probe tip, and Viton® sealing components, the probe is engineered for dependable operation in harsh industrial environments.
Complete 3300 XL Compatibility
The probe integrates seamlessly with compatible 3300 XL Extension Cables and 3300 XL Proximitor® Sensors, simplifying installation, maintenance, and system upgrades.
Technical FAQs
1. What is the 330103-00-15-05-01-00 used for?
It is used to measure shaft vibration, radial displacement, and axial position in rotating machinery using non-contact eddy current technology.
2. Which monitoring platform is this probe designed for?
It is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
3. What thread size does this model use?
It features an M10 × 1 metric mounting thread.
4. What does the "15" case length option represent?
The 15 option specifies a 150 mm overall case length.
5. What cable length is included?
The probe includes a 0.5-meter (1.6 ft) integral cable.
6. Which connector is installed?
It is equipped with a Miniature Coaxial ClickLoc™ connector with connector protector.
7. What does approval option "00" mean?
Option 00 indicates that no additional agency approvals are specified.
8. What materials are used in the probe?
The probe features a PPS sensing tip, AISI 303/304 stainless-steel housing, and a Viton® O-ring sealing system.
9. Is this probe suitable for continuous industrial operation?
Yes. It is designed for long-term operation in demanding industrial machinery monitoring systems.
10. Which machines commonly use this probe?
Typical applications include steam turbines, gas turbines, compressors, pumps, generators, motors, fans, and other critical rotating equipment.
