Technical FAQs

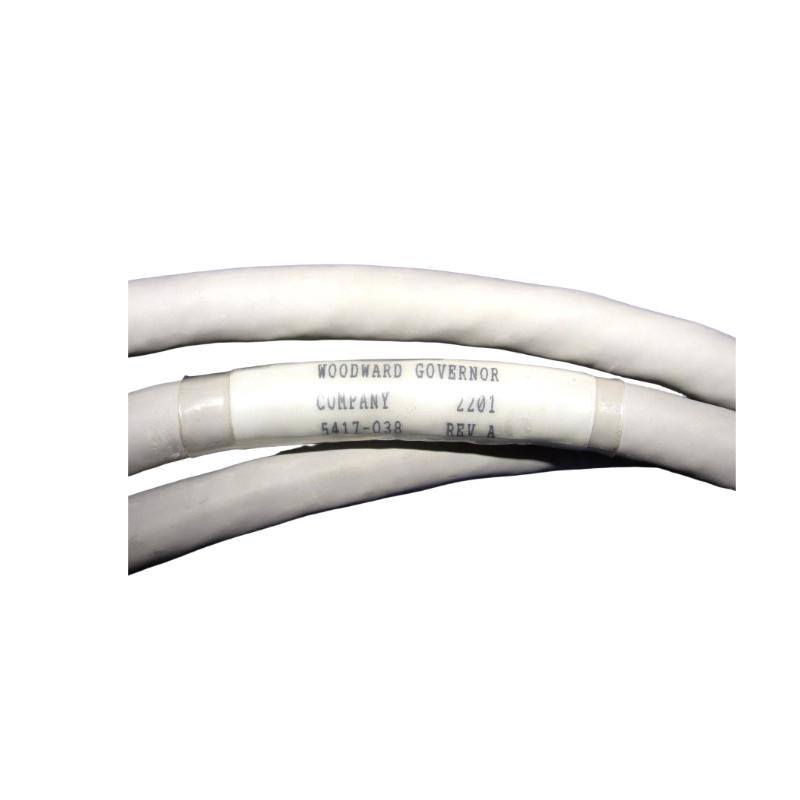

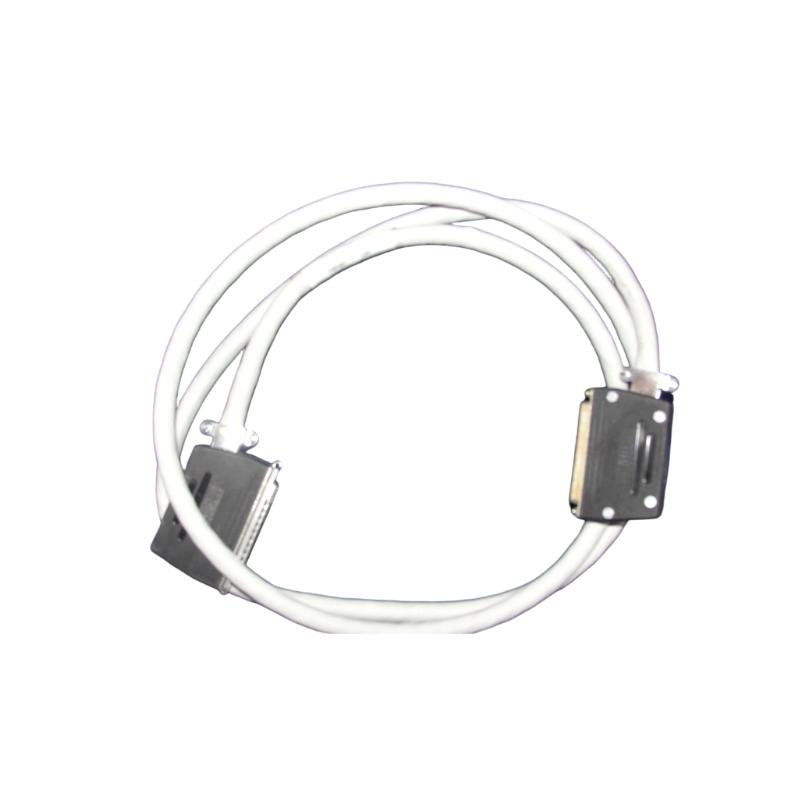

1. What is the primary purpose of the 5417‑038 cable?
   To transmit low-level analog signals between controllers, I/O modules, and field devices.

2. What is the standard length of this cable?
   20 ft (≈ 6.1 m).

3. Is the cable shielded?
   Yes — foil and braid shielding provide EMI protection.

4. Which environments is this cable suitable for?
   Industrial control environments with electrical noise; avoid excessive moisture and mechanical stress.

5. Can it be used in high-density analog I/O systems?
   It is best suited for low- to medium-density analog wiring applications.

6. What precautions should be taken during installation?
   Maintain shield continuity, avoid sharp bends, and route away from high-voltage or noisy power cables.

7. Is the cable suitable for digital signals?
   It is intended for analog signals; low-speed digital signals are not recommended.

8. What is the approximate diameter of the cable?
   Approximately 12 mm.

9. What is the approximate weight of the assembly?
   Around 1.0 kg.

10. How can proper installation be verified?
    Ensure shield grounding, check signal stability, and test for noise or distortion using an oscilloscope or signal analyzer.
