Product Introduction

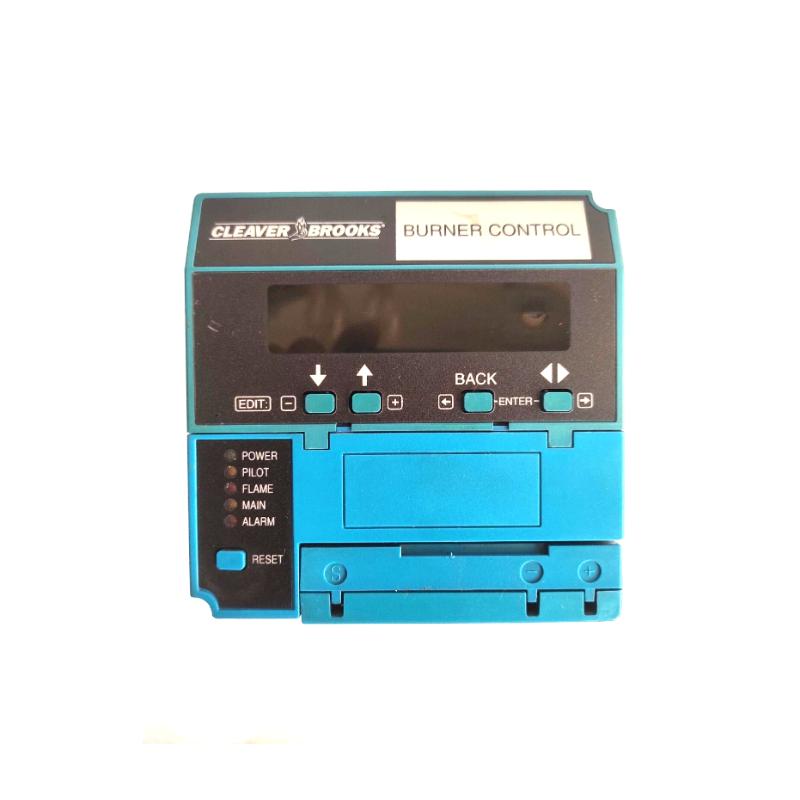

The Honeywell RM7800L1079 Burner Control is an advanced microprocessor-based flame safeguard and burner management controller from the Honeywell 7800 Series. It is designed for single-burner industrial combustion systems, providing integrated control of ignition sequencing, flame monitoring, purge cycles, and safety shutdown functions.
This model is widely applied in industrial boilers, process heaters, and furnace systems where stable combustion performance, fast fault detection, and high-integrity safety logic are essential. Its modular architecture supports plug-in flame amplifiers and display interfaces, making it adaptable to a wide range of combustion configurations.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Series | 7800 Series Burner Control |
| Model | RM7800L1079 |
| Control Type | Microprocessor-based burner management |
| Application | Single burner (gas, oil, coal, or combination fuel) |
| Power Supply | 120 VAC, 50/60 Hz |
| Operating Temperature | -40°C to 60°C |
| Control Architecture | Modular relay + logic + display system |
| Flame Detection | Compatible with UV/IR flame sensors |
| Diagnostics | Fault history, lockout codes, sequence status |
| Safety Functions | Flame failure lockout, interlock monitoring |
| Response Capability | Fast cycle sequencing (industrial combustion class) |

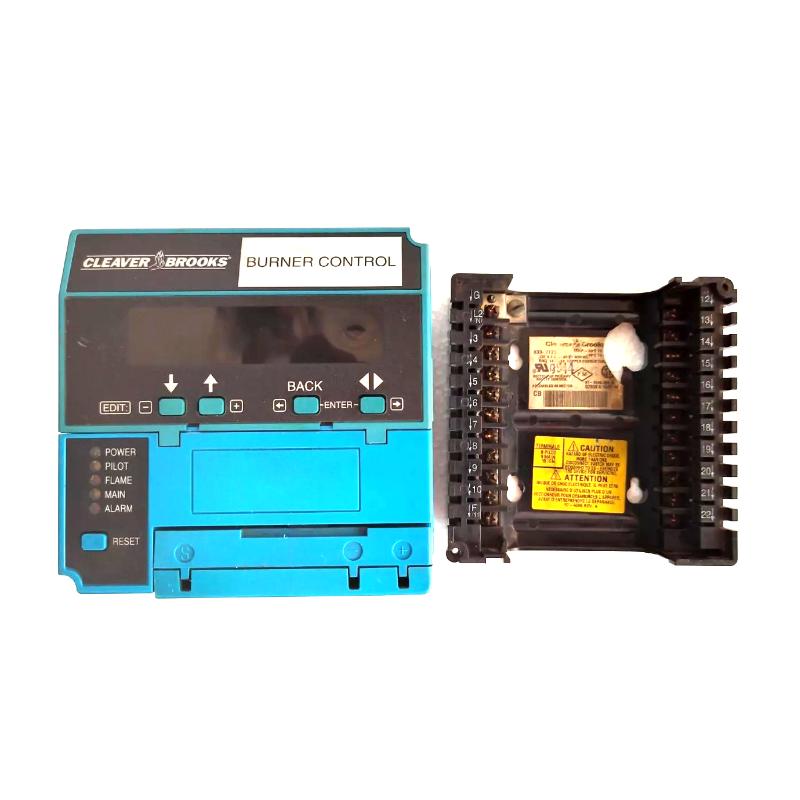

| Mounting | Panel-mounted subbase system |
System Role & Application
The RM7800L1079 functions as the central combustion logic controller in burner systems. It manages the full operating cycle from pre-purge through ignition, flame proving, normal operation, and post-purge shutdown.
Typical applications include:
-
Industrial steam and hot water boilers
-
Process heating furnaces and ovens
-
Refinery and petrochemical combustion systems
-
Large-scale HVAC heating plants
-
Thermal process industries requiring continuous-duty burners
Its programmable sequencing logic ensures repeatable combustion safety behavior and stable process control across varying load conditions.
Key Advantages
-
Complete Burner Sequence Automation: Controls ignition, purge, flame proving, and shutdown cycles
-
High Safety Integrity Design: Immediate lockout on flame failure or unsafe conditions
-
Integrated Diagnostics: Provides detailed fault codes and operational history for maintenance efficiency
-
Modular Expansion Capability: Supports plug-in flame amplifiers and display modules
-
Industrial-Grade Reliability: Designed for harsh thermal and electrical environments
-
Flexible Fuel Compatibility: Suitable for gas, oil, coal, and dual-fuel burners
This combination makes it a dependable control solution for critical combustion safety systems where uptime and protection are equally important.
Technical FAQs
1. What is the main function of RM7800L1079?
It manages burner ignition, flame supervision, and safety shutdown sequencing.
2. What fuels does it support?
Gas, oil, coal, and combination fuel systems.
3. What is its operating temperature range?
-40°C to 60°C.
4. Does it include diagnostics?
Yes, it provides fault history and lockout status for troubleshooting.
5. Is it suitable for continuous operation?
Yes, it is designed for industrial continuous-duty burner systems.
6. What happens during flame failure?
The system immediately shuts off fuel and enters lockout mode.
7. Does it support modular components?
Yes, it uses plug-in modules for flame detection and control logic expansion.
8. Can it handle complex burner sequencing?
Yes, it supports programmable purge and ignition sequences.
9. Where is it commonly used?
In boilers, furnaces, and industrial heating systems.
10. Why is it widely used in industry?
Because it combines safety compliance, flexible control logic, and strong diagnostic capability.
