Engineered for Maximum Reliability

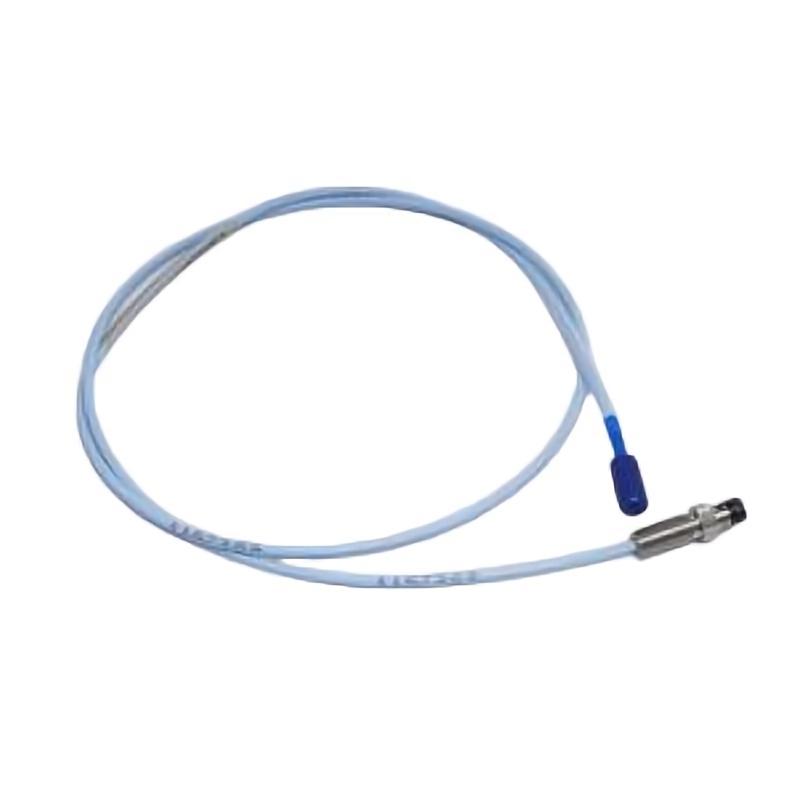

Designed for modern machinery protection systems, the 330103-00-14-10-12-05 continuously measures the distance between the probe tip and a conductive shaft using advanced eddy current technology. The non-contact measurement principle eliminates mechanical wear while providing highly accurate static and dynamic measurements.
When paired with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor, the probe forms a complete transducer system capable of monitoring vibration, shaft position, eccentricity, and rotational reference signals across a wide range of industrial equipment.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-14-10-12-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 330103 Metric Series |
| Measurement Principle | Non-contact Eddy Current |
| Mounting Thread | M10 × 1 Metric |
| Probe Diameter | 8 mm |
| Armor | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 140 mm |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | FluidLoc™ Cable |
| Agency Approval | CSA / ATEX / IECEx (Option 05) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | AISI 303/304 Stainless Steel |
| Seal Material | Viton® O-ring |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor® Sensor |
| Approximate Dimensions | Ø8 mm × 140 mm |
| Approximate Weight | 0.32 kg |
Typical Applications
The 330103-00-14-10-12-05 is widely used in mission-critical rotating equipment where accurate shaft monitoring and long-term reliability are essential.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, turbo expanders |
| Petrochemical | Process compressors and rotating machinery |
| Chemical Processing | Agitators, centrifugal equipment |
| Marine | Propulsion systems and auxiliary machinery |
Typical monitoring functions include:
-
Shaft vibration monitoring
-
Radial displacement measurement
-
Axial thrust position monitoring
-
Rotor eccentricity analysis
-
Keyphasor® reference applications
-
Predictive maintenance programs
Product Advantages
FluidLoc™ Cable Technology
The integrated FluidLoc™ cable is specifically designed to prevent oil and other process fluids from migrating through the cable interior, helping maintain signal integrity and improving long-term reliability in harsh industrial environments.
Extended 140 mm Probe Body
The 140 mm case length offers additional installation flexibility for machines requiring deeper probe mounting while maintaining the proven performance of the 3300 XL platform.
High-Precision Non-Contact Sensing
Advanced eddy current technology provides repeatable, high-resolution measurements without physical contact, reducing maintenance requirements and eliminating probe wear.
Hazardous-Area Certifications
Option 05 includes CSA, ATEX, and IECEx approvals, making this probe suitable for hazardous industrial environments where internationally recognized certifications are required.
Robust Industrial Construction
A stainless-steel housing, PPS probe tip, and Viton® sealing system provide excellent resistance to vibration, oil contamination, corrosion, and elevated temperatures, ensuring dependable operation in demanding applications.
Technical FAQs
1. What is the primary purpose of the 330103-00-14-10-12-05?
It is used to measure shaft vibration, displacement, and axial position using non-contact eddy current sensing technology.
2. Which monitoring system is this probe designed for?
It is part of the 3300 XL 8 mm Proximity Transducer System.
3. What does the "14" option represent?
It specifies a 140 mm overall case length.
4. What does the "10" cable option indicate?
It designates a 1.0-meter integral cable.
5. What is special about connector option "12"?
Option 12 combines a Miniature Coaxial ClickLoc™ connector with a FluidLoc™ cable, providing improved resistance to fluid ingress through the cable.
6. What approvals are included with option "05"?
Option 05 includes CSA, ATEX, and IECEx hazardous-area certifications.
7. What thread does this probe use?
It features an M10 × 1 metric threaded case for secure installation.
8. What materials are used in construction?
The probe incorporates a PPS sensing tip, AISI 303/304 stainless-steel housing, and Viton® O-ring seal.
9. Can this probe operate in oil-contaminated environments?
Yes. The FluidLoc™ cable is specifically designed to prevent fluid migration through the cable, making it well suited for lubricated machinery.
10. Which machines commonly use this probe?
It is widely installed on turbines, compressors, generators, pumps, fans, and other critical rotating machinery requiring continuous condition monitoring.
