Precision Sensing Technology for Industrial Machinery Protection

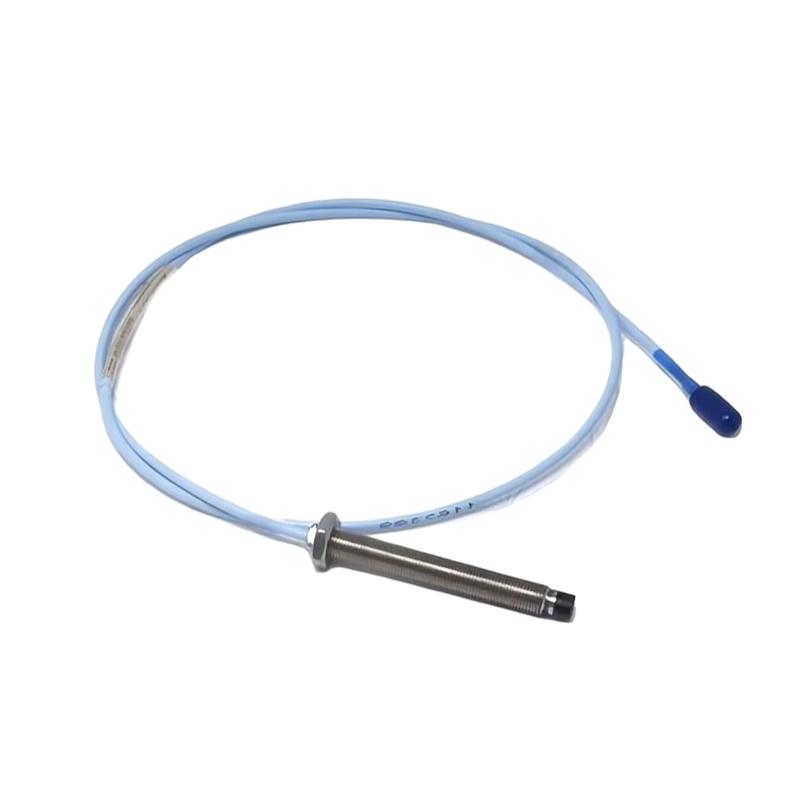

The 330103-00-10-10-02-00 uses advanced eddy current technology to measure the distance between the probe tip and the rotating shaft surface without physical contact. This allows the system to capture both dynamic vibration signals and static shaft position measurements with excellent repeatability.
The probe operates as part of a complete 3300 XL 8 mm Proximity Transducer System, which typically includes the proximity probe, extension cable, and Proximitor® Sensor. This system is widely used for vibration monitoring, position measurement, and Keyphasor® reference applications on fluid-film bearing machinery.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-10-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Series | 330103 Metric Series |
| Measurement Principle | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Mounting Thread | M10 × 1 Metric |
| Armor Type | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 100 mm |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | No Approval Required |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Seal Material | Viton® O-ring |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Approximate Dimensions | Ø8 mm × 100 mm |
| Approximate Weight | 323 g |
Industrial Applications
The 330103-00-10-10-02-00 is suitable for machinery protection and predictive maintenance applications across multiple industries.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Centrifugal compressors, pumps, expanders |
| Petrochemical | Process rotating machinery |
| Manufacturing | Motors, gearboxes, production equipment |
| Marine | Propulsion systems and auxiliary machinery |
Typical monitoring applications include:
-
Shaft radial vibration monitoring
-
Axial position measurement
-
Rotor displacement detection
-
Machine health analysis
-
Predictive maintenance programs
-
Machinery protection systems
Product Advantages
High-Precision Non-Contact Measurement
The eddy current sensing principle eliminates physical contact between the probe and rotating shaft, reducing wear while providing accurate and stable measurement performance over extended operating periods.
Extended 100 mm Metric Configuration
The 100 mm probe case length provides additional installation flexibility for machinery requiring a longer mounting arrangement while maintaining the compact 8 mm sensing design.
Reliable ClickLoc™ Connector System
The Miniature Coaxial ClickLoc™ connector provides secure electrical connection and supports reliable signal transmission within the 3300 XL monitoring platform.
Durable Industrial Construction
The probe uses a rugged stainless-steel housing, PPS sensing tip, and Viton® sealing system to withstand vibration, oil exposure, and demanding industrial environments.
Easy Replacement and System Integration
Designed for compatibility with 3300 XL Extension Cables and 3300 XL Proximitor® Sensors, this probe allows straightforward replacement within existing machinery monitoring installations.
Technical FAQs
1. What is the Bently Nevada 330103-00-10-10-02-00 used for?
It is used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.
2. Which monitoring system does this probe belong to?
It belongs to the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
3. What thread type does this model use?
This model uses an M10 × 1 metric mounting thread.
4. What does the "10" case length option represent?
The 10 option specifies a 100 mm overall case length in the metric 330103 series.
5. What cable length is included?
This configuration includes a 1.0-meter integral cable.
6. What connector type is supplied?
It uses a Miniature Coaxial ClickLoc™ connector with standard cable.
7. Does this model include hazardous-area approval?
No. The 00 approval option indicates no additional agency approval configuration is selected.
8. What materials are used in construction?
The probe uses a PPS sensing tip, AISI 303/304 stainless-steel case, and Viton® O-ring sealing system.
9. Does the probe require direct contact with the shaft?
No. It uses eddy current technology to measure shaft movement without physical contact.
10. What equipment commonly uses this probe?
Typical applications include turbines, compressors, generators, pumps, motors, and other critical rotating machinery.
