Product Introduction
Precision Monitoring Solution for Rotating Equipment

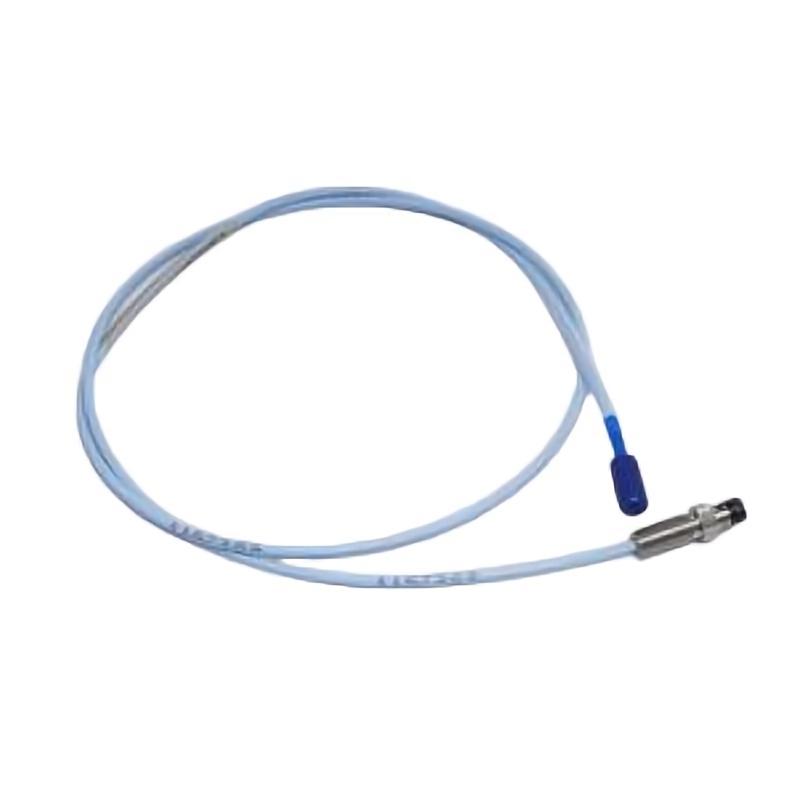

The 330103-00-10-10-02-CN uses proven eddy current sensing technology to measure the gap between the probe tip and a conductive shaft surface without physical contact. This design allows continuous monitoring of both dynamic vibration and static shaft position while avoiding mechanical wear associated with contact-based sensors.
The probe is engineered as part of a complete 3300 XL system, working together with compatible extension cables and Proximitor® sensors to provide stable, high-quality vibration monitoring signals for industrial machinery protection applications.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-10-10-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 330103 Metric Series |
| Measurement Principle | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Mounting Thread | M10 × 1 Metric |
| Armor Type | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 100 mm |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | CN Country-Specific Approval |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Sealing Material | Viton® O-ring |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Approximate Dimensions | Ø8 mm × 100 mm |
| Approximate Weight | 0.323 kg |
Industrial Applications
The 330103-00-10-10-02-CN is widely used in industries where machinery availability and operational safety are essential.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Centrifugal compressors, pumps, expanders |
| Petrochemical | Process compressors and rotating machinery |
| Manufacturing | Motors, gearboxes, production equipment |
| Marine | Propulsion and auxiliary rotating systems |
Typical monitoring applications include:
-
Shaft vibration measurement
-
Radial displacement monitoring
-
Axial thrust position measurement
-
Rotor eccentricity detection
-
Machine protection systems
-
Predictive maintenance programs
Product Advantages
Reliable Eddy Current Measurement
The non-contact sensing method provides stable and repeatable measurements while eliminating mechanical contact between the probe and rotating shaft. This improves service life and reduces maintenance requirements.
Extended 100 mm Metric Probe Design
The 100 mm case length provides additional installation flexibility for machinery applications where standard probe lengths may not provide sufficient mounting depth.
Standard ClickLoc™ Connection
The Miniature Coaxial ClickLoc™ connector provides a secure connection method while maintaining compatibility with the 3300 XL monitoring platform.
CN Approval Configuration
The CN suffix indicates a country-specific approval option designed for installations requiring regional certification requirements, including Chinese hazardous-area applications.
Complete 3300 XL Compatibility
The probe integrates with compatible 3300 XL Extension Cables and 3300 XL Proximitor® Sensors, allowing easy replacement and expansion of existing monitoring systems.
Technical FAQs
1. What is the Bently Nevada 330103-00-10-10-02-CN used for?
It is used for non-contact measurement of shaft vibration, displacement, and position on rotating machinery.
2. Which system does this probe belong to?
It belongs to the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
3. What thread type does this probe use?
This model uses an M10 × 1 metric mounting thread.
4. What does the "10" in the model number indicate?
The 10 option specifies a 100 mm overall probe case length.
5. What cable length is included?
The probe includes a 1.0-meter integral cable.
6. What connector type does this probe use?
It uses a Miniature Coaxial ClickLoc™ connector with standard cable.
7. What does the CN suffix represent?
The CN suffix indicates a country-specific approval configuration.
8. What materials are used in this probe?
The probe uses a PPS sensing tip, AISI 303/304 stainless-steel case, and Viton® O-ring sealing system.
9. Is this probe compatible with older 3300 systems?
The 3300 XL probe family is designed for compatibility within the 3300 XL system and can support certain legacy 3300 series applications depending on configuration.
