High-Performance Shaft Monitoring Sensor for Industrial Reliability

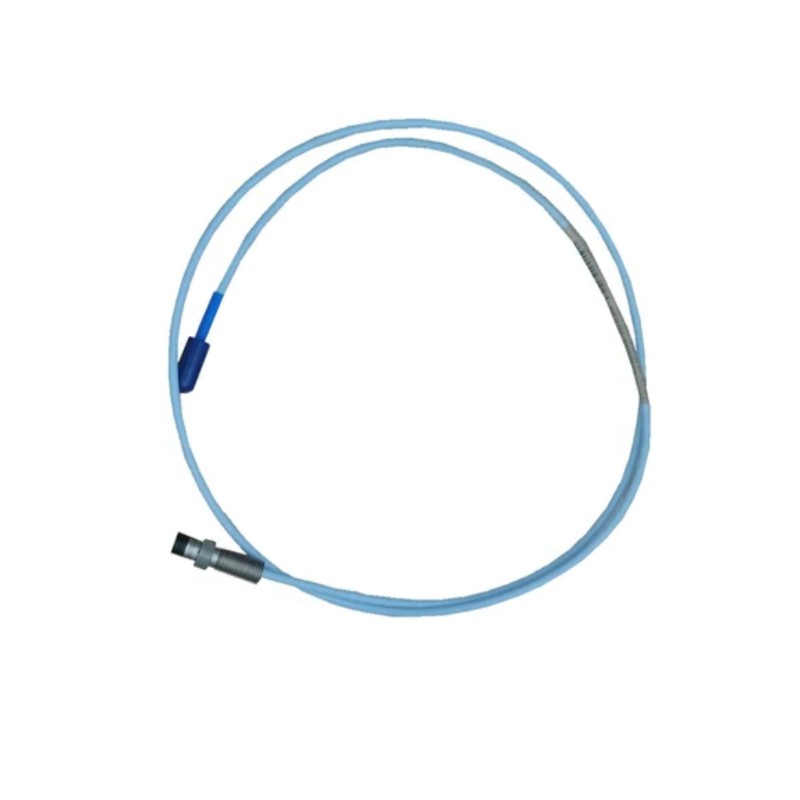

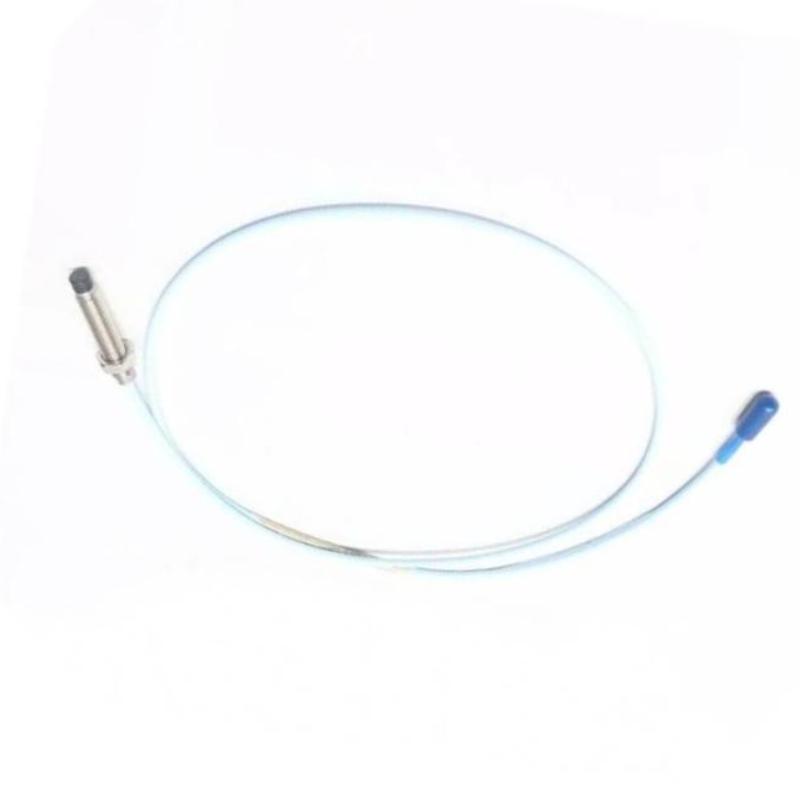

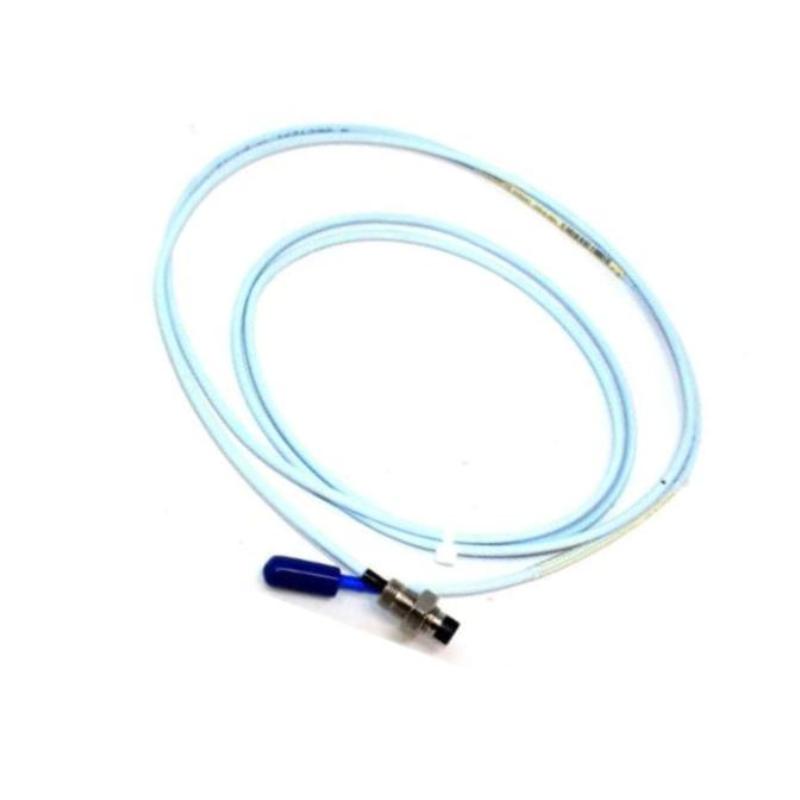

The Bently Nevada 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe is a precision non-contact displacement sensor designed for accurate measurement of shaft vibration, radial displacement, axial position, and rotational movement in critical rotating equipment. As part of the 3300 XL 8 mm Proximity Transducer System, this probe combines proven eddy-current sensing technology with durable mechanical construction to provide stable and repeatable measurements for machinery protection and condition monitoring applications.
This model features a 0.0-inch unthreaded length, 2.0-inch overall case length, 1.5 m (4.9 ft) cable, miniature coaxial ClickLoc™ connector, and CSA, ATEX, IECEx approvals. Designed for use with compatible 3300 XL extension cables and Proximitor® sensors, it provides a dependable solution for monitoring critical assets in power generation, oil and gas, petrochemical, and industrial processing environments.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-20-15-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Probe Type | Standard Mount Proximity Probe |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 2.0 in |
| Cable Length | 1.5 m (4.9 ft) |
| Cable Type | Standard Cable |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Linear Measurement Range | 2.0 mm (80 mils) nominal |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature Range | -51°C to +177°C |
| Approximate Dimensions | 255 × 8 × 8 mm |
| Approximate Weight | 0.323 kg |
