Built for Precise Rotating Equipment Monitoring

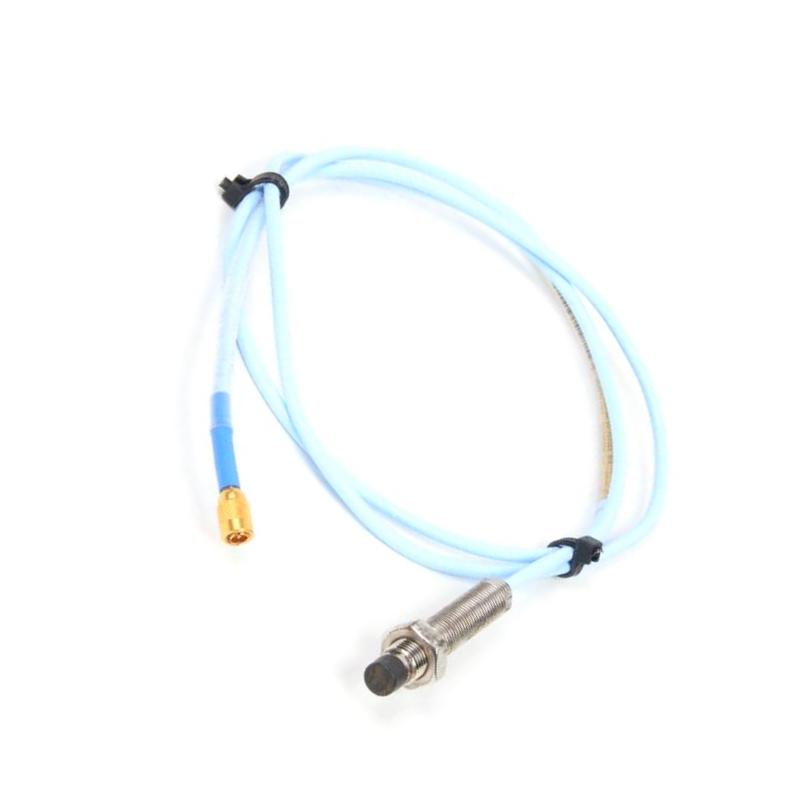

The Bently Nevada 330101-00-20-10-11-00 3300 XL 8 mm Proximity Probe is a precision non-contact sensor developed for continuous monitoring of critical rotating machinery. As a member of the proven 3300 XL product family, this probe delivers dependable measurement of shaft vibration and position, helping improve equipment availability and support effective maintenance planning.
This model features an 8 mm probe tip, 3/8-24 UNF threaded body, 0 mm unthreaded length, 2.0 in (50.8 mm) overall case length, 1.0 m FluidLoc™ cable, and a Miniature ClickLoc™ connector with connector protector. Its rugged stainless-steel construction and stable eddy current sensing technology make it suitable for demanding industrial applications where consistent measurement accuracy is essential.
Product Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-20-10-11-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 mm |
| Overall Case Length | 2.0 in (50.8 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Cable Type | FluidLoc™ Cable |
| Connector Type | Miniature ClickLoc™ Connector with Connector Protector |
| Measurement Technology | Eddy Current, Non-Contact |
| Probe Material | AISI 304 Stainless Steel |
| Typical Output | Shaft Vibration and Position Measurement |
| Operating Temperature | -51°C to +177°C |
| Environmental Protection | IP68 |
| Dimensions | Probe Diameter: 8 mm; Case Length: 50.8 mm |
| Weight | Approx. 0.15 kg |
