Optimized for Continuous Machinery Health Monitoring

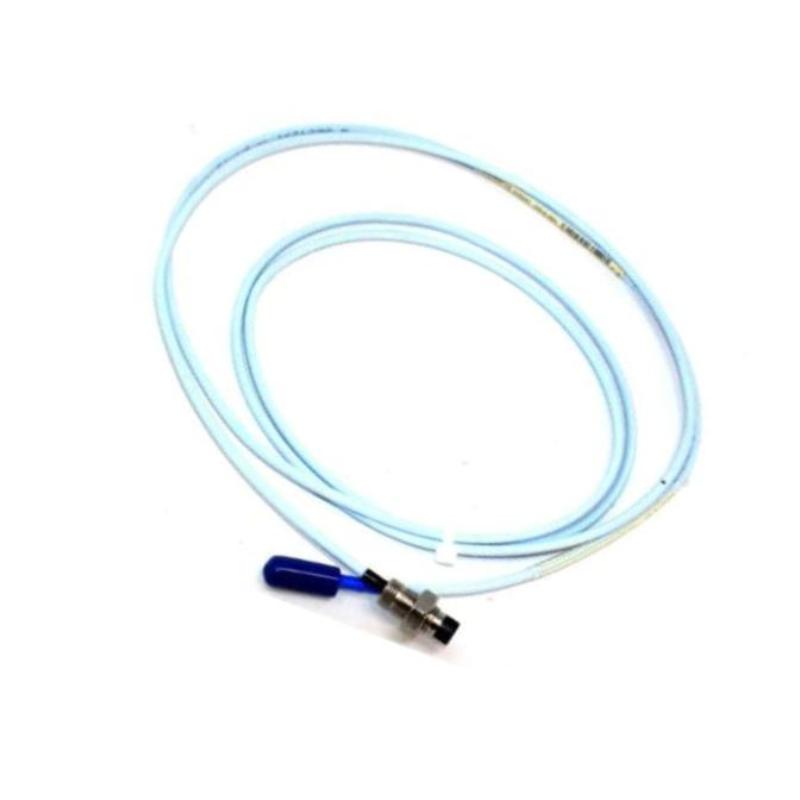

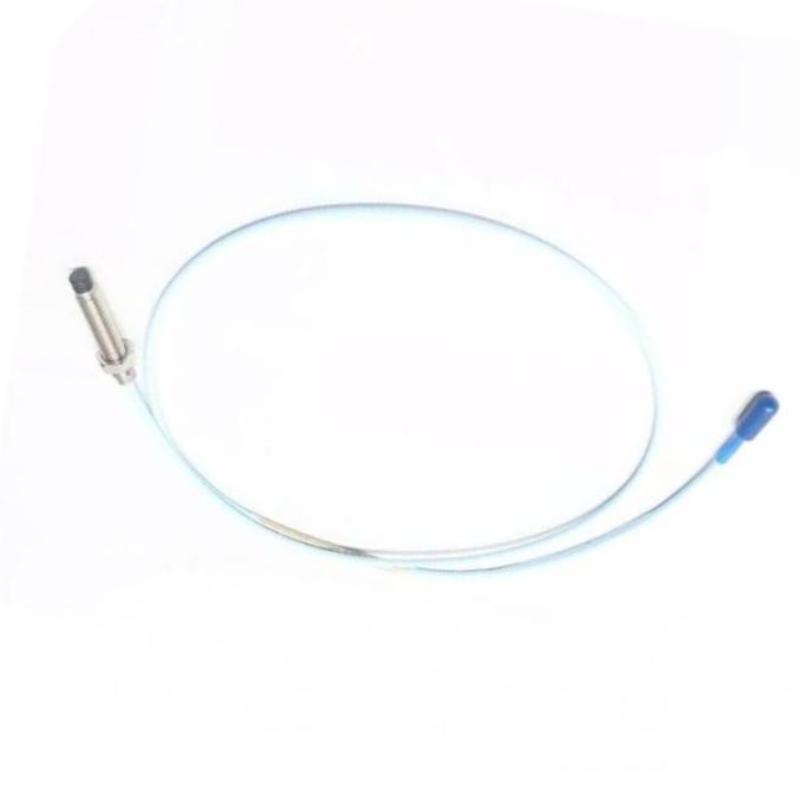

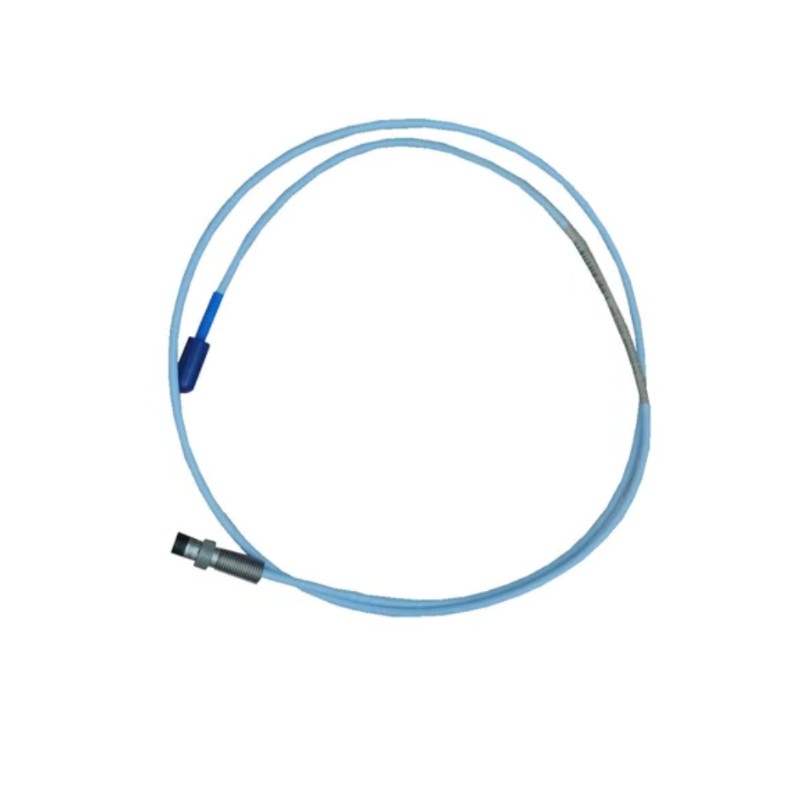

The Bently Nevada 330101-00-20-10-11-05 3300 XL 8 mm Proximity Probe is a precision non-contact sensor developed for accurate measurement of shaft vibration and shaft position in rotating machinery. As part of the proven 3300 XL 8 mm Proximity Probe family, it combines advanced eddy current sensing technology with a rugged mechanical design to deliver reliable performance in demanding industrial environments.
This configuration features a 3/8-24 UNF threaded probe, 0 mm unthreaded length, 2.0 in (50.8 mm) overall case length, 1.0 m FluidLoc™ cable, Miniature ClickLoc™ connector with connector protector, and CSA, ATEX, and IECEx approvals, making it well suited for certified industrial installations requiring dependable machinery condition monitoring.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-20-10-11-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 mm |
| Overall Case Length | 2.0 in (50.8 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Cable Type | FluidLoc™ Cable |
| Connector Type | Miniature ClickLoc™ Connector with Connector Protector |
| Measurement Principle | Eddy Current, Non-Contact |
| Probe Material | AISI 304 Stainless Steel |
| Agency Approvals | CSA, ATEX, IECEx |
| Operating Temperature | -51°C to +177°C |
| Environmental Protection | IP68 |
| Dimensions | Probe Diameter: 8 mm; Case Length: 50.8 mm |
| Weight | Approx. 0.15 kg |
