Reliable Non-Contact Sensing for Critical Rotating Equipment

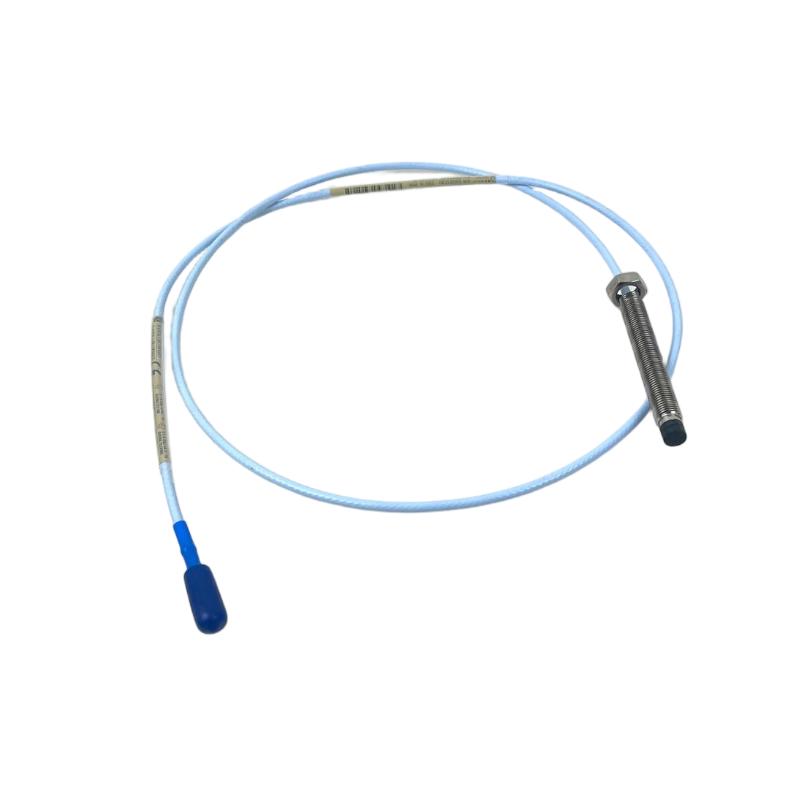

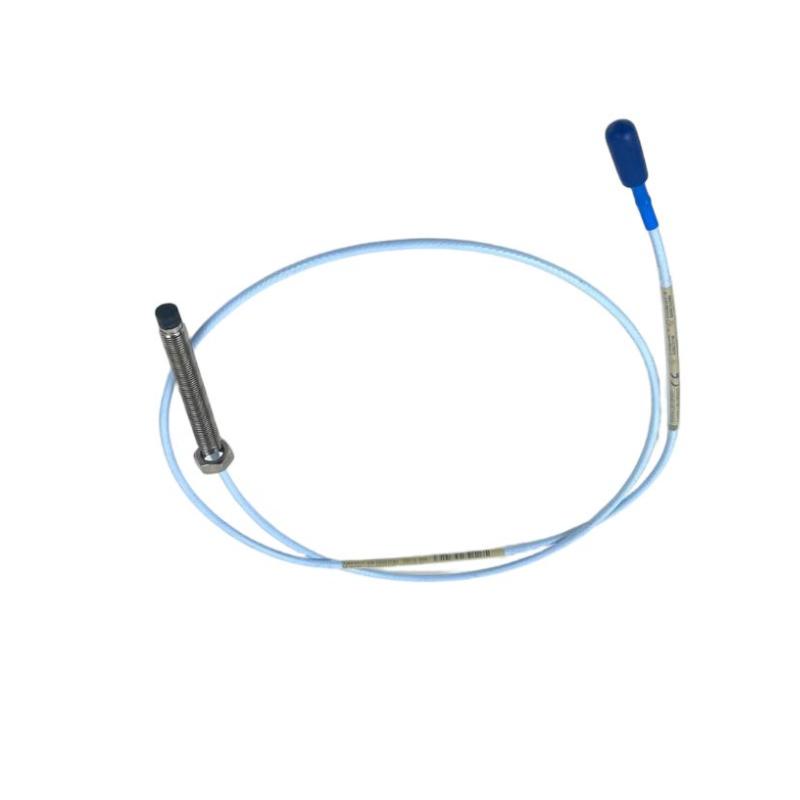

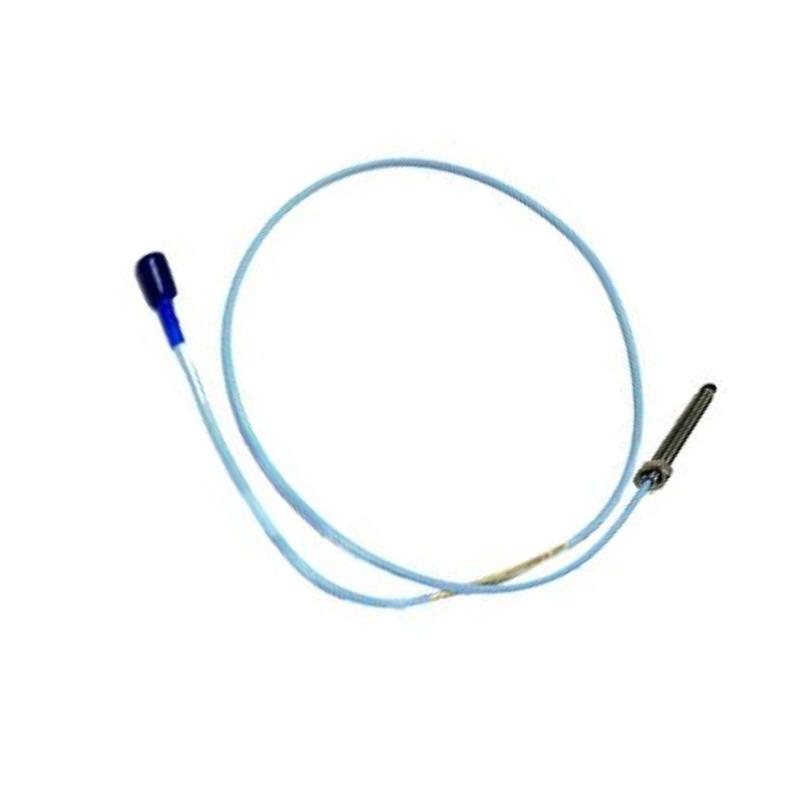

The Bently Nevada 330101-00-20-10-11-CN 3300 XL 8 mm Proximity Probe is a precision eddy current sensor designed to deliver accurate, continuous monitoring of rotating machinery. As part of the industry-proven 3300 XL 8 mm Proximity Probe family, it provides dependable non-contact measurement of shaft vibration and shaft position, helping improve equipment reliability and support predictive maintenance programs.
This configuration features an 8 mm probe tip, 3/8-24 UNF threaded body, 0 mm unthreaded length, 2.0 in (50.8 mm) overall case length, 1.0 m FluidLoc™ cable, and a Miniature ClickLoc™ connector with connector protector. The CN approval option includes ATEX, IECEx, and NEPSI certifications, making it suitable for certified industrial installations that require internationally recognized compliance. The probe is engineered for stable signal performance, excellent environmental durability, and long service life.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-20-10-11-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 mm |
| Overall Case Length | 2.0 in (50.8 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Cable Type | FluidLoc™ Cable |
| Connector Type | Miniature ClickLoc™ Connector with Connector Protector |
| Measurement Principle | Eddy Current, Non-Contact |
| Probe Material | AISI 304 Stainless Steel |
| Approval Option | CN (ATEX, IECEx, NEPSI) |
| Operating Temperature | -51°C to +177°C |
| Environmental Protection | IP68 |
| Dimensions | Probe Diameter: 8 mm; Case Length: 50.8 mm |
| Weight | Approx. 0.15 kg |
