Accurate Non-Contact Measurement for Rotating Equipment

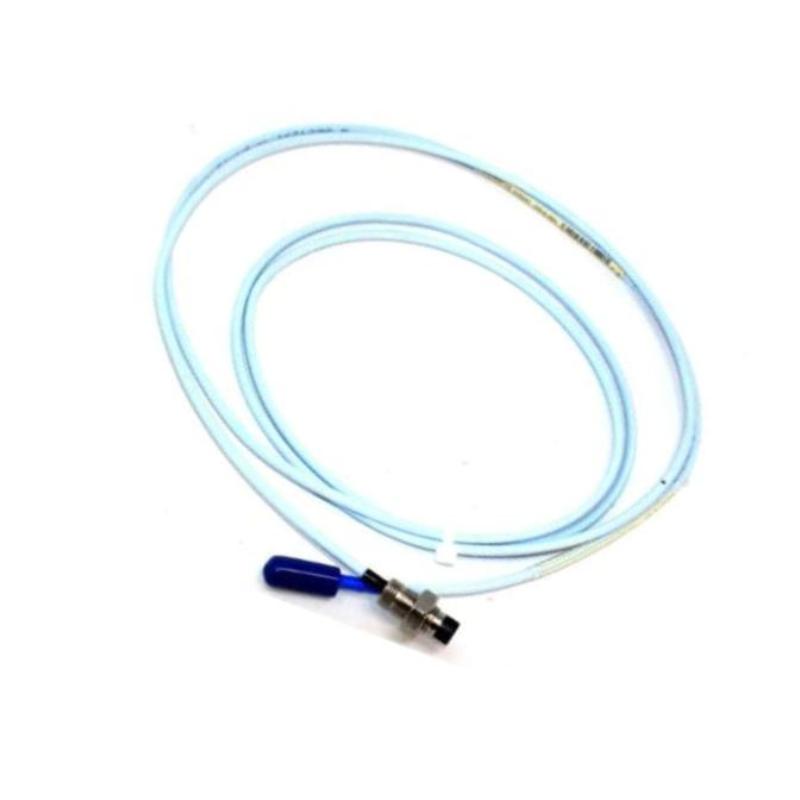

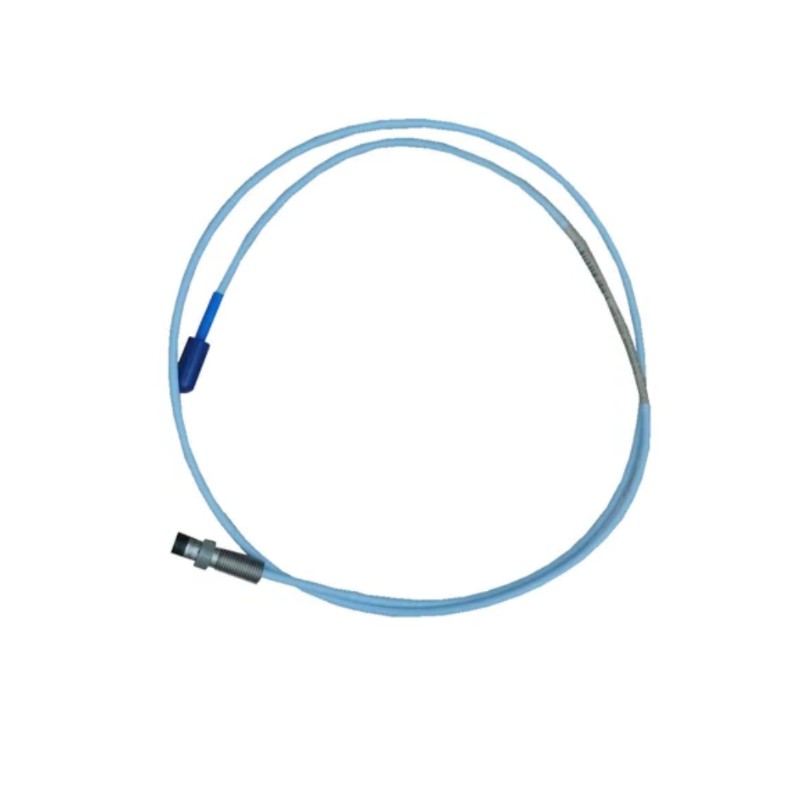

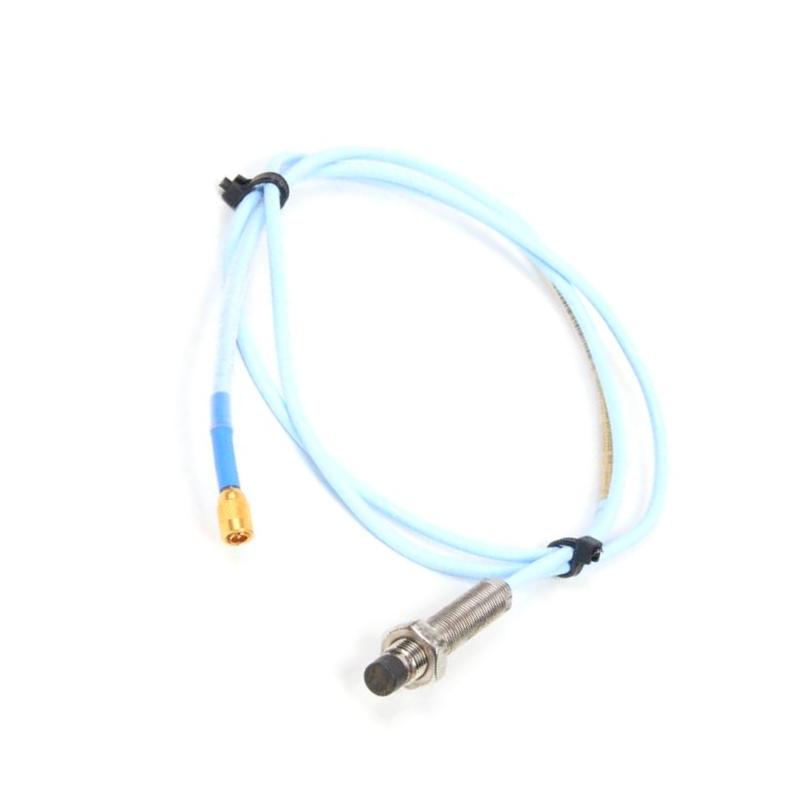

The Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe is a precision eddy current sensor engineered for continuous condition monitoring of rotating machinery. Designed as part of the renowned 3300 XL 8 mm Proximity Probe System, this probe provides reliable non-contact measurement of shaft vibration and position, helping maintenance teams optimize equipment performance and reduce unplanned downtime.
This configuration features a 3/8-24 UNF threaded probe, 0 mm unthreaded length, 2.0 in (50.8 mm) case length, 1.0 m standard cable, and a Miniature ClickLoc™ coaxial connector. The CN approval option includes ATEX, IECEx, and Chinese NEPSI hazardous-area certifications, making it suitable for installation in certified industrial environments where these approvals are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-20-10-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 mm |
| Overall Case Length | 2.0 in (50.8 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Measurement Principle | Eddy Current, Non-Contact |
| Output Function | Shaft Vibration and Position Measurement |
| Probe Material | Stainless Steel |
| Agency Approval | ATEX, IECEx, Chinese NEPSI (CN Option) |
| Operating Temperature | -51°C to +177°C (Probe) |
| Dimensions | Probe Diameter: 8 mm; Case Length: 50.8 mm |
| Weight | Approx. 0.23 kg |
