Precision Sensing for Reliable Machinery Condition Monitoring

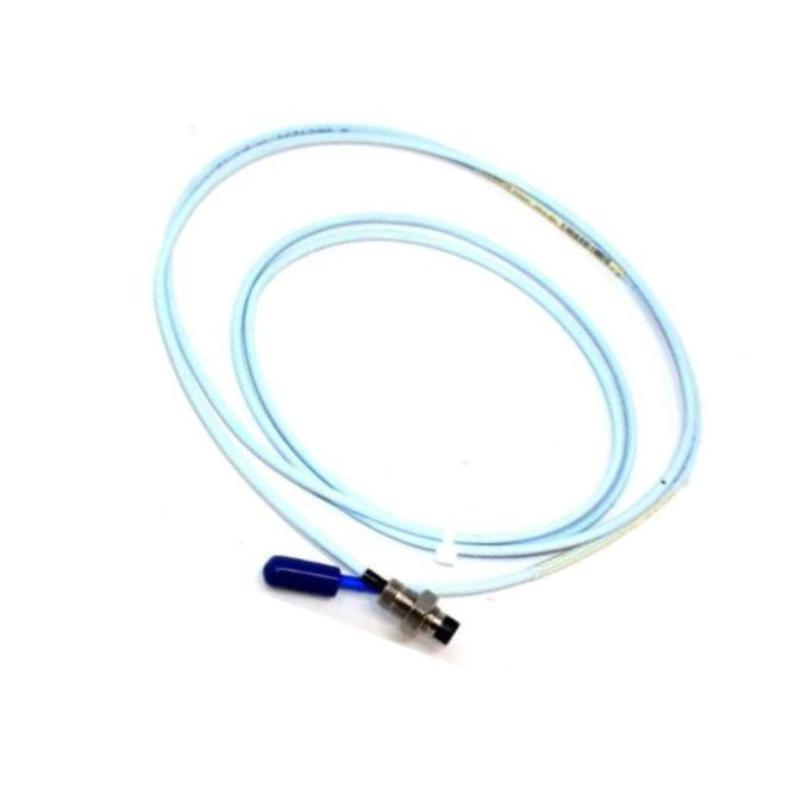

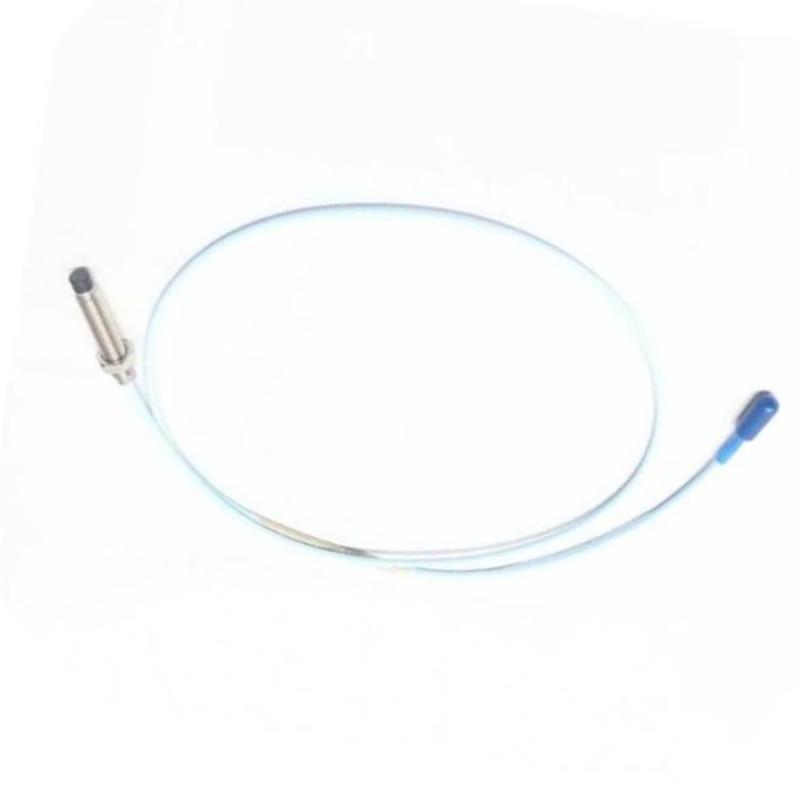

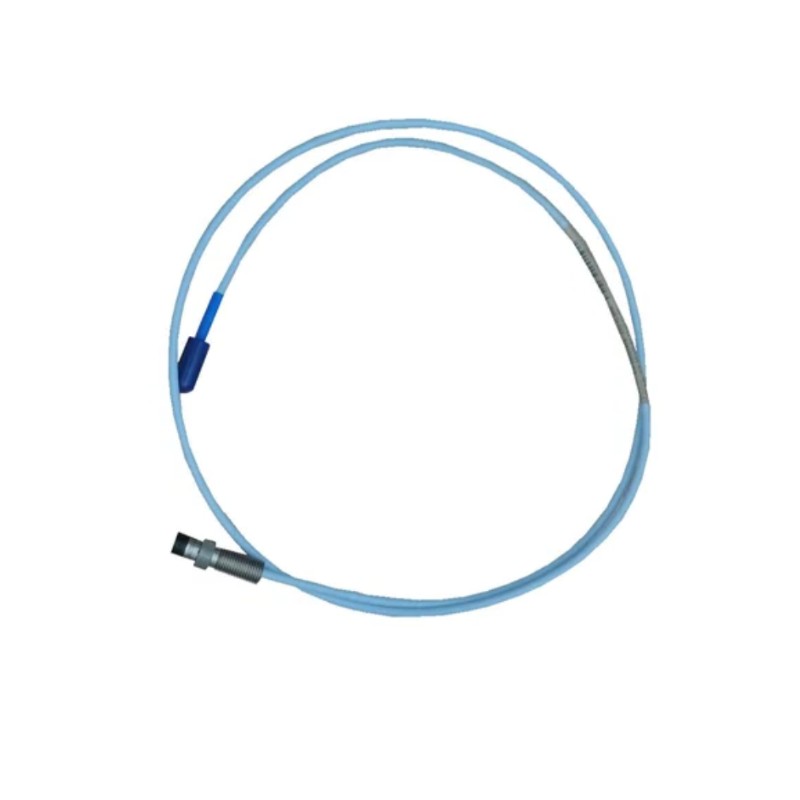

The Bently Nevada 330101-00-20-10-02-AE 3300 XL 8 mm Proximity Probe System is a high-performance eddy current sensing solution designed for continuous monitoring of critical rotating equipment. As part of the trusted 3300 XL 8 mm Proximity Probe System, this model delivers highly accurate non-contact measurements for shaft vibration, axial position, and rotational speed, helping maintenance teams improve equipment reliability and operational efficiency.
Engineered for demanding industrial environments, the system consists of a 3300 XL 8 mm proximity probe, a compatible extension cable, and a Proximitor® sensor. The advanced design provides excellent linearity, stable signal output, and dependable long-term performance, making it an ideal choice for machinery protection and predictive maintenance programs.
Technical Details
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-20-10-02-AE |
| Product Type | 3300 XL 8 mm Proximity Probe System |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 mm |
| Overall Case Length | 2.0 in (50.8 mm) |
| Cable Type | Standard ClickLoc™ Miniature Coaxial Connector |
| Measurement Principle | Eddy Current, Non-Contact |
| Typical Applications | Shaft Vibration, Axial Position, Speed Measurement |
| Housing Material | Stainless Steel |
| Operating Temperature | -51°C to +177°C (Probe) |
| Dimensions | Approx. 50.8 mm overall case length, 8 mm probe diameter |
| Weight | Approx. 0.18 kg (Probe Assembly) |
