Engineered for Accurate and Stable Machinery Monitoring

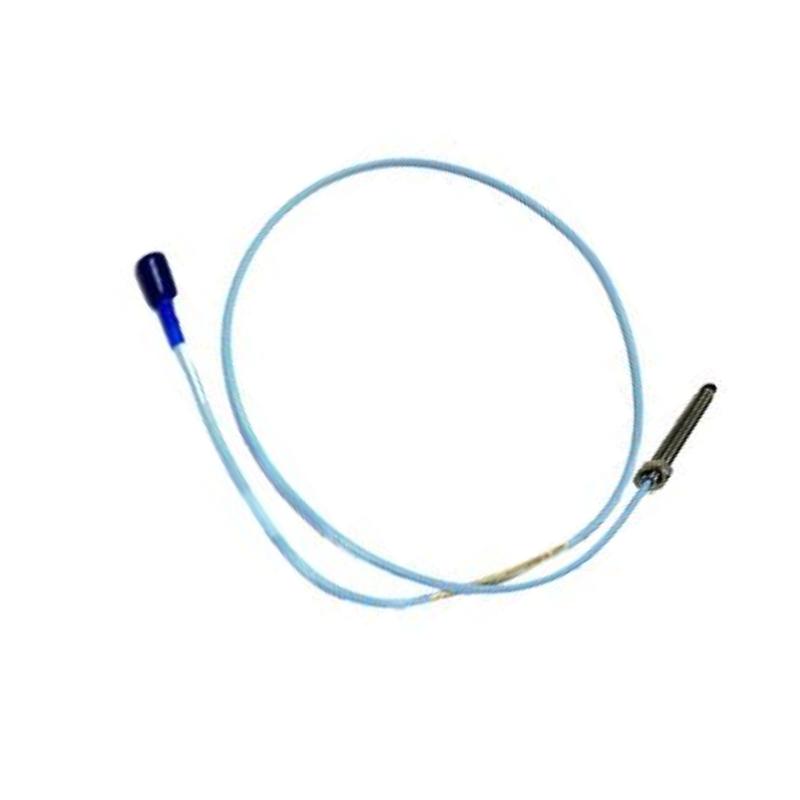

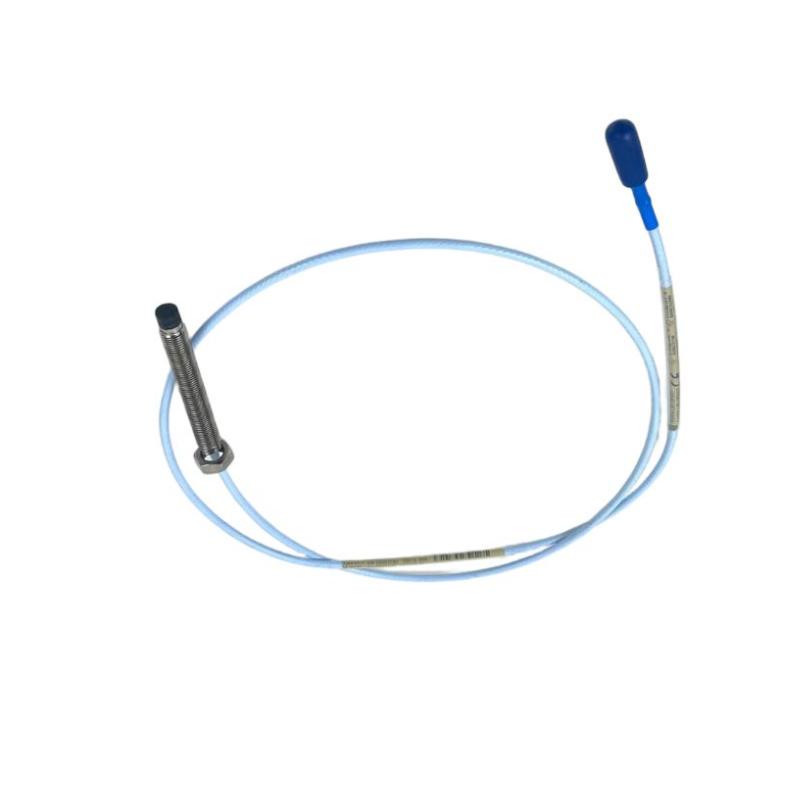

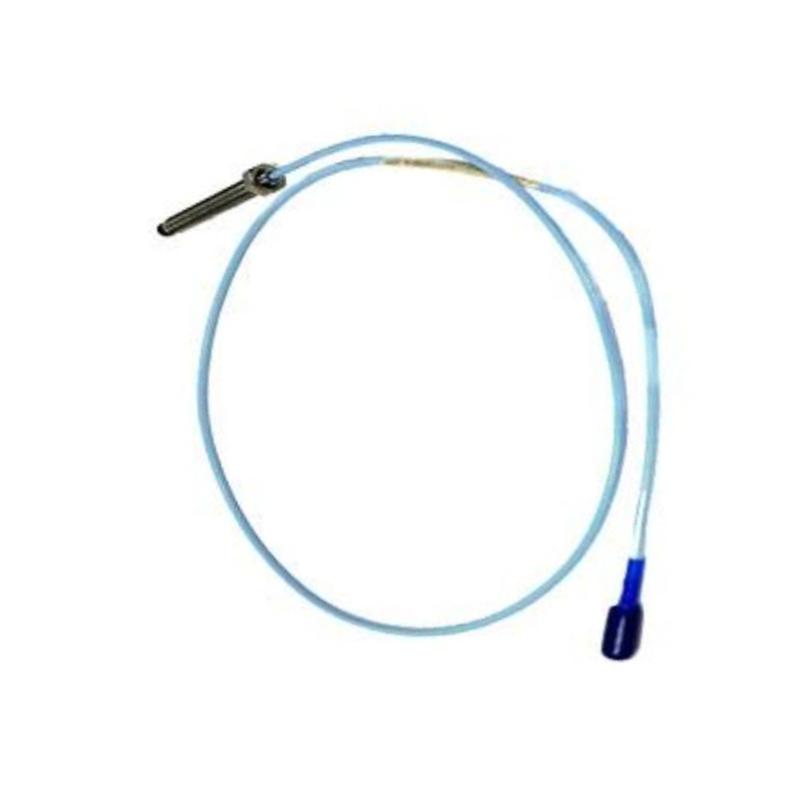

The Bently Nevada 330101-00-20-10-11-R0 3300 XL 8 mm Proximity Probe is a high-precision non-contact sensor developed for continuous condition monitoring of rotating equipment. As part of the trusted 3300 XL 8 mm Proximity Probe series, it is designed to deliver reliable shaft vibration and shaft position measurements that support equipment reliability, optimized maintenance schedules, and efficient plant operation.
This configuration features an 8 mm probe tip, 3/8-24 UNF threaded body, 0 mm unthreaded length, 2.0 in (50.8 mm) case length, 1.0 m FluidLoc™ cable, and a Miniature ClickLoc™ connector with connector protector. The R0 approval option is intended for applications requiring region-specific certification, while maintaining the same dependable measurement performance and mechanical durability as other 3300 XL probe configurations. The probe integrates seamlessly with compatible extension cables and Proximitor® sensors to form a complete machinery monitoring solution.
Product Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-20-10-11-R0 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 mm |
| Overall Case Length | 2.0 in (50.8 mm) |
| Cable Length | 1.0 m (3.3 ft) |
| Cable Type | FluidLoc™ Cable |
| Connector Type | Miniature ClickLoc™ Connector with Connector Protector |
| Measurement Technology | Eddy Current, Non-Contact |
| Probe Material | AISI 304 Stainless Steel |
| Ingress Protection | IP68 |
| Operating Temperature | -51°C to +177°C |
| Dimensions | Probe Diameter: 8 mm; Case Length: 50.8 mm |
| Weight | Approx. 0.15 kg |
