Reliable Shaft Measurement Technology for Critical Assets

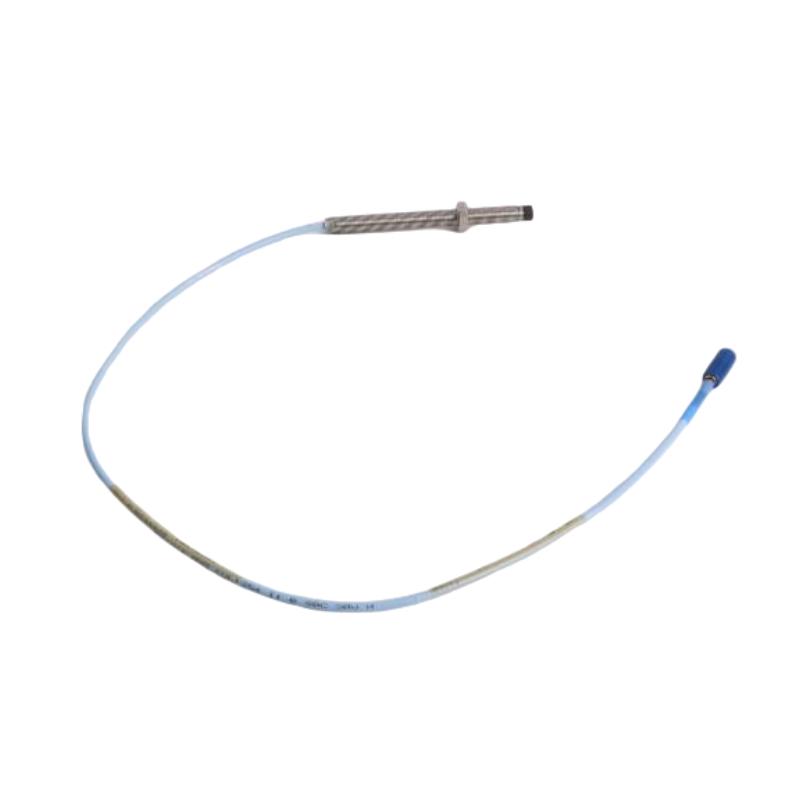

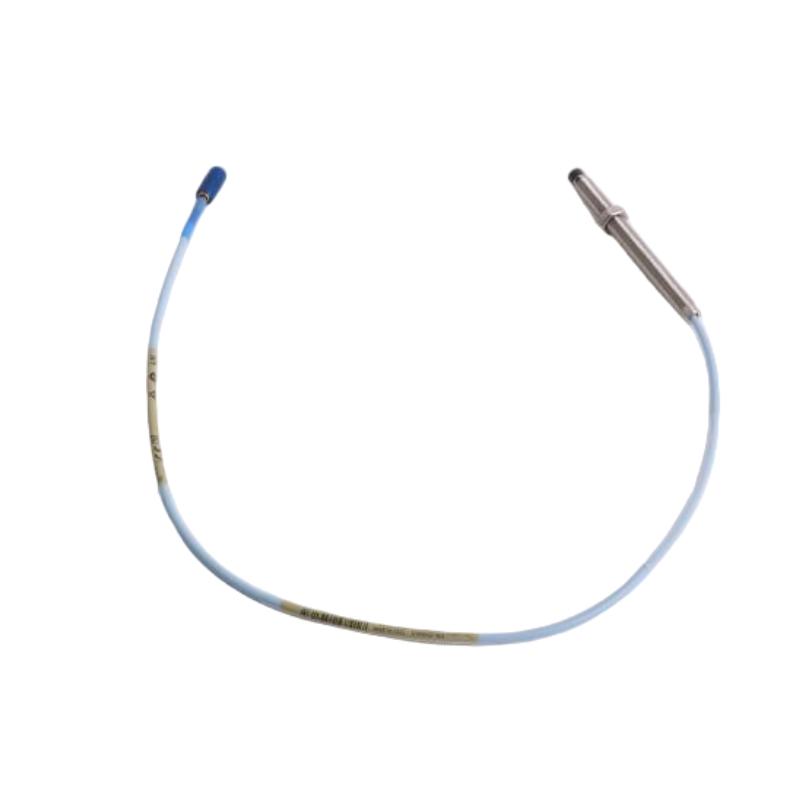

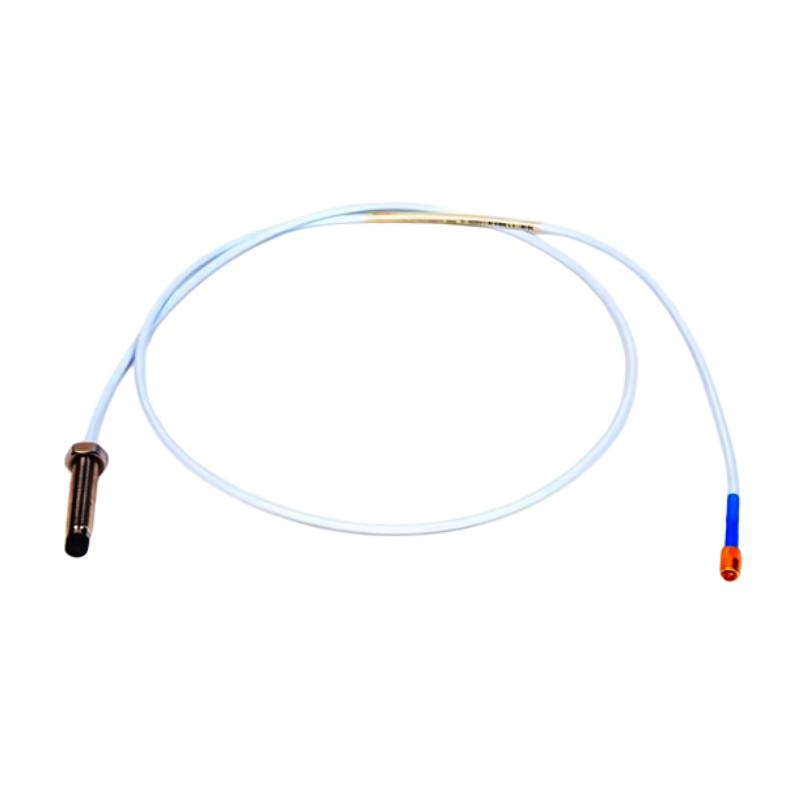

The 3300 XL 8mm Proximity Probe uses proven eddy current sensing technology to provide precise, non-contact measurement between the probe tip and rotating shaft surface. Unlike contact sensors, it does not introduce mechanical wear and can continuously monitor machine behavior during operation.
The 330101 series is designed without armor and uses a 3/8-24 UNF mounting thread, making it ideal for standard installations where mechanical protection from armored conduit is not required.
Key functions include:
-
Radial shaft vibration measurement
-
Shaft displacement monitoring
-
Rotor position detection
-
Bearing vibration analysis
-
Keyphasor® reference applications
-
Turbine supervisory instrumentation (TSI)
The probe works together with compatible 3300 XL extension cables and Proximitor Sensors to create a complete machinery protection measurement chain.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-12-50-01-05 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Sensor Technology | Eddy Current Non-Contact Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Probe Construction | Standard Mount, Non-Armored |
| Total Cable Length | 5.0 m (16.4 ft) |
| Cable Type | Standard Cable |
| Connector Type | Miniature Coaxial ClickLoc Connector with Protector |
| Agency Approval | Multiple Approvals |
| Compatible Sensor | 3300 XL Proximitor Sensor |
| Measurement Range | Linear displacement measurement system |
| Target Material | AISI 4140 steel (standard calibration target) |
| Operating Temperature | Approx. -40°C to +177°C (probe dependent) |
| Probe Dimensions | Approx. 8 mm diameter × 222 mm overall length (configuration dependent) |
| Cable Diameter | Approx. 3.68 mm |
| Typical Weight | Approx. 0.25 kg |
Industrial Applications
Built for High-Value Rotating Equipment
The 330101-00-12-50-01-05 is widely used in machinery protection systems where accurate shaft movement monitoring is required.
| Industry | Equipment Applications |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, expanders |
| Petrochemical | Centrifugal compressors and process equipment |
| Marine | Propulsion turbines and auxiliary machinery |
| Manufacturing | Motors, gearboxes, rotating machinery |
Common monitoring applications:
-
Shaft relative vibration measurement
-
Bearing condition monitoring
-
Axial displacement monitoring
-
Rotor stability analysis
-
Predictive maintenance systems
-
Continuous machinery protection
Product Advantages
Accurate Non-Contact Measurement
The eddy current sensing principle provides reliable measurement without physical contact, allowing continuous monitoring of high-speed rotating shafts.
Proven 3300 XL Performance
The 3300 XL 8 mm system is designed for high accuracy, repeatability, and interchangeability across compatible Bently Nevada components.
Flexible 5-Meter Installation
The 5-meter cable configuration provides installation flexibility between the machine-mounted probe and monitoring cabinet while maintaining system performance.
Enhanced Connector Reliability
The ClickLoc connector design improves installation efficiency and helps maintain secure electrical connections in industrial environments.
Suitable for Critical Machinery Protection
Combined with a compatible Proximitor Sensor and monitoring module, the probe provides dependable data for detecting abnormal vibration conditions before equipment damage occurs.
Technical FAQs
Q1: What is the Bently Nevada 330101-00-12-50-01-05 used for?
It is used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery monitoring systems.
Q2: What series does this probe belong to?
It belongs to the 3300 XL 8mm Proximity Probe Series.
Q3: What is the probe diameter?
The sensing tip diameter is 8 mm.
Q4: What type of mounting thread does this model use?
This model uses a 3/8-24 UNF thread.
Q5: What does the "50" option indicate?
The "50" configuration indicates a 5.0-meter total length option for the probe assembly.
Q6: Does this probe include armor protection?
No. The 330101 series is the standard non-armored probe version.
Q7: Which Proximitor Sensor should be paired with this probe?
It should be paired with a compatible 3300 XL Proximitor Sensor configured for the same system length.
Q8: What measurements can this probe perform?
It can measure dynamic vibration signals and static shaft position changes.
Q9: Where is this probe commonly installed?
Typical installations include turbines, compressors, pumps, generators, and other fluid-film bearing machines.
Q10: Why choose a 3300 XL 8mm probe?
It provides accurate shaft monitoring, long-term reliability, easy replacement compatibility, and proven performance in industrial machinery protection systems.
