Compact and High-Density Field Wiring Interface for S800 I/O Systems

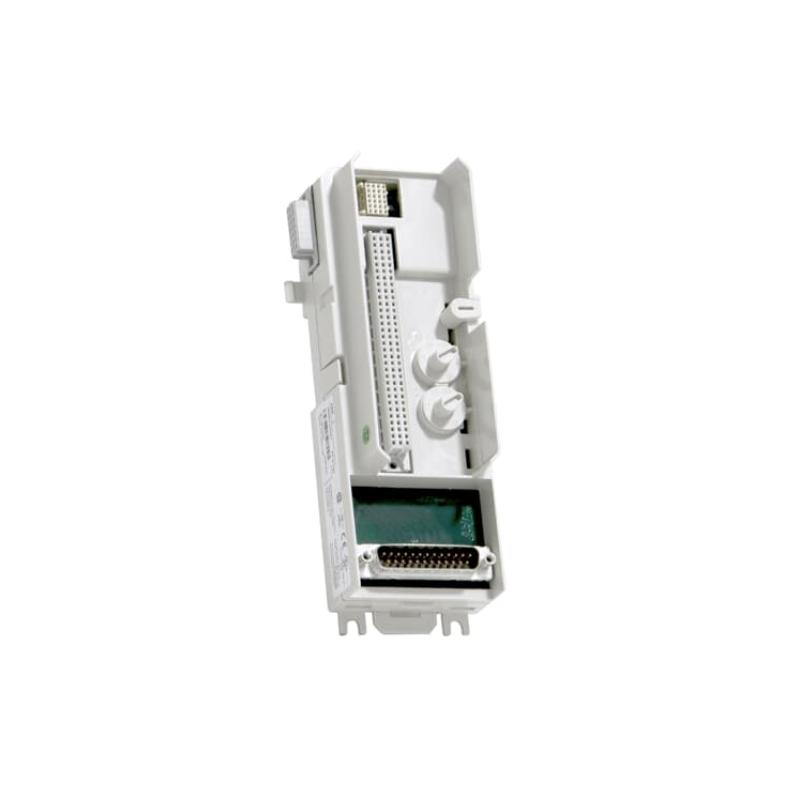

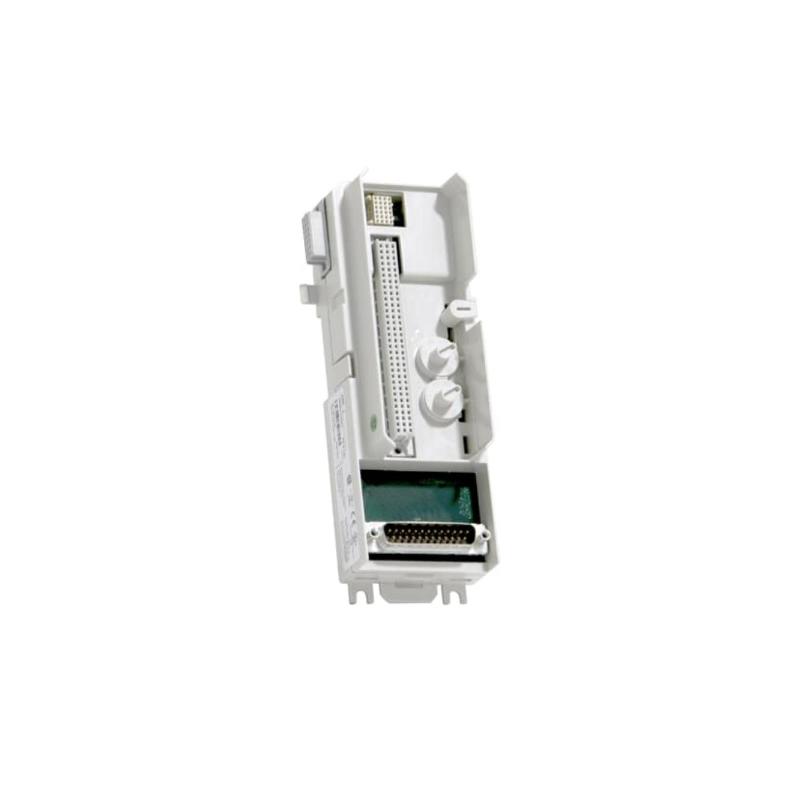

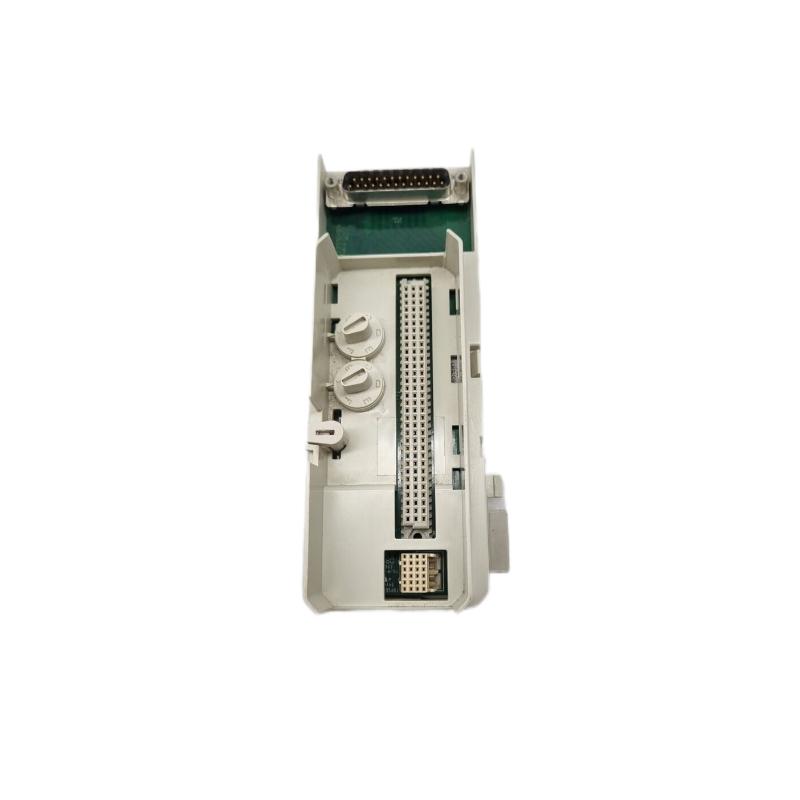

The ABB TU812V1 (3BSE013232R1) Module Termination Unit is a compact interface module designed for ABB S800 I/O systems, enabling structured field wiring connection and stable signal distribution in industrial automation environments. As a passive component, it does not process signals but provides a reliable termination and communication interface between field devices and I/O modules.
Engineered for high-density control cabinet applications, the TU812V1 supports up to 16 signal channels and integrates ABB’s ModuleBus architecture, ensuring consistent communication between I/O modules while maintaining installation efficiency and wiring clarity. It is widely used in process industries where system reliability, modular expansion, and compact design are essential.
Technical Specifications
| Specification Item | Details |
|---|
| Model | TU812V1 |
| Order Number | 3BSE013232R1 |
| Manufacturer | ABB |
| Product Type | Module Termination Unit (MTU) |
| System Platform | ABB S800 I/O / 800xA |
| Channel Capacity | Up to 16 channels |
| Rated Voltage | 50 V |
| Connection Type | 25-pin D-sub connector |
| Function | Passive field termination + ModuleBus distribution |
| Mounting Method | DIN rail mounting |
| Mechanical Keying | 36 configuration combinations |
| Dielectric Test Voltage | 500 V AC |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Protection Class | IP20 |
| Approximate Dimensions | 64 × 64 × 170 mm |
| Approximate Weight | ~0.17 kg |
Role in Industrial Automation Systems
The TU812V1 serves as a key infrastructure element within ABB distributed control systems. It acts as the connection layer between field wiring and S800 I/O modules, while also distributing ModuleBus signals to maintain synchronized system communication.
Typical application environments include:
-
ABB 800xA distributed control systems
-
S800 I/O control cabinets
-
Power generation automation systems
-
Oil and gas process instrumentation
-
Petrochemical and refinery plants
-
Water treatment and utility systems
-
Industrial manufacturing automation
Its compact architecture allows engineers to build scalable and organized I/O systems without sacrificing cabinet space or signal reliability.
Key Features and Engineering Advantages
High-Density 16-Channel Integration
Supports up to 16 field signal connections, enabling efficient use of control cabinet space in complex automation systems.
Stable Signal Termination
Ensures reliable connection between field devices and I/O modules, reducing wiring complexity and improving signal integrity.
ModuleBus Distribution Architecture
Distributes internal communication signals between modules, supporting stable system synchronization.
Mechanical Keying Protection
Provides 36 configuration combinations to prevent incorrect module insertion and improve system safety.
Compact DIN Rail Installation
Designed for efficient mounting in industrial cabinets, optimizing space utilization and installation speed.
Industrial Reliability Design
Built for continuous operation in demanding environments with stable long-term performance.
Technical FAQs
1. What is the main function of TU812V1?
It connects field wiring to ABB S800 I/O modules and distributes ModuleBus signals.
2. Is TU812V1 an active processing module?
No, it is a passive termination unit without signal processing capability.
3. How many channels does it support?
It supports up to 16 signal channels.
4. What system is it used with?
It is used with ABB S800 I/O systems in 800xA automation platforms.
5. What is the role of ModuleBus?
It enables internal communication between I/O modules within the system.
6. Does TU812V1 amplify or process signals?
No, it only provides termination and signal routing.
7. How is it installed?
It is mounted on a standard DIN rail inside control cabinets.
8. What is mechanical keying used for?
It prevents incorrect installation of incompatible I/O modules.
9. Which industries commonly use this module?
Oil and gas, power generation, chemical processing, and manufacturing industries.
10. Why is TU812V1 important in automation systems?
It ensures structured wiring, stable communication, and scalable I/O system design.
