Precision Non-Contact Measurement Solution for Rotating Machinery Protection

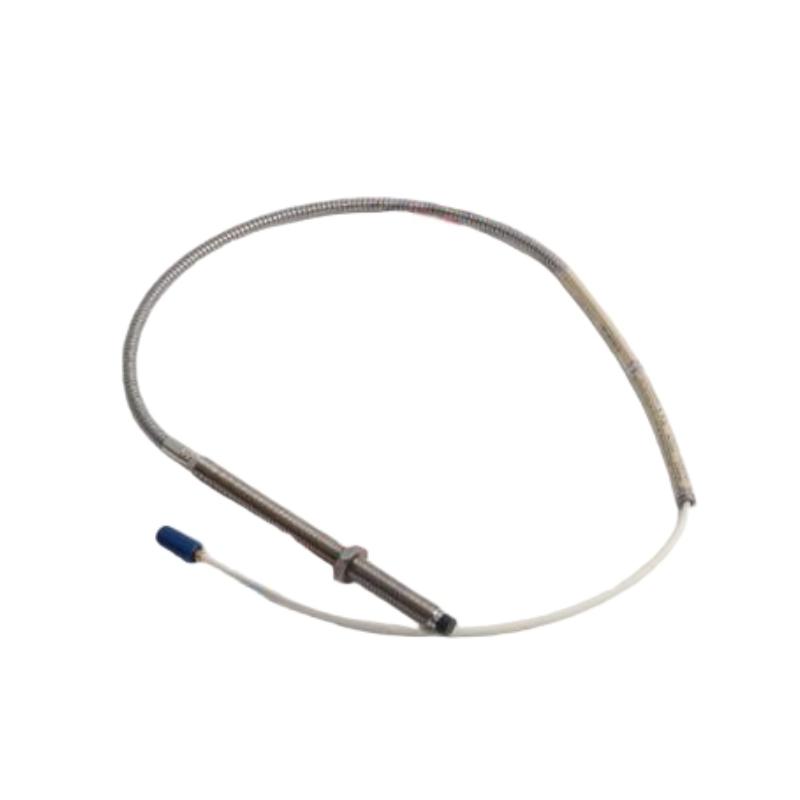

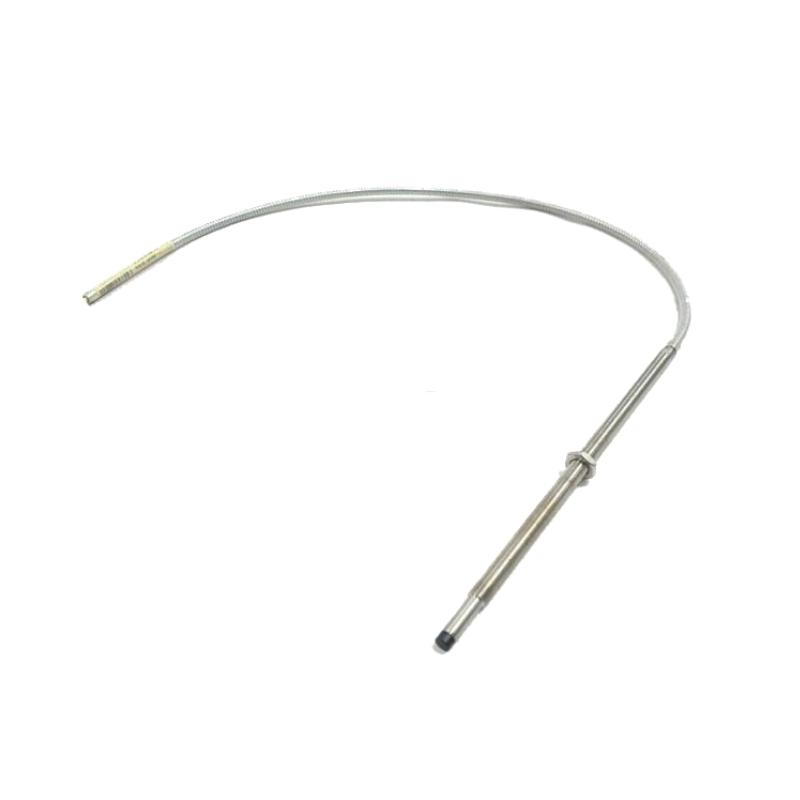

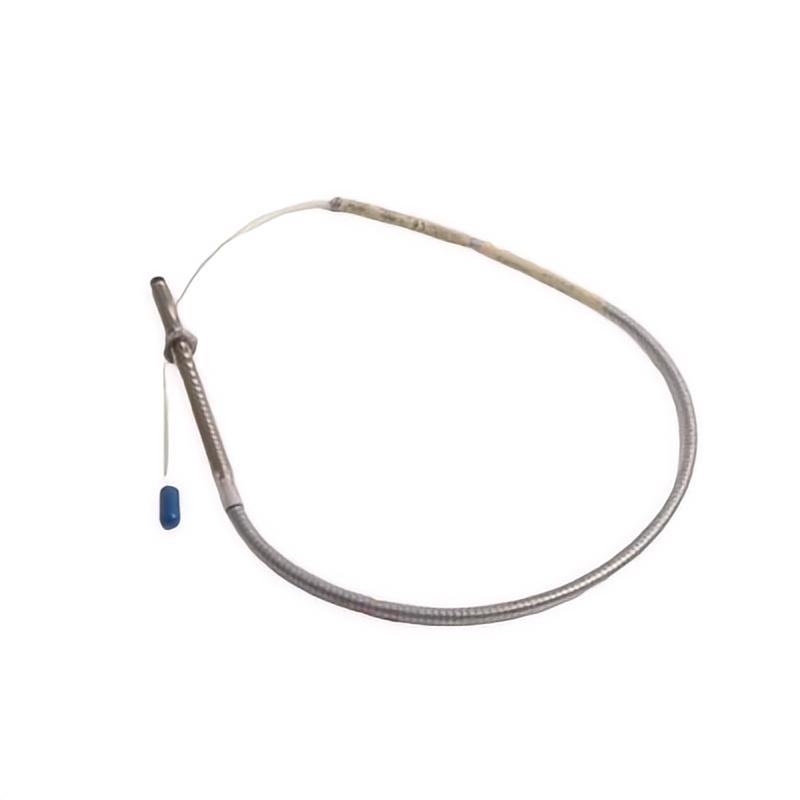

The Bently Nevada 22810-00-04-10-02 7200 Series 8mm Standard Mount Probe is a high-performance proximity probe designed for accurate shaft vibration, radial displacement, and position monitoring in critical rotating equipment. As part of the proven 7200 Proximity Transducer System, this probe uses eddy current sensing technology to provide reliable non-contact measurement between the probe tip and the monitored shaft surface.
Engineered for industrial reliability, the 22810-00-04-10-02 features an 8 mm probe diameter, standard M10 × 1 mounting configuration, and 1.0-meter total length, making it suitable for a wide range of machinery protection applications. Its rugged stainless-steel construction and precise signal performance make it a trusted choice for power plants, petrochemical facilities, and other industries where equipment availability and operational safety are critical.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 22810-00-04-10-02 |
| Product Type | 7200 Series 8mm Standard Mount Probe |
| Probe Diameter | 8 mm |
| Mounting Type | Standard Mount |
| Mounting Thread | M10 × 1 |
| Total Probe Length | 1.0 m |
| Connector Type | Miniature Male Coaxial Connector |
| Cable Type | Integral Extension Cable |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Application | Shaft Vibration and Position Monitoring |
| Operating Temperature Range | Approx. -40°C to +177°C |
| Housing Material | Stainless Steel |
| Dimensions | Approx. 1000 × 10 × 10 mm |
| Weight | Approx. 2.0 kg |
Industrial Applications
The 22810-00-04-10-02 proximity probe is widely applied in machinery condition monitoring systems where high measurement accuracy and long-term stability are required.
- Steam Turbine Vibration Monitoring
- Gas Turbine Protection Systems
- Centrifugal Compressor Monitoring
- Generator Shaft Position Measurement
- Industrial Motor Monitoring
- Pump Condition Monitoring
- Refinery Rotating Equipment
- Petrochemical Processing Systems
- Power Generation Facilities
- Heavy Industrial Machinery
Technical FAQs
1. What is the main function of the Bently Nevada 22810-00-04-10-02?
The probe measures the distance between the probe tip and a conductive rotating shaft target, providing vibration and displacement data for machinery protection systems.
2. Which monitoring system is this probe designed for?
The 22810-00-04-10-02 belongs to the Bently Nevada 7200 Series Proximity Transducer System.
3. What is the sensing diameter of this probe?
This model uses an 8 mm diameter sensing tip, which is commonly selected for large rotating machinery applications.
4. What type of mounting does this probe use?
The probe features a standard mount design with an M10 × 1 thread, allowing secure installation on compatible machinery housings.
5. What is the total cable length of the 22810-00-04-10-02?
The probe assembly provides a 1.0-meter total length, offering flexibility for common machinery installation layouts.
6. What measurement technology does this probe use?
It uses eddy current sensing technology to provide non-contact measurement of shaft position and vibration.
7. What type of equipment can use this proximity probe?
It is commonly installed on turbines, compressors, pumps, motors, generators, and other critical rotating machinery.
8. Is the 22810-00-04-10-02 suitable for continuous operation?
Yes. It is designed for permanent installation in industrial machinery protection systems requiring reliable long-term monitoring.
9. What are the dimensions and weight of this probe?
The probe assembly is approximately 1000 × 10 × 10 mm with a shipping weight of approximately 2.0 kg.
10. Why choose the Bently Nevada 22810-00-04-10-02?
Its proven 7200 Series compatibility, accurate sensing performance, rugged construction, and dependable operation make it a strong choice for protecting valuable rotating equipment assets.
