Technical FAQs

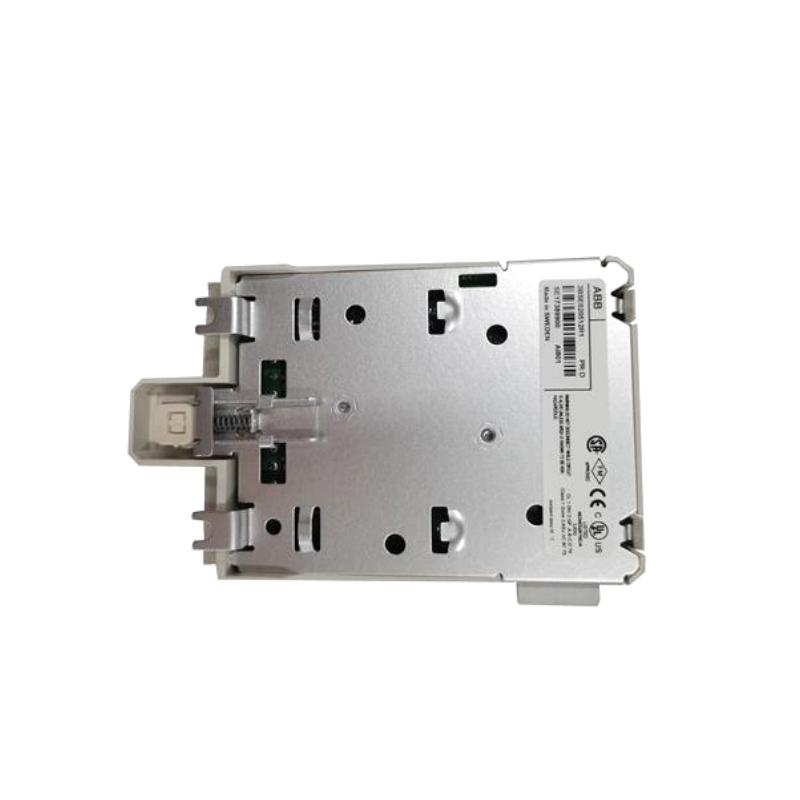

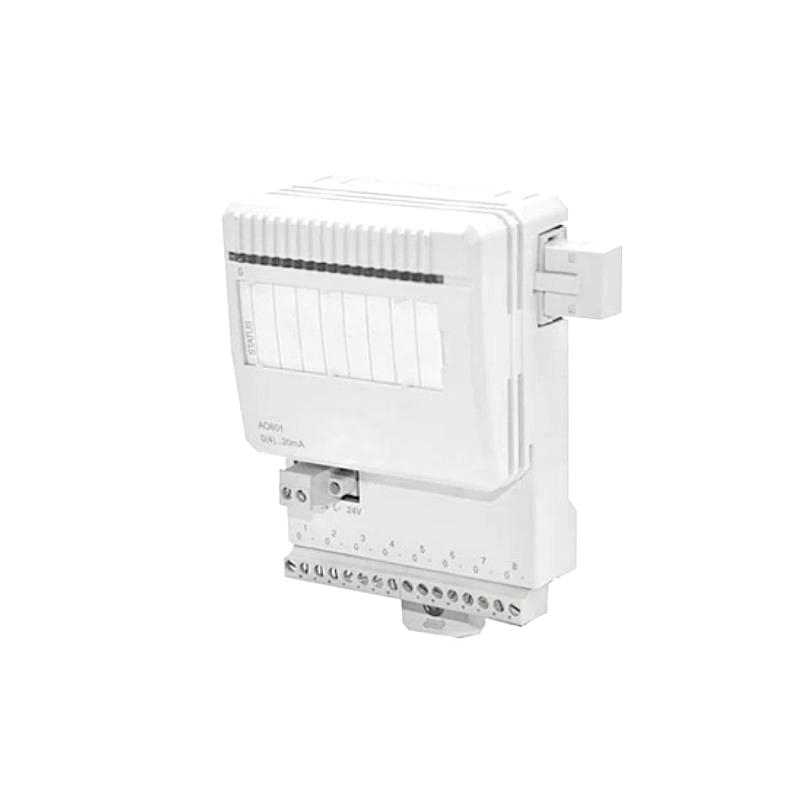

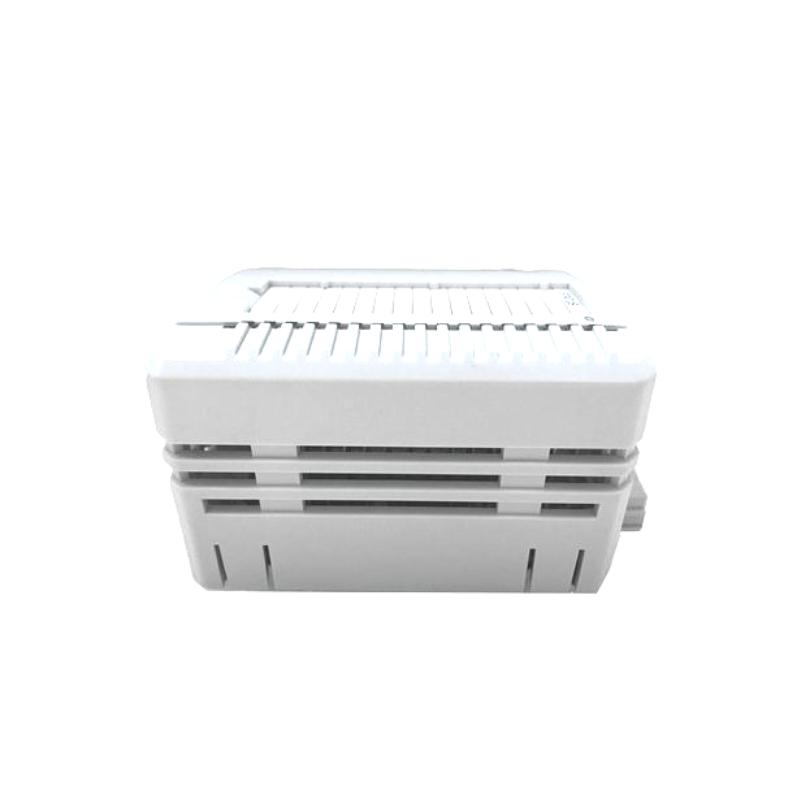

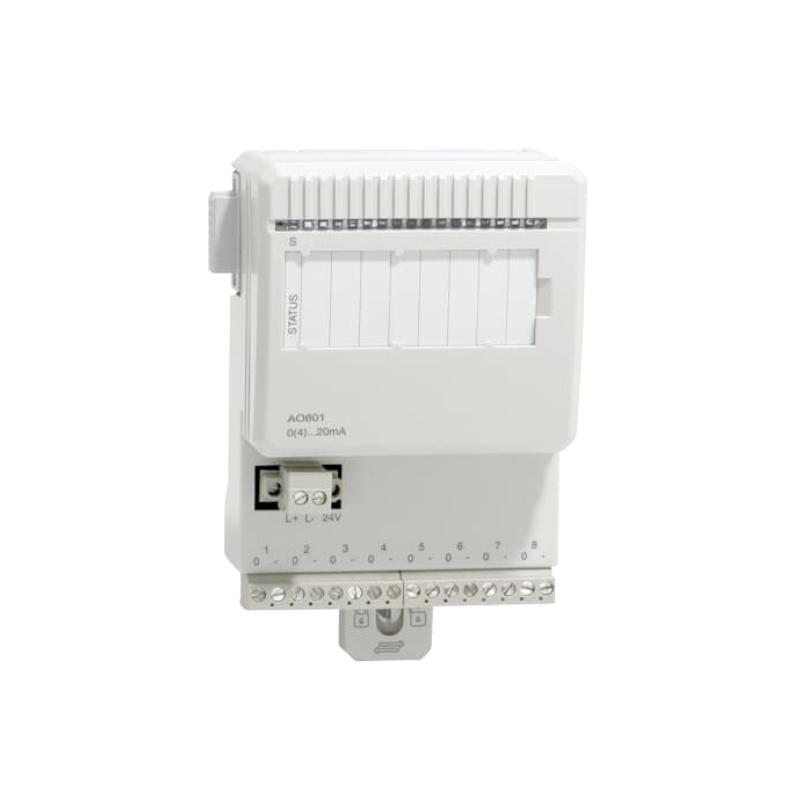

1. What is the primary function of the ABB AO801 3BSE020514R1 Analog Output Module?

   • The AO801 module provides high-precision analog output signals to control devices like valves, motors, and actuators in industrial automation systems.

2. How many channels does the AO801 module support?

   • The AO801 supports up to 8 analog output channels, allowing for control of multiple devices simultaneously.

3. What is the output range of the AO801 module?

   • The module offers an output range of 4–20 mA, which is commonly used for controlling analog devices in industrial applications.

4. What industries can benefit from using the AO801 module?

   • The AO801 module is suitable for industries such as power generation, chemical processing, oil & gas, manufacturing, and water treatment, where precise control of analog actuators is required.

5. What is the temperature range for the AO801 module?

   • The AO801 module can operate in temperatures ranging from -20°C to 60°C, making it suitable for a variety of industrial environments.

6. How does the AO801 module integrate into control systems?

   • The module is designed for seamless integration with the ABB 800xA Distributed Control System, allowing for efficient operation within existing system architectures.

7. Can the AO801 module be used for safety-critical applications?

   • Yes, the module’s high accuracy and reliability make it suitable for use in safety-critical applications, such as controlling safety valves in power plants and chemical reactors.

8. How does the module ensure reliability in harsh industrial environments?

   • The AO801 module is built with rugged construction, ensuring that it can withstand mechanical stress, vibrations, and harsh environmental conditions commonly found in industrial settings.

9. Can the module be used for both continuous and discrete control systems?

   • Yes, the AO801 module provides continuous analog output, which is suitable for both continuous and discrete control applications in industrial systems.

10. What communication protocols are supported by the AO801 module?

    • The AO801 module integrates seamlessly into the ABB 800xA Distributed Control System, which supports standard industrial communication protocols for easy integration with other system components.
