Product Overview
Engineered for Safe and Convenient Probe Installation

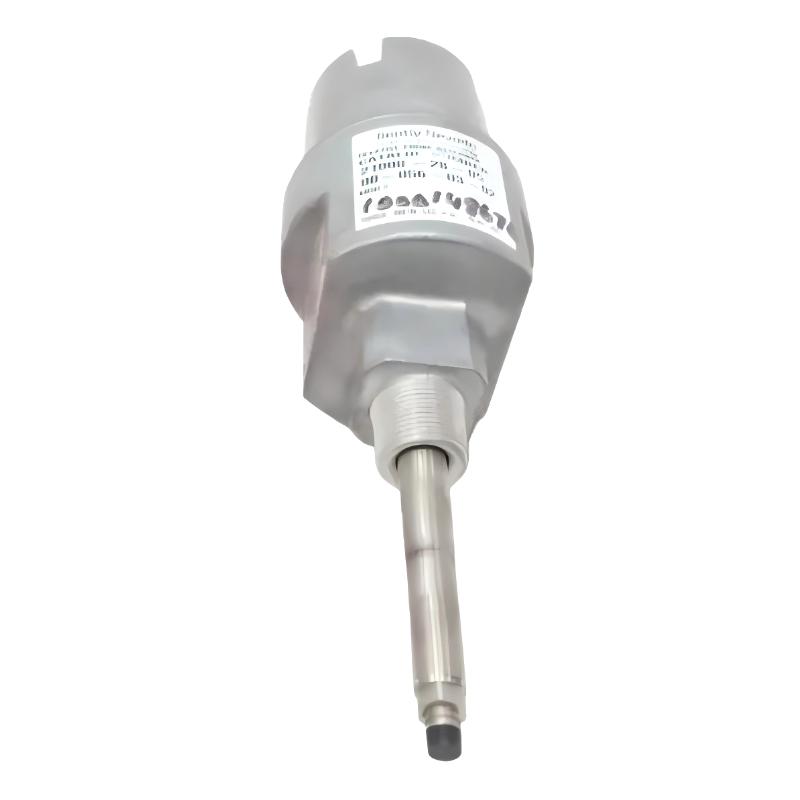

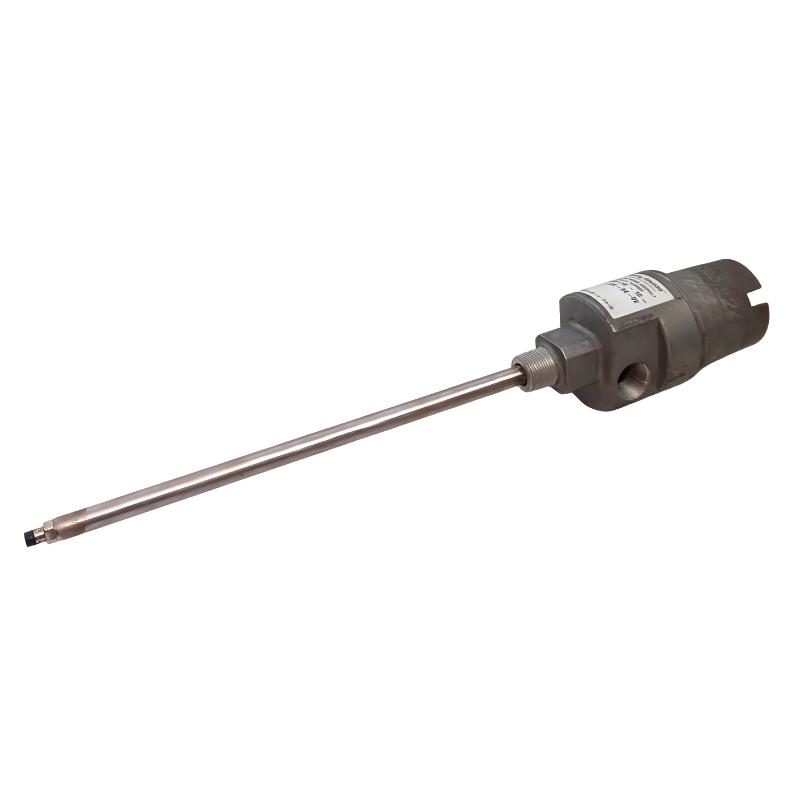

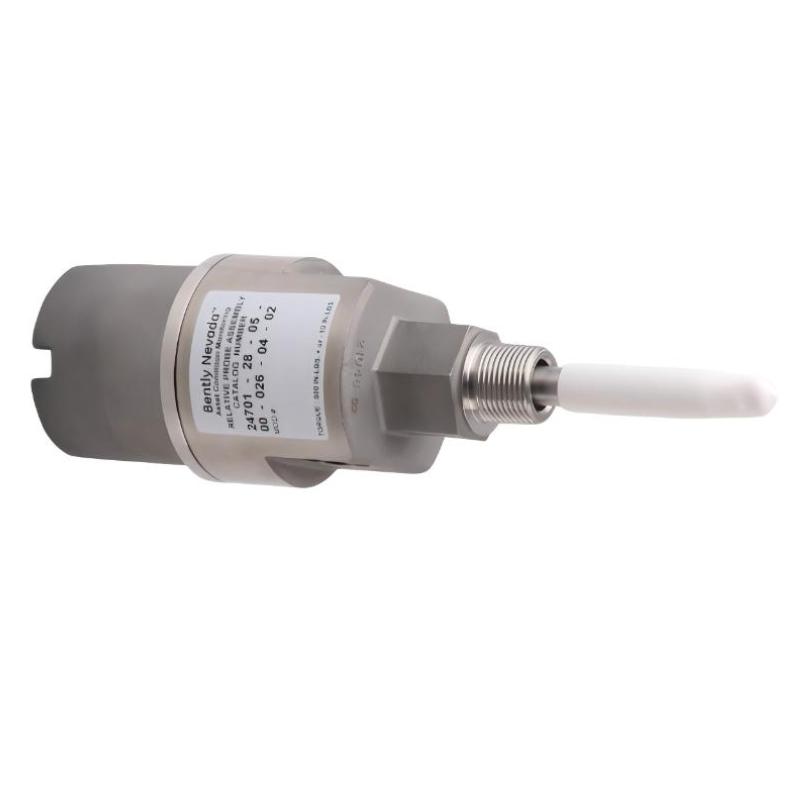

The 24701-16-10-00-083-00-01 configuration incorporates a 3300 XL 8 mm proximity probe, a 1.0 m probe cable, an 8.3-inch probe penetration, no standoff adapter, no conduit fittings, and an as-cast mounting configuration. The housing includes a threaded dome cover, O-rings, probe sleeve, and thread seal, allowing easy external access for probe gap adjustment and maintenance.
By protecting the probe assembly from harsh operating conditions while simplifying routine servicing, the housing supports reliable vibration and shaft position monitoring for critical rotating equipment.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 24701-16-10-00-083-00-01 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Material | Stainless Steel |
| Probe Included | 3300 XL 8 mm Proximity Probe |
| Probe Cable Length | 1.0 m (39 in) |
| Standoff Adapter | None (Option 00) |
| Probe Penetration | 8.3 in (211 mm) |
| Fittings | None |
| Mounting Thread | As-cast without threads (Option 01) |
| Enclosure Type | External Probe Housing |
| Compliance | API 670 |
| Hazardous Area Capability | CSA-approved configurations available |
| Housing Components | Dome cover, probe sleeve, O-rings, thread seal |
| Dimensions | Probe penetration approximately 211 mm; housing dimensions vary by configuration |
| Weight | Approx. 1.8 kg |
Typical Applications
Built for Critical Rotating Equipment
The 24701-16-10-00-083-00-01 is widely installed on machinery requiring continuous shaft vibration and position monitoring.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, generators |
| Oil & Gas | Compressors, centrifugal pumps |
| Petrochemical | Process compressors and turbines |
| Chemical Processing | Rotating production equipment |
| Heavy Manufacturing | Motors, gearboxes, large fans |
Typical monitoring applications include:
-
Radial shaft vibration measurement
-
Shaft position monitoring
-
Rotor displacement measurement
-
Keyphasor® installations
-
Continuous machinery protection
-
Predictive maintenance programs
Key Advantages
Rugged Stainless Steel Construction
The stainless steel housing offers excellent resistance to corrosion, moisture, and harsh industrial environments, making it suitable for long-term field operation.
Simplified Maintenance
The externally mounted design allows technicians to adjust probe gap or replace the probe without opening the machine casing, reducing maintenance downtime.
API 670 Compliance
Designed to meet API 670 recommendations for externally mounted proximity probe housings, the assembly supports reliable machinery protection installations.
Flexible System Integration
The housing is compatible with Bently Nevada 3300 XL proximity transducer systems, allowing seamless integration into existing vibration monitoring installations.
Long-Term Equipment Protection
By securely housing the proximity probe and associated components, the assembly helps maintain stable measurement performance while protecting against environmental contamination.
Technical FAQs
Q1: What is the primary function of the 24701-16-10-00-083-00-01?
It provides a protected external mounting solution for a proximity probe while allowing convenient access for adjustment and replacement.
Q2: Which proximity probe is supplied with this configuration?
This model includes a 3300 XL 8 mm proximity probe.
Q3: What is the probe cable length?
The supplied probe includes a 1.0-meter (39-inch) cable.
Q4: What does the 083 option represent?
It specifies a probe penetration length of 8.3 inches.
Q5: Does this model include a standoff adapter?
No. This configuration is supplied without a standoff adapter.
Q6: Are conduit fittings included?
No. The 00 fitting option indicates that no conduit fittings are supplied with this assembly.
Q7: What material is used for the housing?
The housing is manufactured from stainless steel for excellent corrosion resistance.
Q8: Is this housing suitable for hazardous locations?
CSA-approved explosion-proof versions are available for applicable configurations, depending on the ordering code.
Q9: Which machinery commonly uses this housing assembly?
It is widely installed on turbines, compressors, pumps, generators, and other critical rotating equipment.
Q10: Why choose an external probe housing?
An external housing allows probe servicing and gap adjustment without dismantling machine components, reducing maintenance time and improving operational efficiency.
